CORAB ENCOR - Mounting EC 370;375 Wp Modules; Short Side Mounting; Long Side Mounting; Screw Mounting

Installation manual
and safe operation instructions
of photovoltaic modules ENCOR
[
Does not apply to BIFACIAL modules]
Page
6
of
9
corab.pl

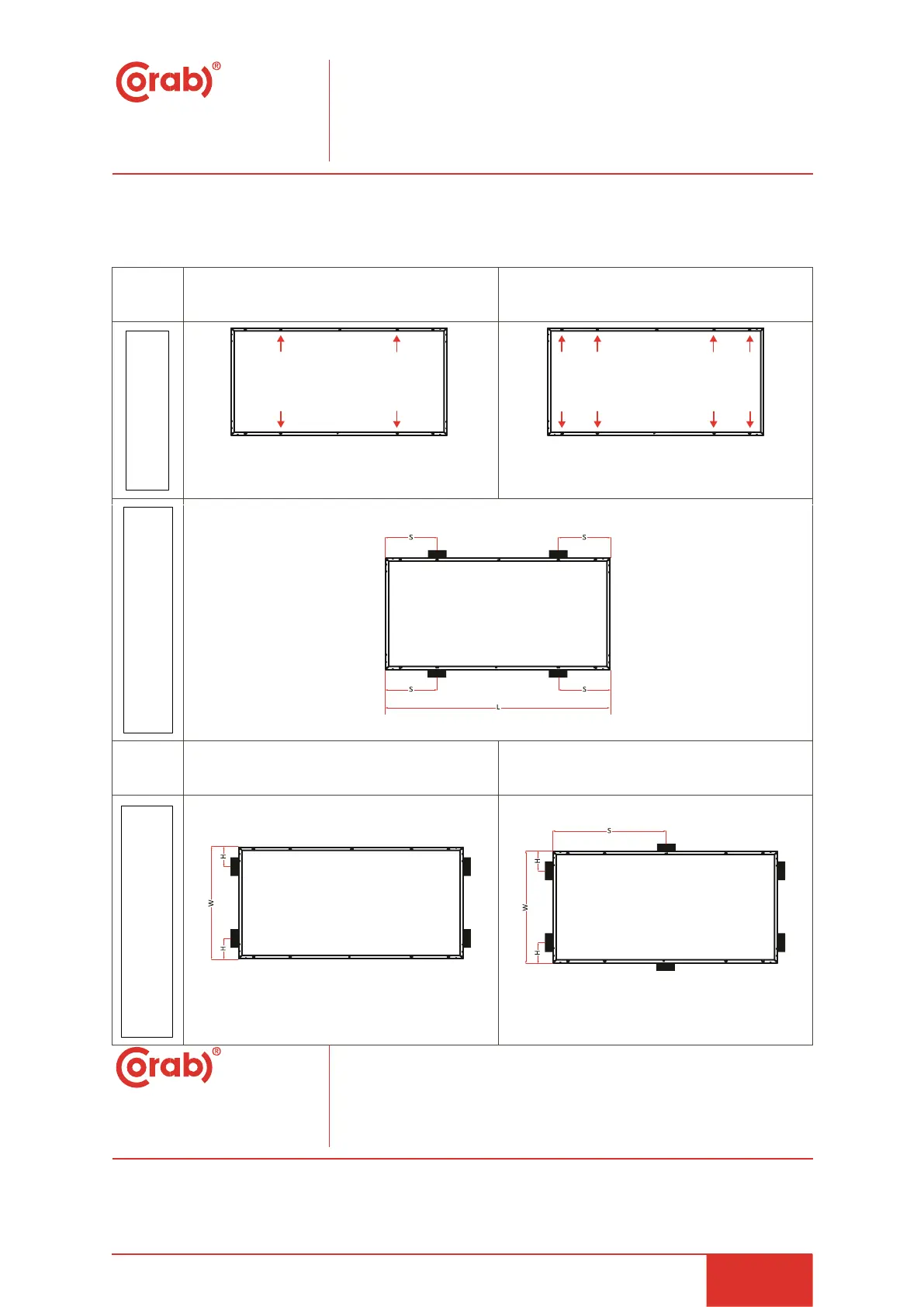

Mounting of modules EC 370M-6-120FB 370Wp and EC 375M-6-120B 375Wp
Clamp position /
Installation
method
Test load: positive pressure 2400 Pa/negative pressure 2400 Pa
Design load: positive pressure 1600 Pa/negative pressure 1600 Pa
Test load: positive pressure 5400 Pa/ negative pressure 2400 Pa
Design load: positive pressure 3600 Pa/ negative pressure 1600 Pa
(1/4L-50)<S<(1/4L+50)
Test load: positive pressure 1600 Pa/ negative pressure 1600 Pa
Design load: positive pressure 1067 Pa/ negative pressure 1067 Pa
Test load: positive pressure 5400 Pa/ negative pressure 2400 Pa
Design load: positive pressure 3600 Pa/ negative pressure 1600 Pa
0<H<1/4W
(1/2L-50)<S<(1/2L+50)
0<H<1/4W
Fasten to the long side
/ Mounting method
with screws
.
Fasten to the long side./
Mounting method
with terminal and
middle clamps.
Fasten to the short side
/ Mounting method
with terminal and middle
clamps.
