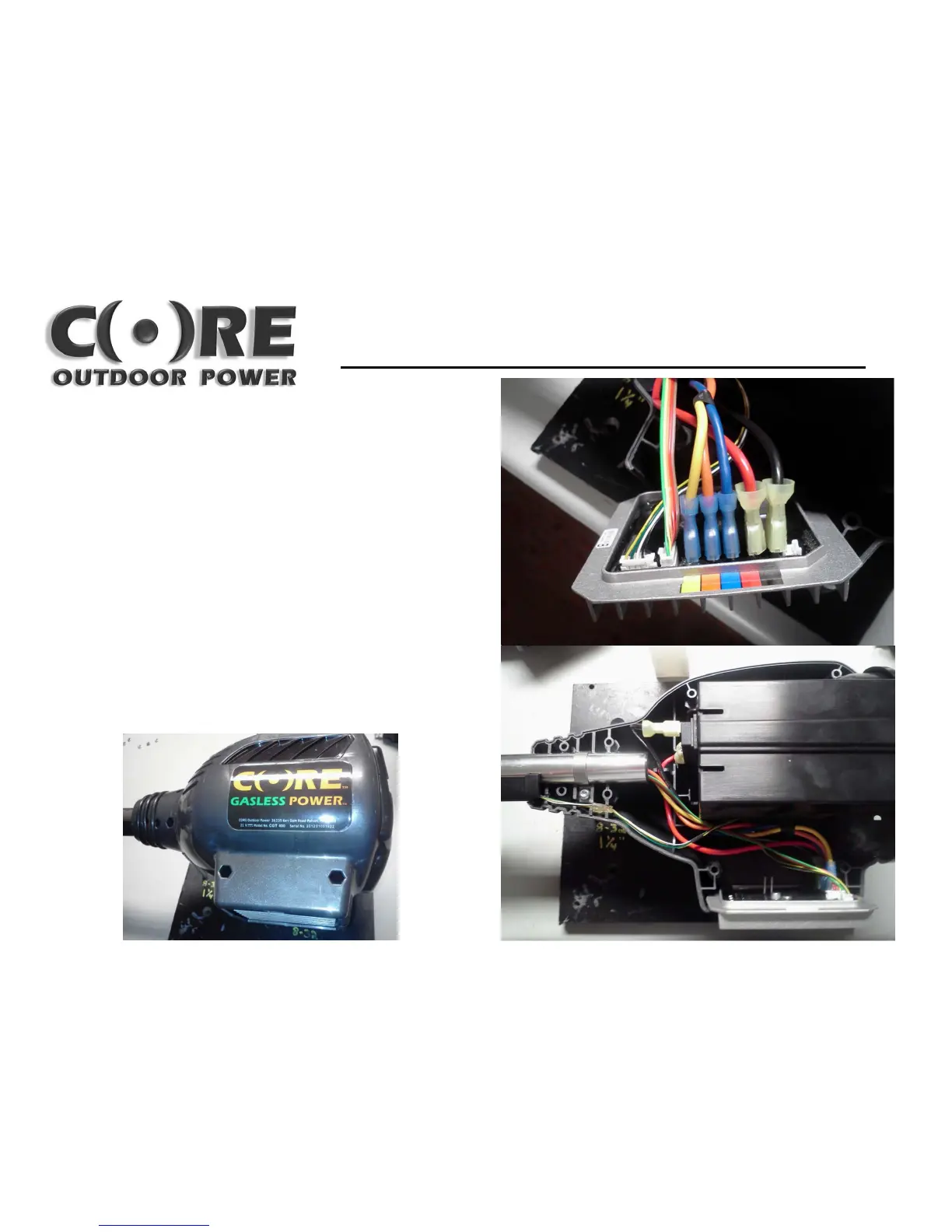

Core CGT 400 Service Guide

HARDWAREANDPARTSREQUIRED:
(8)8‐32STANDARDNUTS
(4)8‐321¼”BOLTS
(4)8‐321¾”BOLTS
TOOLSNEEDED:
ELECTRIC/SCREWGUNW/T20BIT‐ NEEDLENOSEPLIERS
1. PlugWiresintoControllerasShowninPicture1andSlidecontroller
intoslotinPowerHousing
2. RouteWiresthroughPowerHousingasshowninPicture2.Make sure
WiresareclearofPowerHousingAreasthatmayleadtopinching.
3. PlacePowerSleeveintoPowerHousingandloweroppositePower
Housingonasshowninpicture3.MakesureController,Wiresand
PowerSleeveareallalignedinthererespectiveslots.
4. Boltthehousingstogether,startingwiththe1¼”boltsinthefront
fourlocations,andfinishingwiththeremainingfourintherear.
PowerHousingAssembly/ControllerInstall
1.
2.
3.

Core CGT 400 Specifications

General

Brand	Core
Model	CGT 400
Category	Trimmer
Language	English
