The Core Innovations CLT1564 is a 15.6" laptop designed for everyday use, running on Windows™ 10 S. This operating system is optimized for security and performance, exclusively running apps from the Microsoft™ Store. Users have the option to switch out of S mode if they need to install applications not available in the Microsoft™ Store, though this is a one-way process.

Function Description:

The CLT1564 serves as a portable computing device, suitable for tasks such as web browsing, document creation, media consumption, and light productivity. Its Windows 10 S operating system provides a streamlined and secure experience, with applications displayed as "magnets" on the Start menu for easy access. The laptop features a virtual assistant, Cortana™, which helps with reminders, tracking, emails, texts, calendar management, list creation, fact-finding, and opening applications. Multitasking is supported through multiple desktops, allowing users to organize files and documents efficiently. The Action Center provides a centralized location for notifications and quick access to customized settings like Bluetooth®, Wi-Fi®, location, nightlight, and battery saver.

Important Technical Specifications:

Processor: Intel® Celeron® N3350
Operating System: Windows™ 10 Home in S Mode
Storage: 3GB RAM, 64GB Storage
Display: 15.6" IPS Screen (1366x768)
Network: Wi-Fi® Ready: 802.11b/g/n (supports 2.4GHz Wi-Fi® networks only)
Headphone Output: 3.5mm Headphone Jack
USB Ports: 2x USB Inputs
HDMI®: Mini HDMI® Output
Bluetooth®: Compatible with Bluetooth®
Camera: 0.3 MP Front Camera
Power: Rechargeable Li-Polymer Battery
DC IN: 12V/2A
Speakers: 2x1W Speakers
Charging: 12V = 2A

Usage Features:

Power Button: Turns the device on/off, sets it to Sleep, or wakes it from Sleep.
Front Camera: For taking photos and videos.
Touchpad: For cursor navigation.
Keyboard: For typing, with indicators for Power, Caps Lock, and Num Lock.
Microphone: Transmits audio signals.
Charging Indicator: Red light when connected to a power adapter.
USB Input: For connecting external USB devices.
Mini-HDMI® Output: For connecting to external monitors, TVs, or other HDMI®-enabled devices.
Headphone Jack: For transmitting audio to speakers or headphones.
Micro SD Card Slot: Supports Micro SD format up to 128GB for expanded storage.
Speakers: Built-in 2x1W speakers for audio playback without external devices.
Getting Started: Requires an initial 6-hour charge. Turning on involves holding the power key for two seconds. Wi-Fi® connection and user account creation are part of the initial setup.
Windows™ 10 S Start Menu: Provides quick access to applications. Requires a Microsoft™ account for full functionality of pre-installed apps.
Downloading Apps: Apps can be downloaded from the Microsoft™ Store. A Microsoft™ account is required for app downloads.
Menu Bar: Located at the bottom of the screen, offering quick access to PC settings, Documents, Pictures, Settings, and Power options (Sleep, Shutdown, Restart).
Search Bar: Found in the Start Menu, used to find documents, files, or perform web searches with an Internet connection.
Action Center: Displays notifications and provides quick access to settings like Bluetooth®, Wi-Fi®, location, nightlight, network, connect, battery saver, and airplane mode.
Battery Status: Viewable on the Lock Screen and Desktop Taskbar.
Connecting to Devices: Supports USB cable connections and wireless connections via Bluetooth®/Wi-Fi®.
- Bluetooth® Pairing: Turn on Bluetooth® device, open Action Center, select "Bluetooth®" and "Go To Settings," then follow on-screen instructions.
- Printer/Scanner Setup: Access "All Settings" in Action Center > Devices.
- Project to a Second Screen: Connect via HDMI® for movies, multiple apps, or presentations.
- Connect to a Wireless Display: Open Action Center, click "Connect," and follow on-screen instructions.
Personalizing Your Laptop:
- Create Tiles: Pin favorite apps and websites to the Start Screen.
- Customize Tiles: Move, resize, or unpin tiles from the Start Screen.
- Background and Color: Customize Start Screen colors and background via Action Center > "All Settings" > "Personalization."
- Lock Screen: Personalize lock screen options via Action Center > "All Settings" > "Personalization" > "Lock screen."
- Desktop: Customize theme, background, and colors via Action Center > "Personalization."
- Notifications and Actions: Manage notifications and app notifications on the lock screen via Action Center > "All Settings" > "System" > "Notifications and Actions."
Network: Connect to Wi-Fi® Access Points or hotspots. Turn Wi-Fi® on/off via Action Center. Forget known Wi-Fi® networks.
Virtual Private Network (VPN): Built-in support for VPN. Connect via Action Center > "VPN."
User Accounts: Choose between a Microsoft™ account (for Windows™ Store and OneDrive™ integration) or a local account. Manage accounts via Action Center > "All Settings" > "Accounts" or "Sign-in Options."
Change Password: Via Action Center > "All Settings" > "Accounts" > "Sign-in Options."
Lock or Sign Out: Automatically locks when idle, or manually via the Start Screen.
Ease of Access: Customize accessibility settings (narrator, magnifier, high contrast, keyboard options) via Action Center > "All Settings" > "Ease of Access."
Laptop Settings: Manage display, typing, power, sleep, Bluetooth®, device information, user accounts, privacy, network connections, time and language, and update/security settings.

Maintenance Features:

Device Protection: Protect from impact, bumps, and falls.
Environmental Conditions: Avoid extreme cold, heat, humidity, dust, and direct sunlight.
Magnetic/Static Environments: Avoid strong magnetic and static environments.
Liquid Contact: If exposed to liquid, power off immediately and allow to dry completely before restarting.
Cleaning: Use a dry, soft cloth; avoid chemical cleaning products.
Data Backup: Regularly back up important data and files to prevent loss.
Disassembly: Do not disassemble the device, as this will void the warranty.
Refresh Device: In Action Center > "All Settings" > "Update and Security" > "Recovery," choose to refresh the device.
Restart Device: In Action Center > "All Settings" > "Update and Security" > "Recovery," choose "Restart Now."

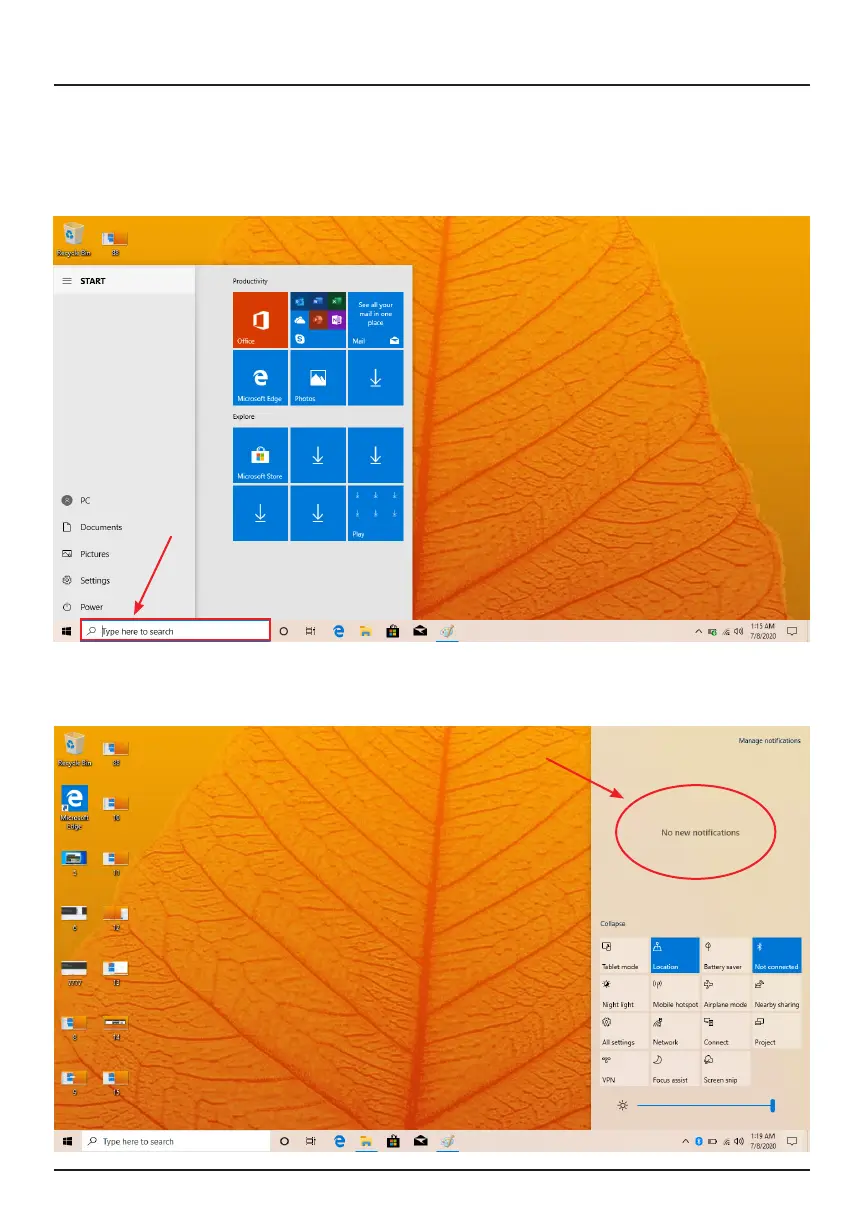

Core CLT1564 - System Navigation and Features; Search Bar and Action Center Usage
