CH1001-A Chiller Operator’s & Installation Manual
© 2002-2010, IMI Cornelius Inc. - 3 - Publication Number: 620914301
The data plate, located next to the junction box, includes the actual voltage, phase, and amerage of the chiller.
CHILLER OPERATION
CONTROL PANEL
See Figure 3.

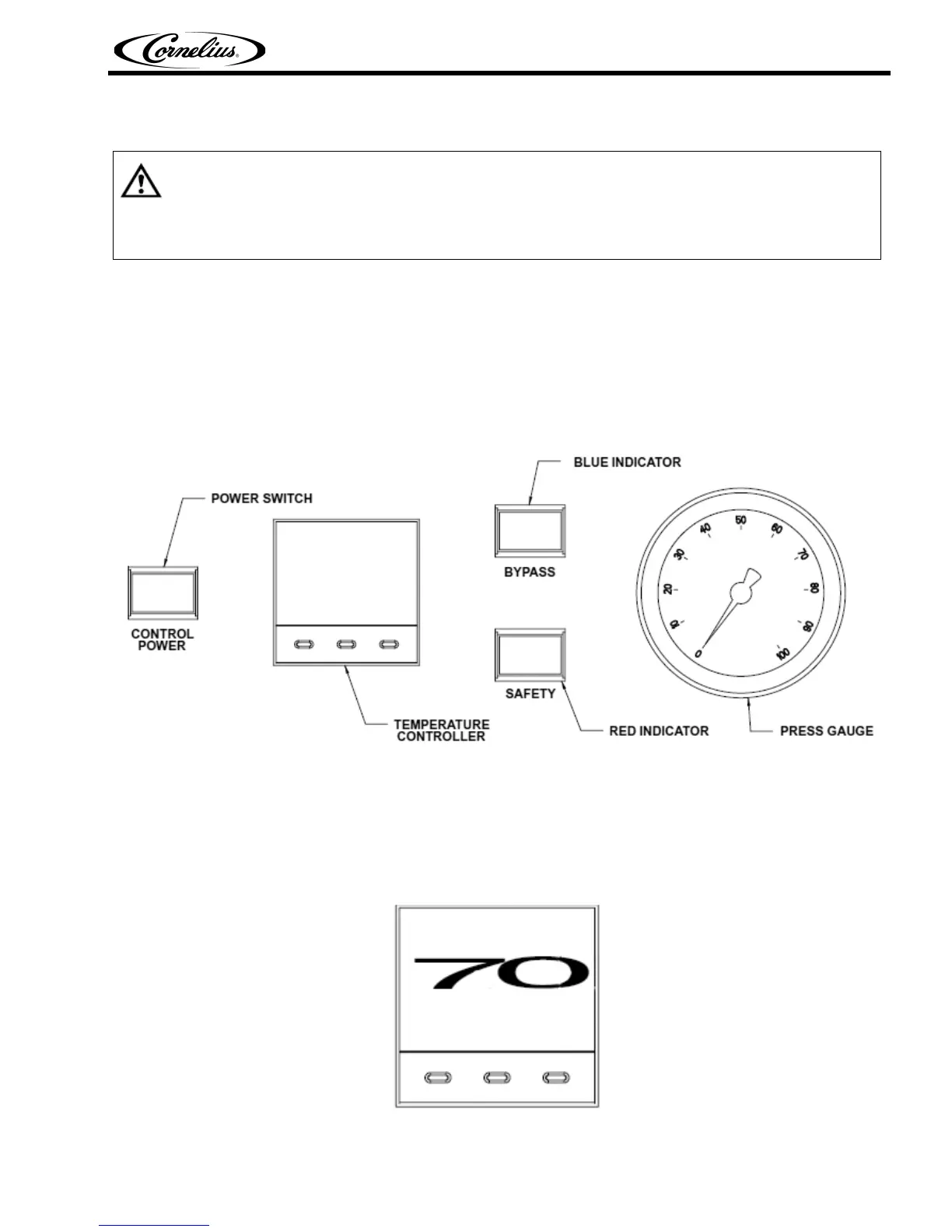

Figure 3. Control Panel
Temperature Controller
The Temperature Controller, shown in Figure 4, uses a PID control algorithm to precisely monitor and control the
process set point temperature. The Unit has a large LED readout that displays temperature. For adjusting set
point and programming options, see section on TEMPERATURE CONTROLLER OPERATION.
Figure 4. CH1001-A Temperature Controller
CAUTION: On three-phase applications, it is important that the rotation of the pump, when
supplied , is correct. Operating the pump in reverse for more than a few seconds will result
in permanent pump damage. When the pump is operating, the shaft rotation must match the
direction indicated on the pump housing. If the rotation is incorrect, reverse two of the three
incoming power leads.
