ED Ice Maker Adapter Kit Installation Instruction Manual
Publication Number: 629087971TENS - 4 - © 2016, Cornelius Inc.

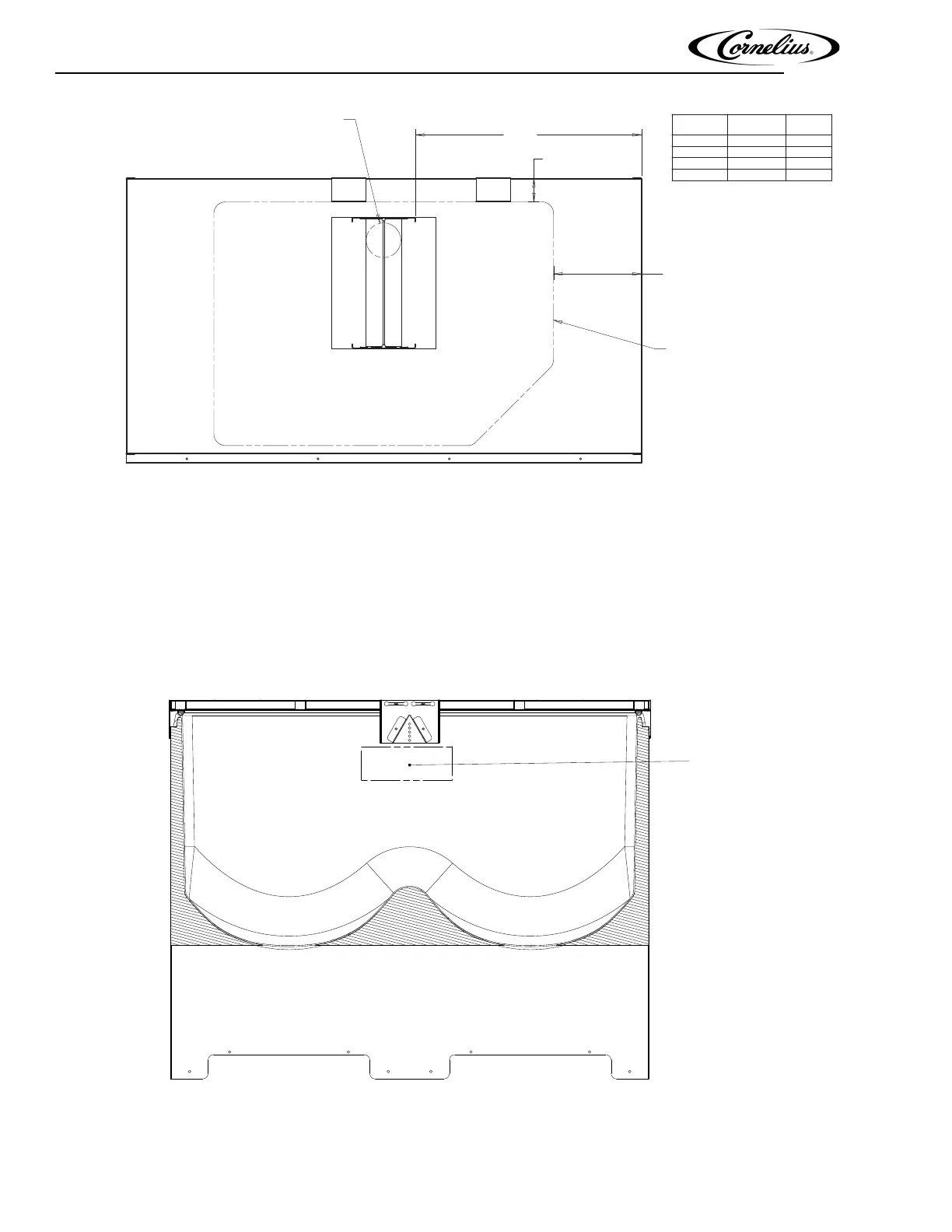

Figure 5. ED/DF300
NOTE: FOR ED/DF300 ONLY - Be sure to center the ice drop opening of the Icemaker directly over the
deflector plate. Failure to do so may result in un-even hopper fill.
10. ED/DF300 only – Tighten the four (4) ice deflector mounting screws.
11. Follow the Icemaker manufacturing instructions to complete the installation of the Icemaker.
12. Install Icemaker bin thermostat just underneath ice deflector, see Figure 6 for location area.
Figure 6.
NOTE: Failure to install a bin thermostat correctly may result in inadequate hopper fill, ice dispense
issues, hopper “ice bridging”, and/or possible damage to the Icemaker.
REF
2-1/16
DIM "B"
REF
REF
19-1/2
DISPENSER ICEMAKER DIM "B"
300 HCD1000RN 9-5/16
300 HCD1400RN 9-5/16
300 HCC1000AW 7-5/8
300 HCC1400AW 9-1/8
REAR OF DISPENSER
LEFT SIDE
OF DISPENSER
TOP VIEW
ICEMAKER MOUNTING DETAILS
THESE DIMENSIONS ARE TO AID IN INSTALLATION. ACTUAL LOCATION MAY VARY.
ICEMAKER BASE
OUTLINE
CENTER ICEMAKER ICE DROP
OVER ICE DEFLECTOR
Area to located sensing line
for the bin thermostat -
typical for all installations
