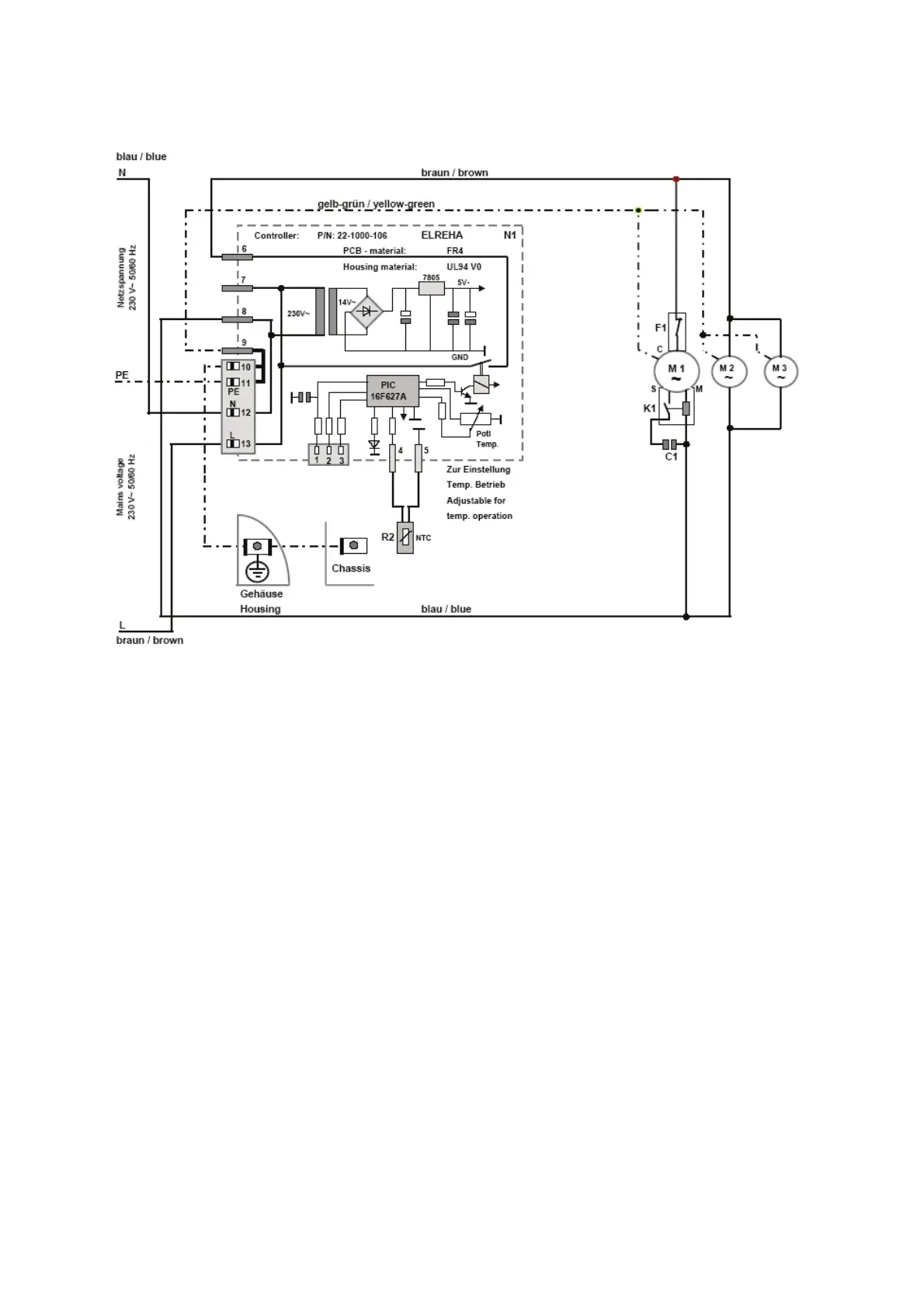

13.2 Circuit Diagram for Linus 60 with electrical Controller
C1 Starting Capacitor N1 Temperature Controller
F1 Thermal Protection R2 Temperature Probe
K1 Starting Relay 11; 12; 13 Mains Voltage Input
M1 Compressor 6; 8 Compressor, Fan
M2 Fan Motor 4; 5 Temperature Probe
M3 Fan Motor
