Cornelius Linus 40 - Page 11

Linus
26

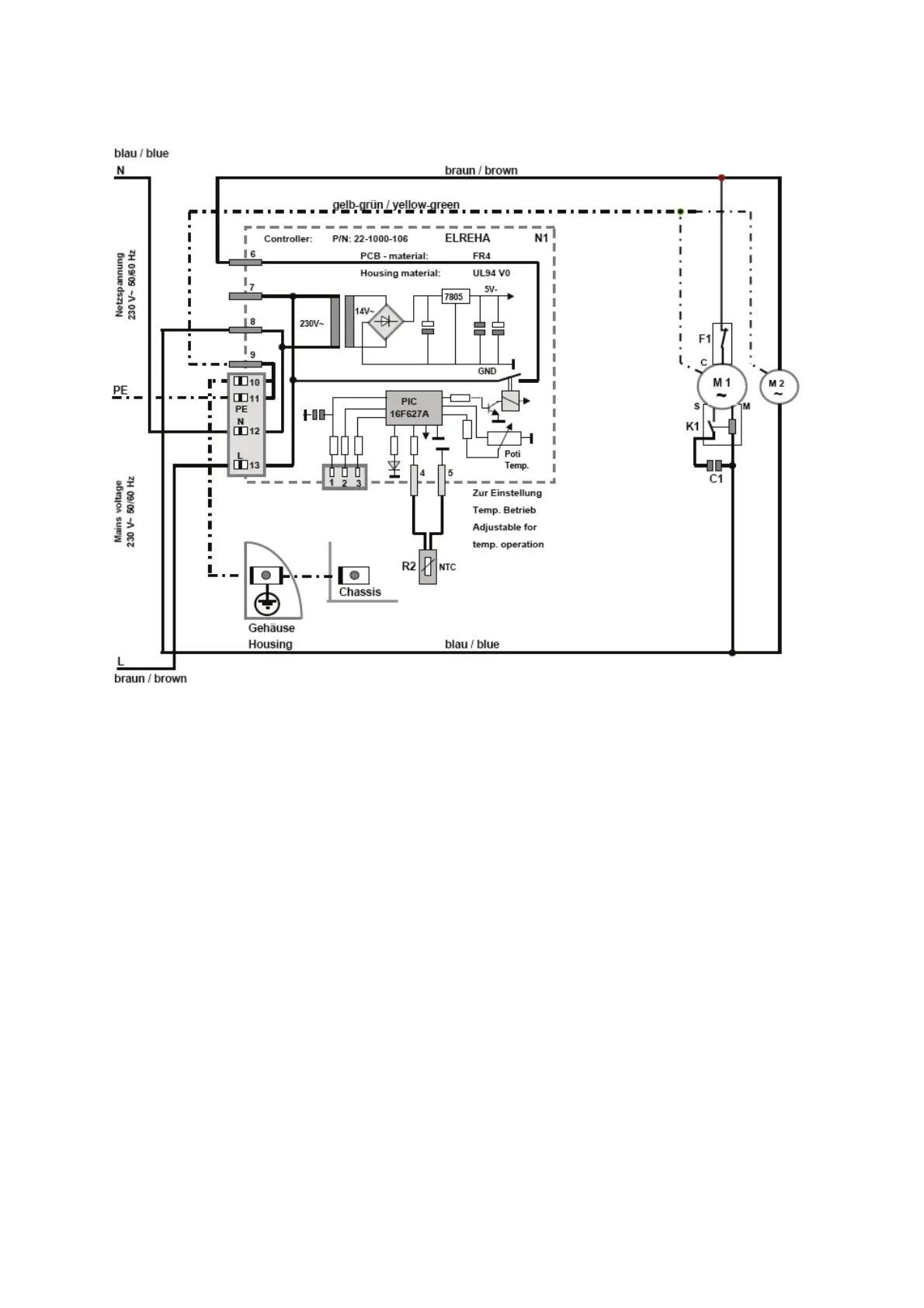

13.3 Circuit Diagram for Linus 80 und 120 with electrical Controller
C1 Starting Capacitor N1 Temperature Controller
F1 Thermal Protection R2 Temperature Probe
K1 Starting Relay 11; 12; 13 Mains Voltage Input
M1 Compressor 6; 8 Compressor, Fan
M2 Fan Motor 4; 5 Temperature Probe
!
!
!
!
!
!
!
!
