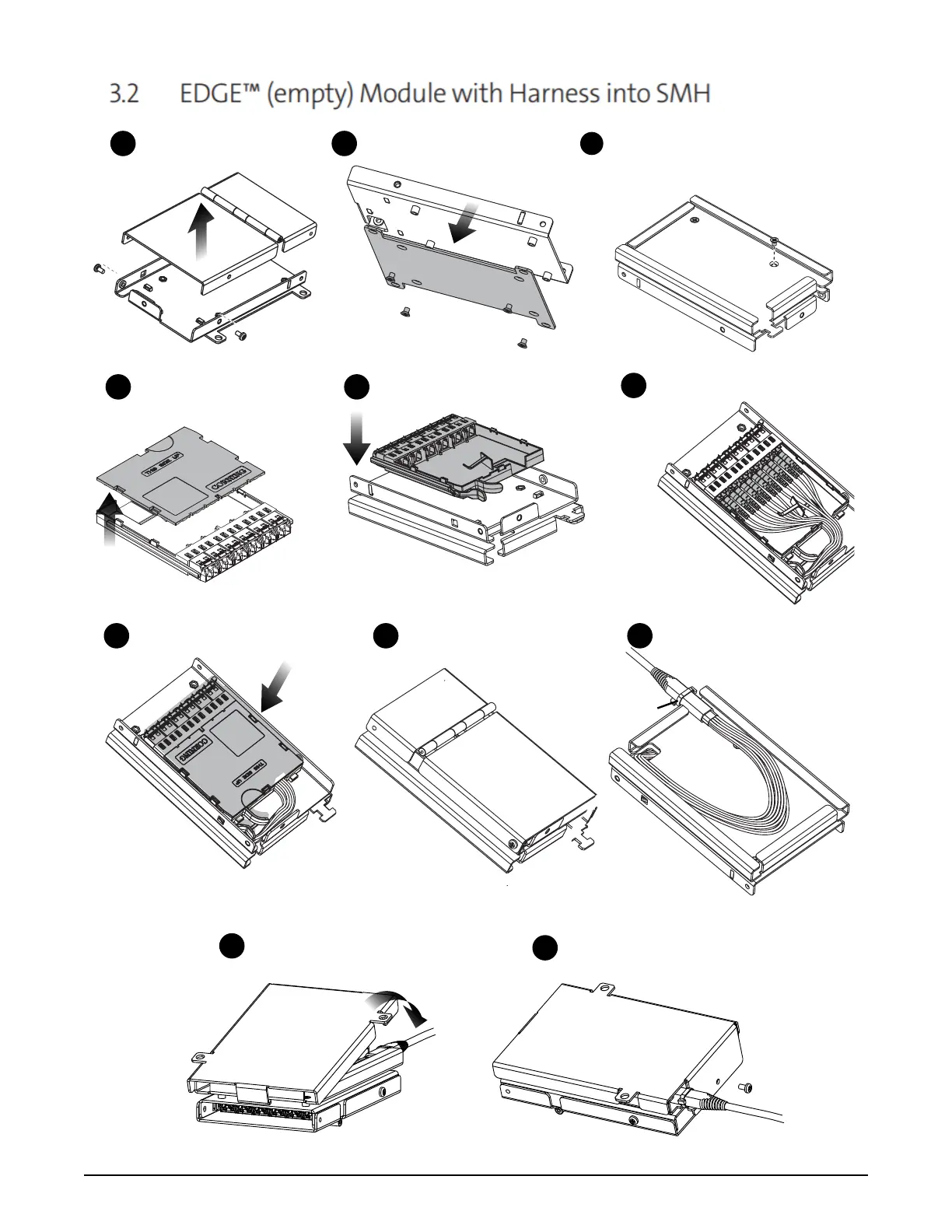

CORNING EDGE - MOUNTING THE CABINET; To a Wall; Underneath a Raised Floor

Standard Recommended Procedure 003-892-AEN | Issue 5 | November 2020 | Page 3 of 4
1
Remove screws.
Lift cover o.
3
Attach slack storage / splice
housing attachment with
screws just removed.
2
Remove screws and
mounting bracket.
4
Remove cover from
empty module.
Replace housing cover
and tighten screws.
8
5
Install empty
module into SMH.
6
Install harness; clean
and mate connectors and
adapters.
7
Replace module cover.
TPA-3859
Store harness slack
in storage attachment.
Secure with cable tie.
9
Install cover on
splice tray.
10
Secure splice tray
with screw.
11
Cable tie
