6. Cable Preparation
6.1 Loose Tube Cable
Access 89 in of cable leaving 4 in of strength member
and 8 in of yarn, if present.
NOTE: Do not expose the bare ber until ready for termination.
6.2 Tight-Buered Cable
Access 56 in of cable leaving 4 in of
strength member and 4 in of yarn, if present.
6.3 Feeder Cable sheath retention strain-relief using the UCC
Step 1: Attach UCC bracket to housing using (2) 6-32 locknuts.
Step 2: Cut strength member(s) ush with outer jacket.
Step 3: Follow instructions provided with UCC kit to secure cable.
6.4 Feeder Cable strength member strain-relief
Follow instructions contained in the OSE-CBL-3X cable entry port
tting for the feeder cable.

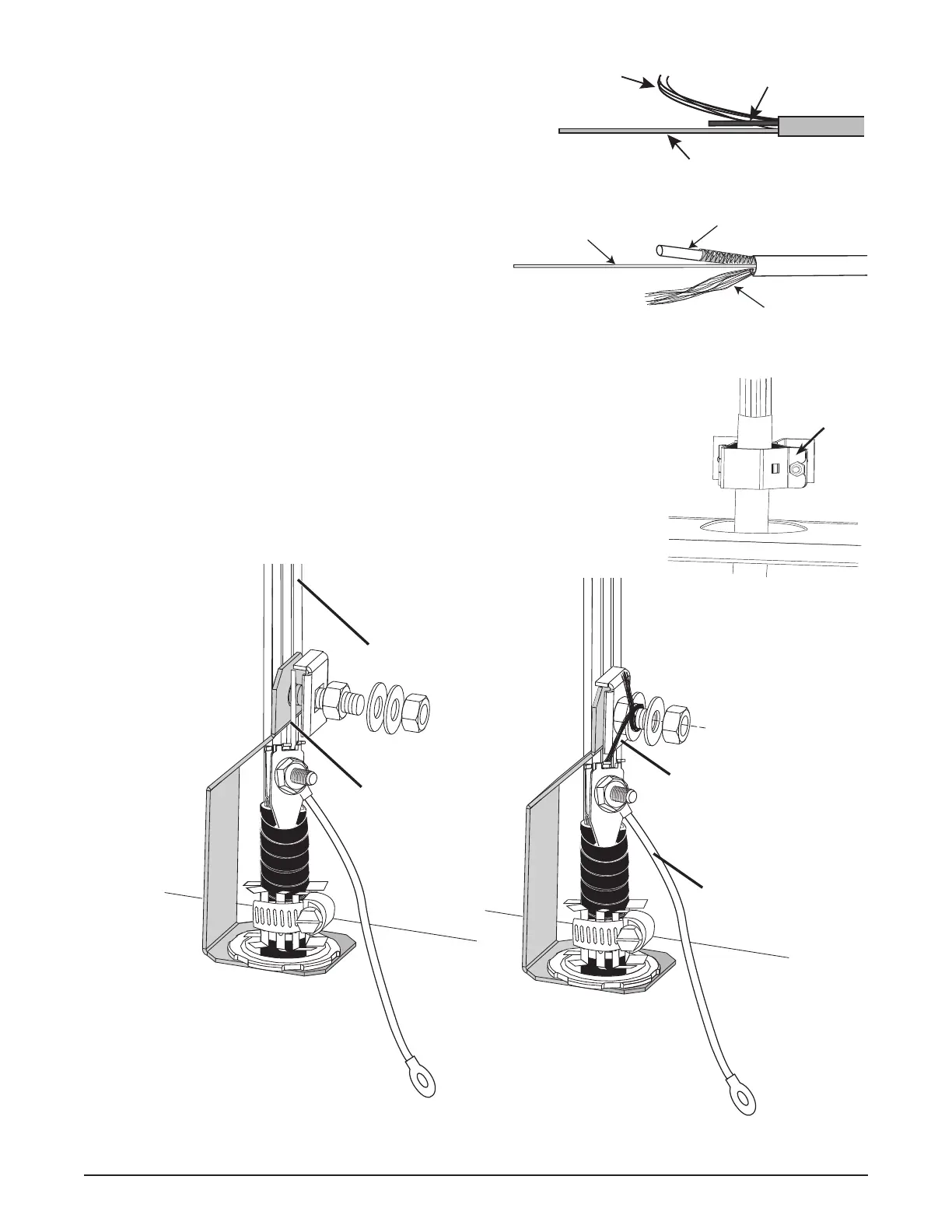

Aramid Yarn (if present)
8 in (20 cm)
Strength Member
4 in (6 cm)
Buffer Tube
89 in (226 cm)
KPA-0178
Central Member:
4 in (10 cm)
Yarn: 4 in (10 cm)
900 micron or Tight-buffered Fibers:
56 in (142 cm)
TPA-6598
UCC Clamp
KPA-2178
Yarn
Ground cable
TPA-6578
Buffer tubes
Central member
