EVOSHAKE 500 v2 - 12 -
Removing the machine from the pallet
If the shaker is equipped with height riser, a stand below the shaker, with the help of additional wheels it is easy to
remove the shaker from the pallet. After that
1. Move the shaker to its working place bearing in mind the site requirements mentioned on page 10.
2. Remove the axel and the wheels.
3. Adjust the four supporting feet to ensure that the shaker stands steadily.
4. Make sure the shaker is levelled. Shaker may be tilted backwards for 2-3 mm.

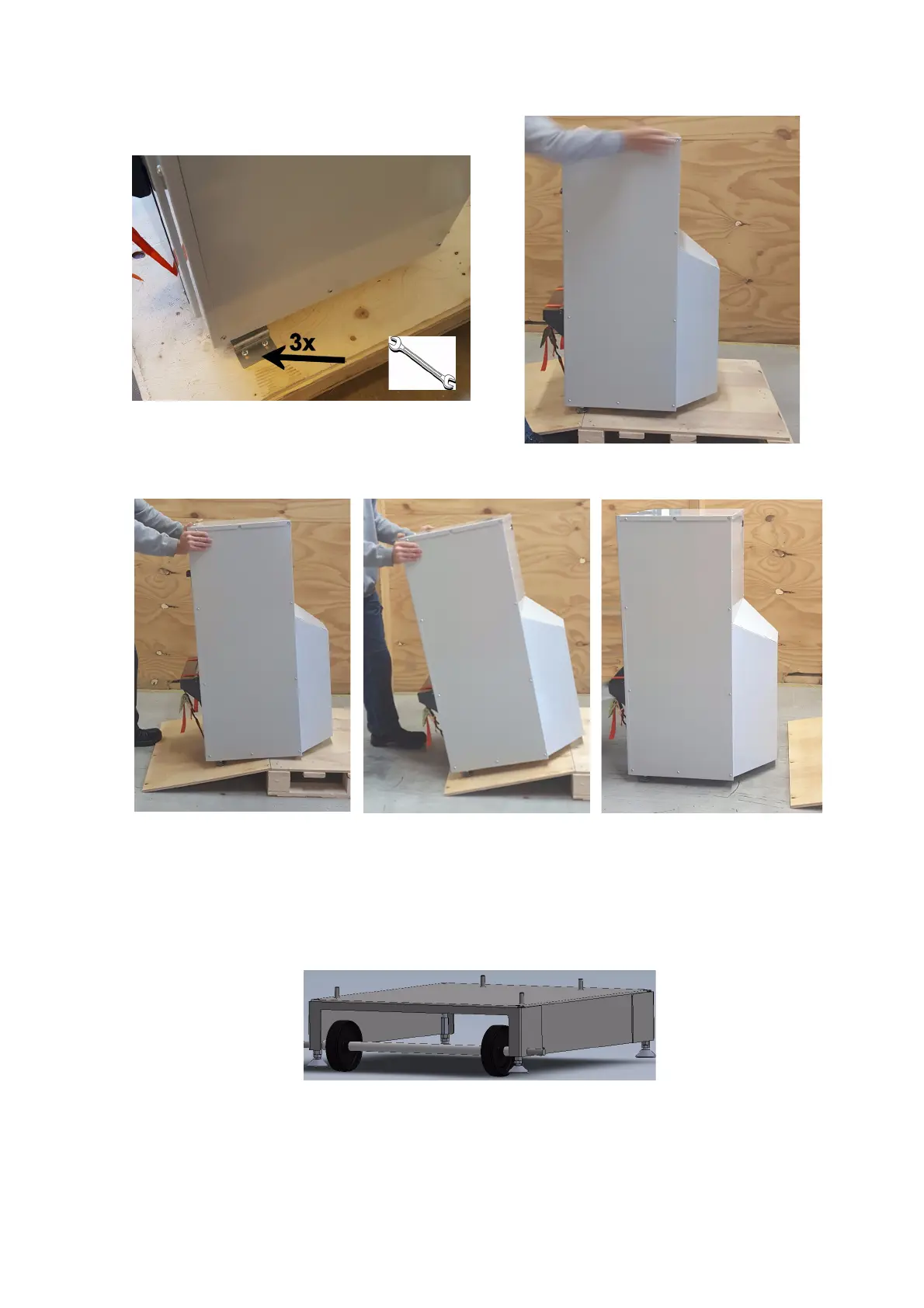

Figure 5-10: Get hold of the front of the machine.
Figure 5-11: Steadily slide the machine
along the ramp.
Figure 5-13: Slide the EVOshake 500 v2
slowly to the ground.
Figure 5-9: Remove the three fixing plates; one on both sides
and one on the back.
Figure 5-12: Tilt the shaker little to ease
the movement on the ramp.
Figure 5-14: The stand with additional wheels (1)
and an axel (2).
1
1
2
