Corsair AX1500i User Manual

3 4
AXi SERIES
™
AXi SERIES
™
Power supply specifications
• Dimensions: 150mm (W) x 86mm (H) x 225mm (L)
• MTBF: 100,000 hours
Package contents
• Corsair AX1500i power supply unit
• Modular cable set
• User manual
• AC power cord
• Cable ties
• Mounting screws
• Corsair case badge
• Carrying bag
• Corsair Link
™
Digital interface cable
• Corsair Link
™
USB cable

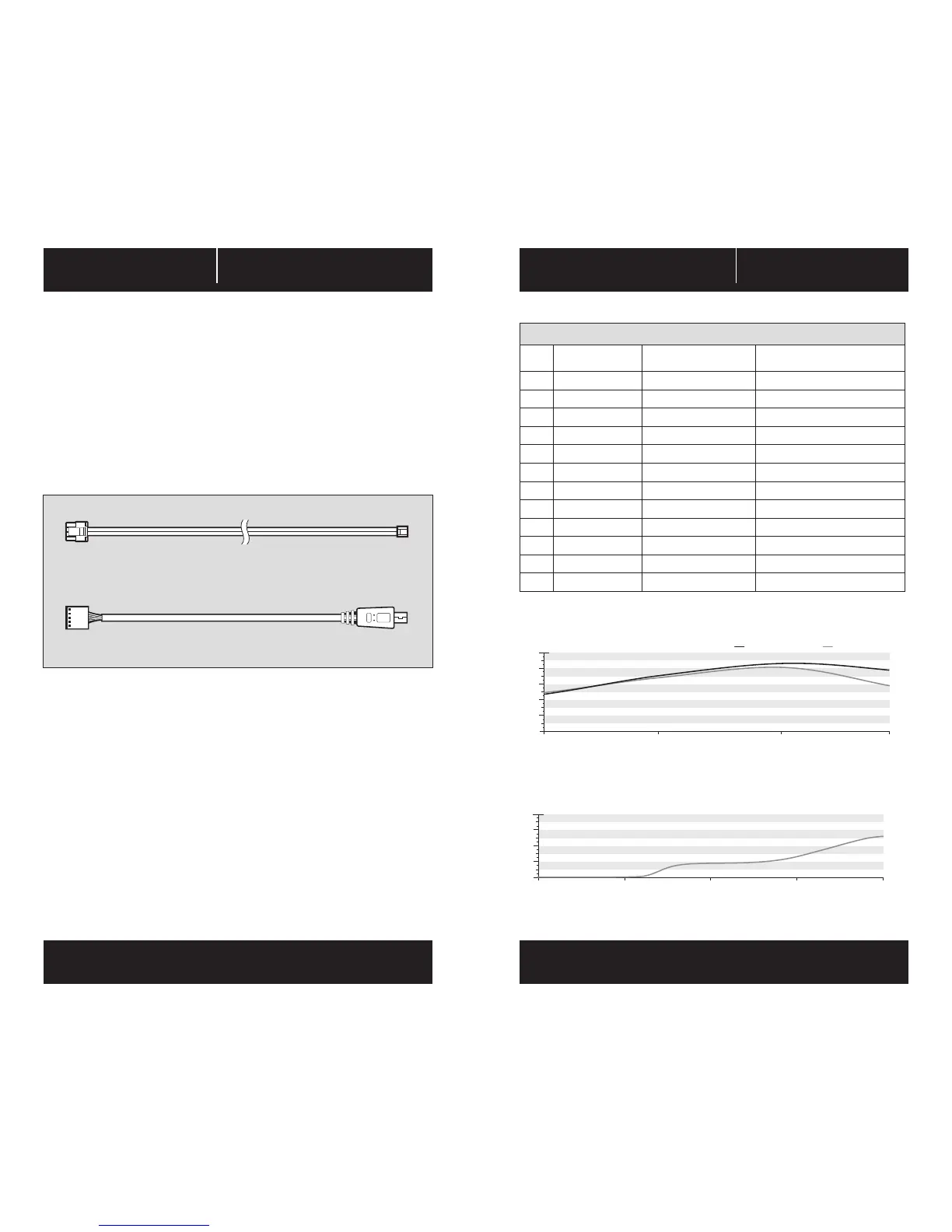

Corsair AX1500i cable configuration
AX1500i
Qty Length Connector/cable
1 710mm ± 10mm 1 ATX cable 24PIN (20+4)
1 650mm ± 10mm 1 EPS/ATX12v cable 8PIN (4+4)
1 800mm ± 10mm 1 EPS/ATX12v cable 8PIN (4+4)
4 650mm ± 10mm 1 PCI-E cable 8PIN (6+2)
2 800mm ± 10mm 1 PCI-E cable 8PIN (6+2)
2 800mm ± 10mm 2 PCI-E cable 8PIN (6+2)
3 800mm ± 10mm 4 SATA cable (4 SATA)
2 850mm ± 10mm 4 SATA cable (4 SATA)
3 750mm ± 10mm 4 Peripheral cable (4PIN)
2 101mm ± 5mm 1 Floppy drive cable (4PIN)
1 800mm ± 10mm 1 PMBUS cable (4PIN)
1 800mm ± 50mm 1 USB cable (9PIN)
Corsair AX1500i power supply eciency
INPUT Vac INPUT Vac
94%
96%
System load
86%
88%
90%
92%
10
%5
0% 100%20%
% Eciency
Fan noise (db)
40
System load
0
10
20
30
0% 50% 75%100%25%
Corsair AX1500i power supply fan noise curve
INPUT Vac INPUT Vac
94%
96%
System load
86%
88%
90%
92%
10%50% 100%20%
% Eciency
Fan noise (db)
40
System load
0
10
20
30
0% 50% 75
%1
00%25%
Corsair Link
™
Digital Interface Cable
Corsair Link
™
USB Cable

Corsair AX1500i Specifications

General

Efficiency	94 %
Total power	1500 W
Power factor	0.99
Input current	15 A
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Combined power (-12V)	9.6 W
Combined power (+3.3V)	180 W
Combined power (+5Vsb)	17.5 W
Max output current (+12V)	125 A
Max output current (-12V)	0.8 A
Power protection features	Over current, Over voltage, Short circuit, Under voltage
Max output current (+3.3V)	30 A
Max output current (+5Vsb)	3.5 A
Maximum input current (@110V)	+12V, +3.3V, +5V, +5Vsb, -12V A
Power Factor Correction (PFC) type	Active
Fan diameter	140 mm
Fan location	Top
On/off switch	Yes
Product color	Black
Number of fans	1 fan(s)
Cabling type	Fully-Modular
Motherboard power connector	24-pin ATX
Floppy drive power connector	2
Number of SATA power connectors	20
PCI Express power connectors (6+2 pin)	10
Peripheral (Molex) power connectors (4-pin)	12
Purpose	PC
ATX version	2.4
EPS version	2.92
Noise level	- dB
Certification	cTUVus, TÜV, CCC, CE, RCM, CU, KC Mark, FCC
80 PLUS certification	80 PLUS Titanium
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX

Weight and Dimensions

Depth	225 mm
Width	150 mm
Height	86 mm
