Corsair Carbide series User Manual

CARBIDE SERIES
®
SPEC-06
ENGLISH
Table of contents Case specifications
Case specications ........................................................................................................................................................2
Accessory kit contents ..................................................................................................................................................3
Case features ..................................................................................................................................................................4
Removing the side panels ..............................................................................................................................................5
Installing the motherboard ............................................................................................................................................6
Installing HDDs ...............................................................................................................................................................7
Installing SSDs ................................................................................................................................................................8
Installing PSU .................................................................................................................................................................. 9
Installing PCI-e card(s) .................................................................................................................................................10
Removing the front bezel .............................................................................................................................................11
Installing the front I/O connectors ..............................................................................................................................12
Using RGB fan controller .............................................................................................................................................12
Frequently asked questions ........................................................................................................................................13

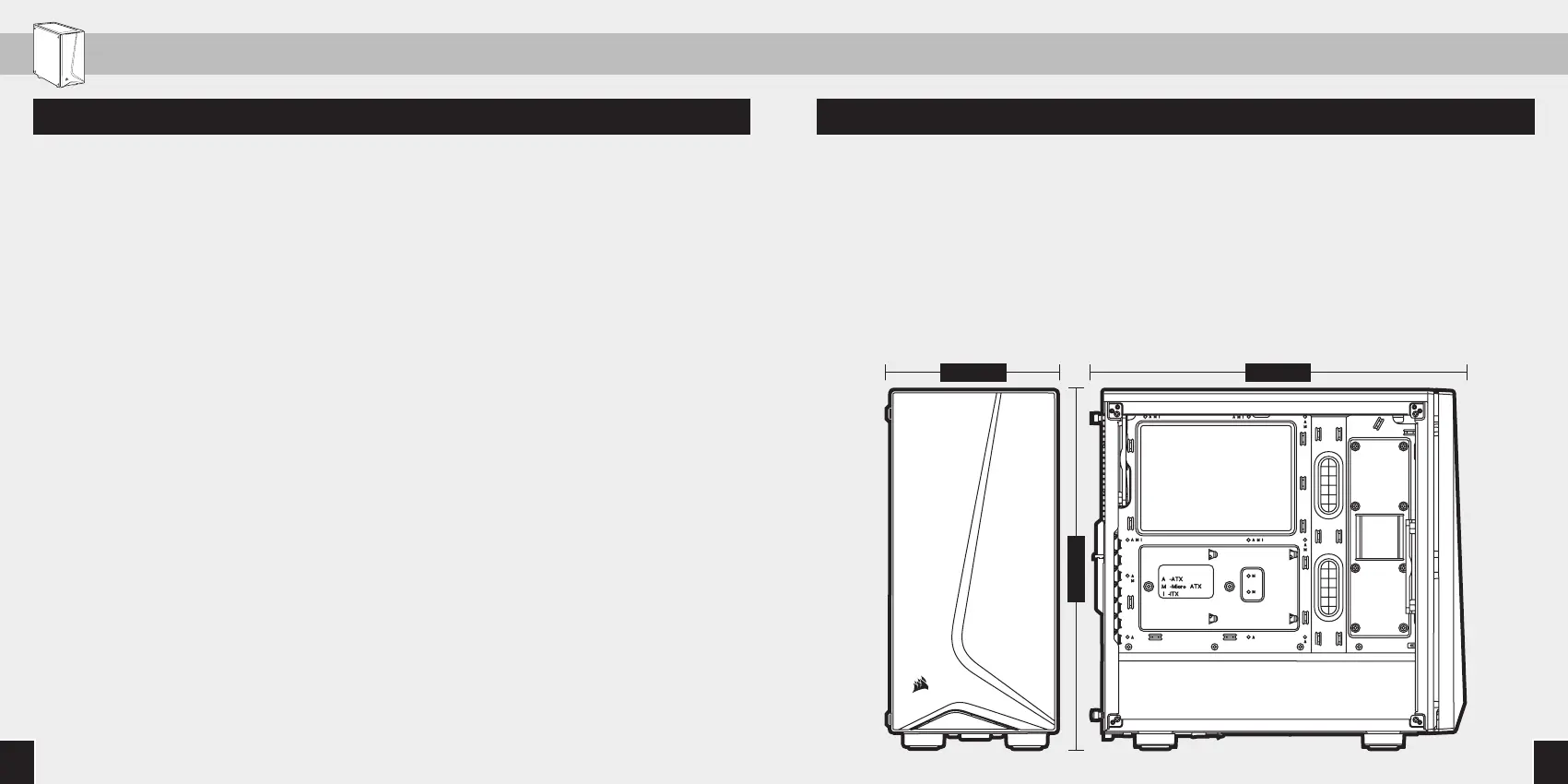

215mm
474mm
455mm
Fan locations
Front ..............................................3 x 120mm / 2 x 140mm
Top ................................................2 x 120mm / 1 x 140mm
Rear .......................................................................... 120mm
Radiator compatibility
Front .......................................... 360mm / 280mm / 240mm
Top ...........................................................................240mm
Rear .......................................................................... 120mm
Length .................................................................... 474mm
Width ....................................................................... 215mm
Height ..................................................................... 455mm
Maximum GPU length ......................................... 370mm
Maximum CPU height ......................................... 170mm
Maximum PSU length ......................................... 180mm
21

Corsair Carbide series Specifications

General

Type	Mid Tower
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Material	Steel, Plastic
Expansion Slots	7
Front I/O Ports	1 x Headphone, 1 x Microphone
Radiator Support	120mm rear
Drive Bays	2 x 2.5", 2 x 3.5"
