Corsair CRYSTAL SERIES 570X User Manual

CRYSTAL SERIES 570X

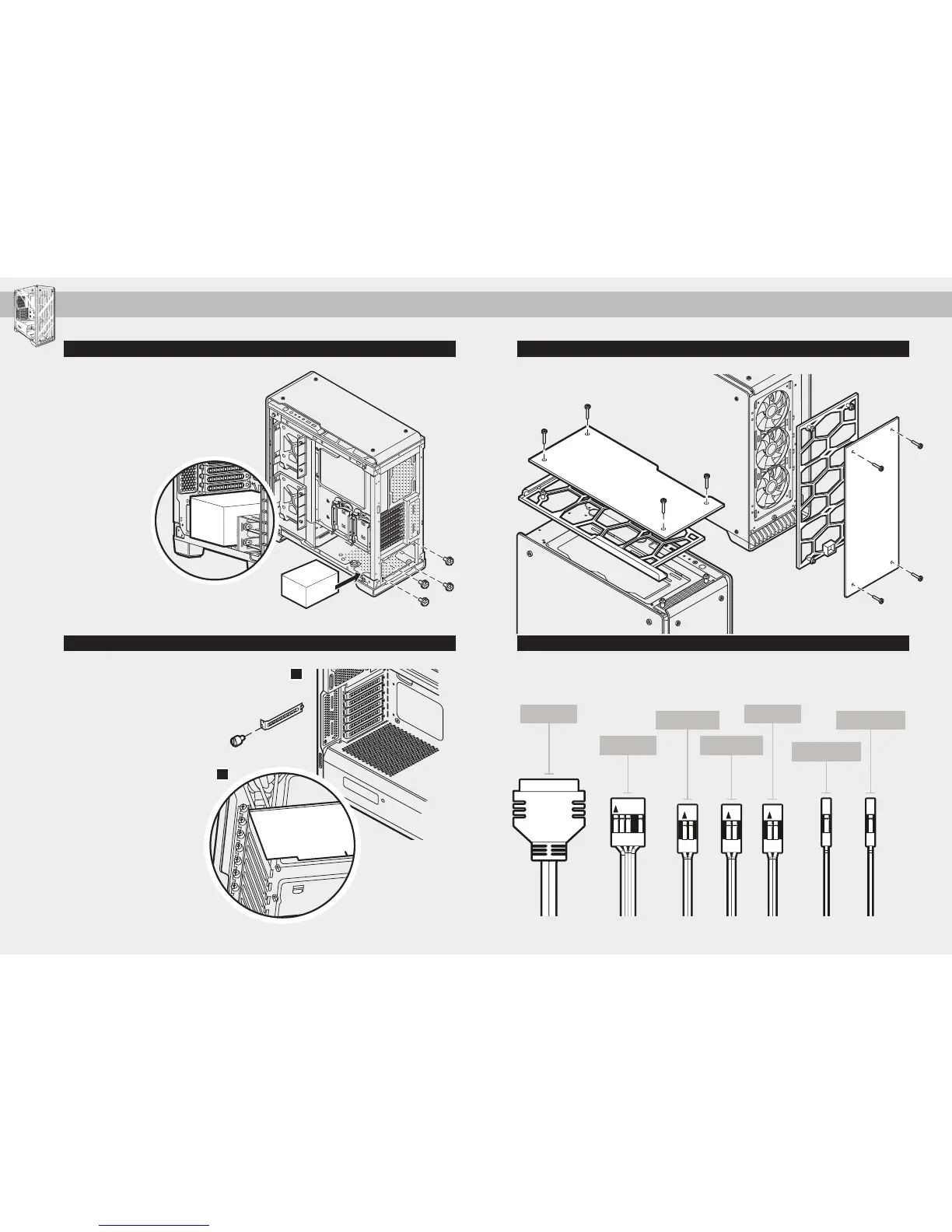

8. Installing the Front I/O Connectors
7. Removing the Front and Top Panels
6. Installing PCI-E/PCI Card(s)
5. Installing the Power Supply
Remove the thumb screws and
pull o the glass panel.
Install the PSU into the
lower chamber of the case,
and secure with four screws
from behind.
400C_400Q STEP 5
1. Remove thumbscrews and
corresponding slot covers.
2. Install the expansion
card and secure with
thumbscrews.
1
400C_400Q STEP 6
2
USB 3.0
HD AUDIO RESET SW
POWER LED +
POWER LED –POWER SW
HDD LED
See your motherboard’s manual for front panel header locations and pin-outs.

Corsair CRYSTAL SERIES 570X Specifications

General

Case Type	Mid Tower
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Material	Steel, Tempered Glass
Expansion Slots	7
Drive Bays	2x 3.5in, 2x 2.5in
Dimensions	480mm x 234mm x 512mm
Weight	10.9 kg
Maximum GPU Length	370mm
Maximum CPU Cooler Height	170mm
Maximum PSU Length	225mm
Radiator Compatibility	Up to 360mm
Fan Support	Front: 3 x 120mm; Top: 2 x 120mm or 2 x 140mm; Rear: 1 x 120mm
Pre-installed Fans	3 x 120mm RGB
Front I/O Ports	2 x USB 3.0, 1 x Headphone, 1 x Microphone
