Corsair CX650M User Manual

0
750
150300 450 600
40
35
30
25
20
15
10
5
0
95
90
85
80
75
70
100
10
20 50
610mm
650mm
650mm
600mm
150mm
485mm 115mm
550mm 100mm 100mm 100mm
455mm 115mm 115mm 115mm
550mm 100mm 100mm 100mm
355mm 115mm 115mm 115mm
450mm 100mm 100mm 100mm
33 34
DANSK DANSK
INKLUDERET HARDWARE OG SPECIFIKATIONER FOR CX750M
Mål: 140mm(L) x 150mm(B) x 86mm (H)
Pakkens indhold: Strømforsyning, AC-kabel, DC-kabler, kabelbindere, monteringsskruer, sikkerhedsblad
STØJKURVE FOR BLÆSER TIL CORSAIR CX750M-STRØMFORSYNING
BLÆSERSTØJ (dB)
EFFEKTOUTPUT (W)
EFFEKTIVITET AF CORSAIR CX750M-STRØMFORSYNING
EFFEKTIVITET (%)
SYSTEMBELASTNING (%)

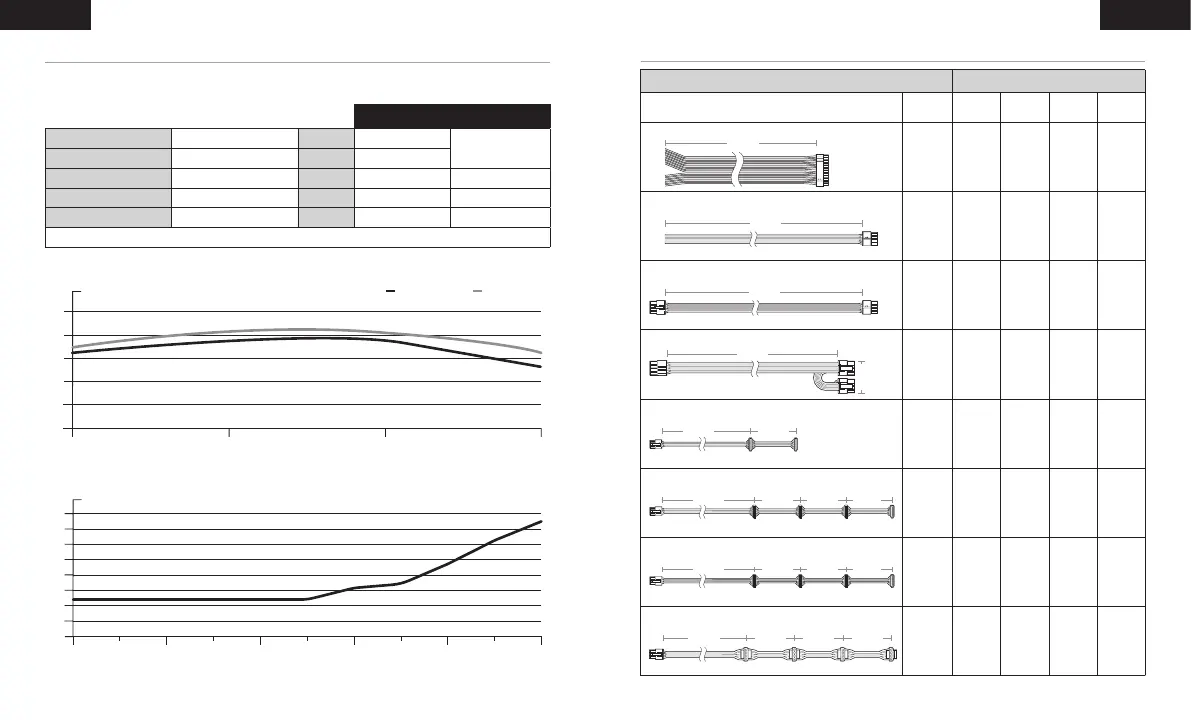

CORSAIR CX750-EFFEKTTABEL
MAKS. BELASTNING MAKS. OUTPUT
MODEL RPS0139 +3.3V 20A
130W
DELNR. CP-9020222/75-004125 +5V 20A
NOMINEL AC-INPUT 100V a.c. – 240V a.c. +12V 62A 744W
INPUT-STRØM 10A – 5A -12V 0.3A 3.6W
FREKVENS 47Hz – 63Hz +5Vsb 3A 15W
SAMLET EFFEKT: 750W
INFORMATION OM KABLER TIL CORSAIR CX-M SERIES
input 115V a.c. input 230V a.c.
Beskrivelse Antal Stik
Stik
Samlet
længde
450W 550W 650W 750W
ATX KABEL 24-BENS
610mm
(± 10mm)
1 1 1 1
EPS/ATX12V-KABEL 8-BENS (4+4)
650mm
(± 10mm)
1 1 1 1
EPS/ATX12V-KABEL 8-BENS (4+4)
650mm
(± 10mm)
0 0 1 1
PCIe-KABEL 8-BENS (6+2)
750mm
(± 10mm)
2 2 2 2
SATA-KABEL (2 SATA - HØJREVINKLET)
600mm
(± 10mm)
0 2 2 0
SATA CABLE (4 SATA - HØJREVINKLET)
700mm
(± 10mm)
4 4 4 0
SATA CABLE (4 SATA - HØJREVINKLET)
800mm
(± 10mm)
0 0 0 4
PERIFERKABEL 4-BENS
750mm
(± 10mm)
4 4 4 4

Corsair CX650M Specifications

General

Total power	650 W
Power factor	0.99
Input current	5 - 10 A
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Combined power (+12V)	648 W
Combined power (-12V)	9.6 W
Combined power (+3.3V)	130 W
Combined power (+5Vsb)	15 W
Max output current (+12V)	54 A
Max output current (-12V)	0.8 A
Max output current (+3.3V)	25 A
Max output current (+5Vsb)	3 A
Housing color	Black
Frequency tolerance	85 %
Number of SATA connectors	6
PCI Express slots quantity	2
Fan diameter	120 mm
Cabling type	Semi-Modular
EPS power connector (8-pin)	Yes
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	4
Purpose	PC
ATX version	2.4
EPS version	2.92
Noise level	- dB
80 PLUS certification	80 PLUS Bronze
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Sustainability certificates	RoHS

Weight and Dimensions

Depth	140 mm
Width	150 mm
Height	86 mm
Weight	3270 g
