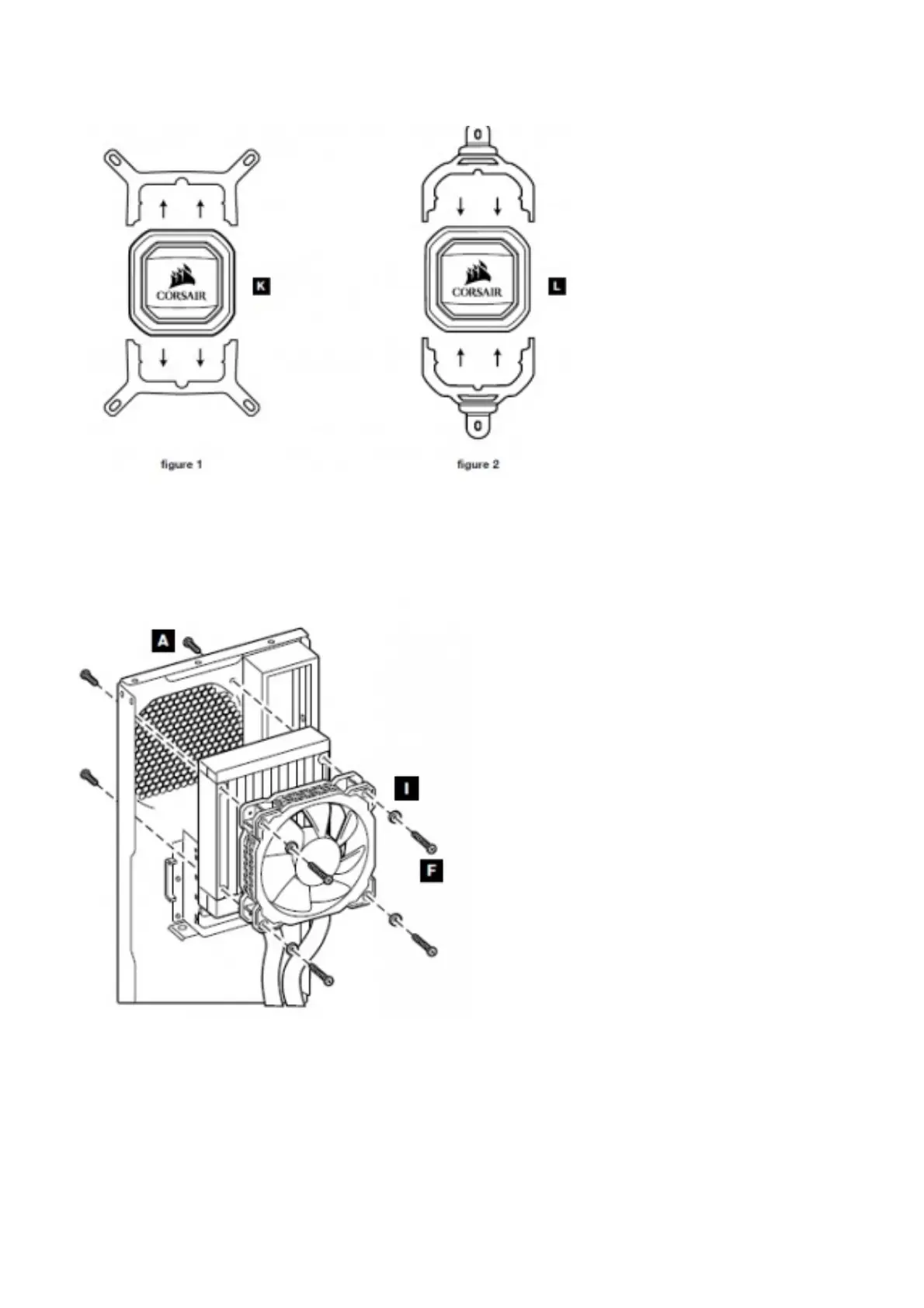

Remove the integrated Intel mounting bracket (figure 1).

> Install the AMD bracket by pushing both sides into the slot on the pump until secure (figure 2).

NOTE: It is important that the AMD retention bracket be evenly secured on all sides before

installation

2. INSTALL THE FANS AND RADIATOR

Attach the radiator and the fans as shown. For the best cooling performance, we recommend

mounting the fans as an air-intake to your PC case.

Insert the AMD screw clips and secure with the thumbscrews as shown. Do not tighten the

thumbscrews all the way.
