Corsair RM750x User Manual

41 42
RMx SERIES
™
RMx SERIES
™
RM650x
Anzahl
Beschreibung
Gesamtlänge
1
ATX, 24 Pins (20+4)
Anschlüsse pro Kabel
610mm
(± 10mm)
1
Anschlüsse insgesamt
1
1
EPS/ATX12V, 8 Pins (4+4)
Anschlüsse pro Kabel
650mm
(± 10mm)
1
Anschlüsse insgesamt
1
2
PCIe, 8 Pins (6+2)
Anschlüsse pro Kabel
750mm
(± 10mm)
2
Anschlüsse insgesamt
4
3
SATA (3 SATA)
Anschlüsse pro Kabel
750mm
(± 10mm)
3
Anschlüsse insgesamt
9
1
Peripheriekabel (4 Pins)
Anschlüsse pro Kabel
750mm
(± 10mm)
4
Anschlüsse insgesamt
4
1
Floppy-Adapter (4 Pins)
Anschlüsse pro Kabel
101mm
(± 5mm)
1
Anschlüsse insgesamt
1

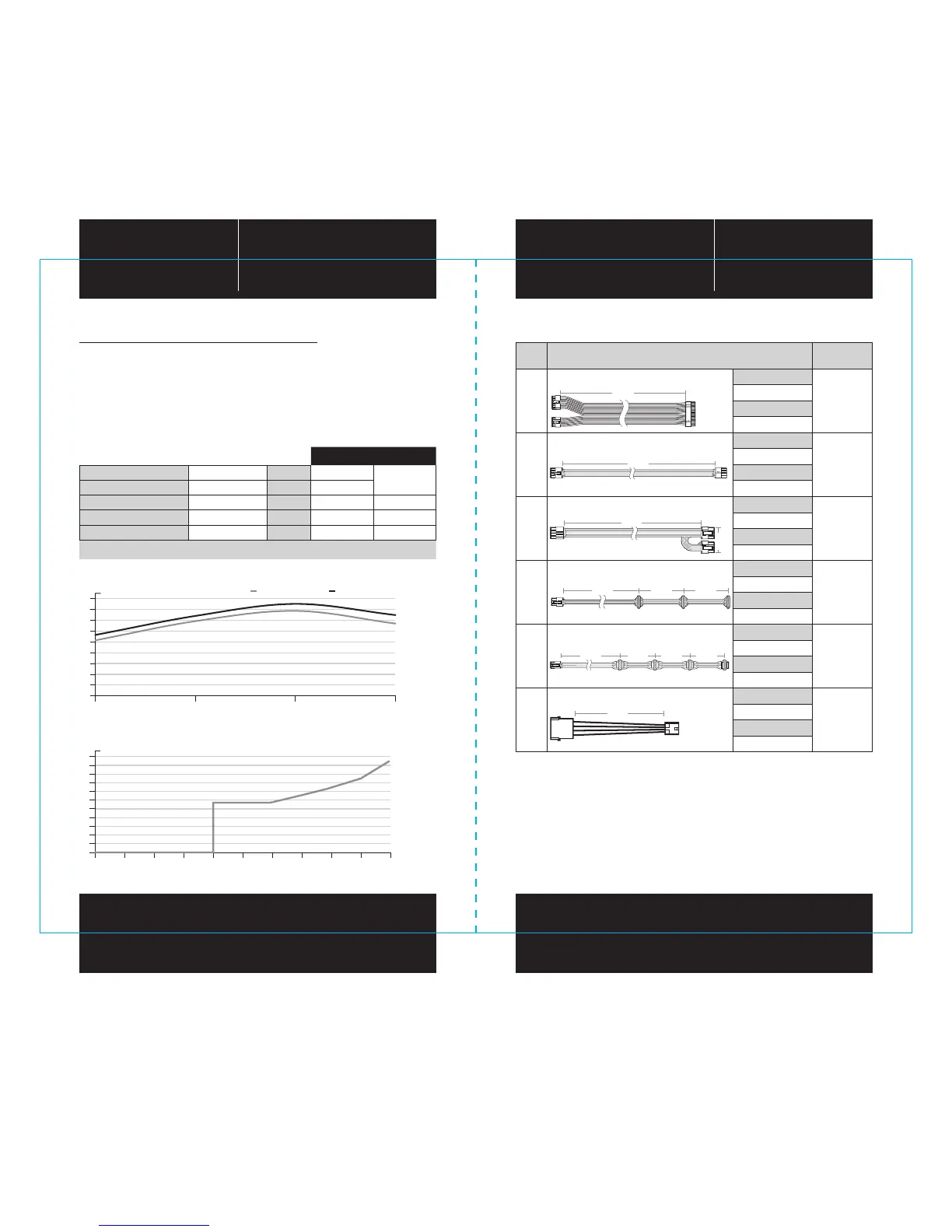

Corsair RM650x DC-Kabelliste
450mm 100mm 100mm 100mm
450mm 100mm 100mm 100mm
101mm
650mm
650mm
610mm
610mm
600mm
150mm
600mm
150mm
500mm 100mm 100mm
115mm 115mm520mm
22
20
18
16
14
12
10
8
6
4
2
0
0 65 130 195 260 325 390 455 520 585 650
93
91
89
87
85
83
81
79
77
75
10010
5020
22
20
18
16
14
12
10
8
6
4
2
0
0 65 130 195 260 325 390 455 520 585 650
93
91
89
87
85
83
81
79
77
75
10010
5020
Höchstbelastung
Maximale
Ausgangsleistung
Modell RPS0015 +3.3V 25A
130W
Teilenr. CP-9020091 +5V 25A
AC-Eingangsnennleistung 100-240V +12V 54A 648W
Eingangsstrom 10A-5A -12V 0.8A 9.6W
Frequenz 47˜63Hz +5Vsb 3A 15W
Gesamtleistung: 650W
Wirkungsgrad des Corsair RM650x Netzteils
Lüftergeräuschkurve des Corsair RM650x Netzteils
Abmessungen: 150mm (B) x 86mm (H) x 160mm (L)
Lieferumfang
• Corsair RMx Series Netzteil
• AC-Stromkabel
• Modularer DC-Kabelsatz
• Beutel für den modularen DC-Kabelsatz
• Kabelbinder
• Corsair Case Badge (Aufkleber)
• Benutzerhandbuch
% WIRKUNGSGRAD
SYSTEMLAST
Lüftergeräusch (dB)
Ausgangsleistung – Watt
Corsair RM650x Leistungstabelle
eingang 115 V AC eingang 230 V AC

Corsair RM750x Specifications

General

Hold time	16 ms
Total power	750 W
Power factor	0.99
Input current	5 - 10 A
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Combined power (-12V)	9.6 W
Combined power (+3.3V)	150 W
Combined power (+5Vsb)	15 W
Max output current (+12V)	62.5 A
Max output current (-12V)	0.8 A
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage
Max output current (+3.3V)	25 A
Max output current (+5Vsb)	3 A
Purpose	PC
ATX version	2.4
EPS version	2.92
Noise level	23 dB
Bearing technology	Rifle
80 PLUS certification	80 PLUS Gold
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Noise level (quiet mode, 50%)	12.4 dB
Fan speed	745 RPM
Fan diameter	140 mm
Product color	Black
Number of fans	1 fan(s)
Cabling type	Fully-Modular
EPS power connector (8-pin)	Yes
Motherboard power connector	20+4 pin ATX
Floppy drive power connector	1
Number of SATA power connectors	8
PCI Express power connectors (6+2 pin)	4
Peripheral (Molex) power connectors (4-pin)	7
Sustainability certificates	RoHS

Weight and Dimensions

Depth	180 mm
Width	150 mm
Height	86 mm
Weight	1930 g
