Congratulations on the purchase of your new CORSAIR RMx Series ATX Power Supply!
CORSAIR RMx Series fully modular power supplies deliver reliable 80 PLUS Gold efficient power to your system
combined with a high performance 140mm magnetic levitation (ML) fan.
> Over-Voltage Protection (OVP)
Over-voltage protection for the 12V, 5V, and 3.3V DC outputs is required to comply with the ATX
specification. OVP shuts down the PSU in the event that the DC outputs exceed a set level, determined by
the PSU manufacturer.
> Over-Current Protection (OCP)
The RMx Series features OCP on the 3.3V, 5V, and 12V rails. OCP ensures that the output of the DC voltage
rails remains within safe operating limits.
> Over-Temperature Protection (OTP)
OTP ensures that the PSU will shut down when the internal temperature reaches a set point. This is usually as
a result of internal current overloading or a fan failure.
> Short-Circuit Protection (SCP)
A short-circuit is defined as any output impedance of less than 0.1 ohms. Amongst other things, SCP ensures
that the PSU shuts down should the 3.3V, 5V, and 12V rails short to any other rail, or to ground. It also ensures
that no damage should occur to the unit, or your PC’s components in the event of a short.
0 55
0
110 220 330440
30
25
20
15
10
5
0

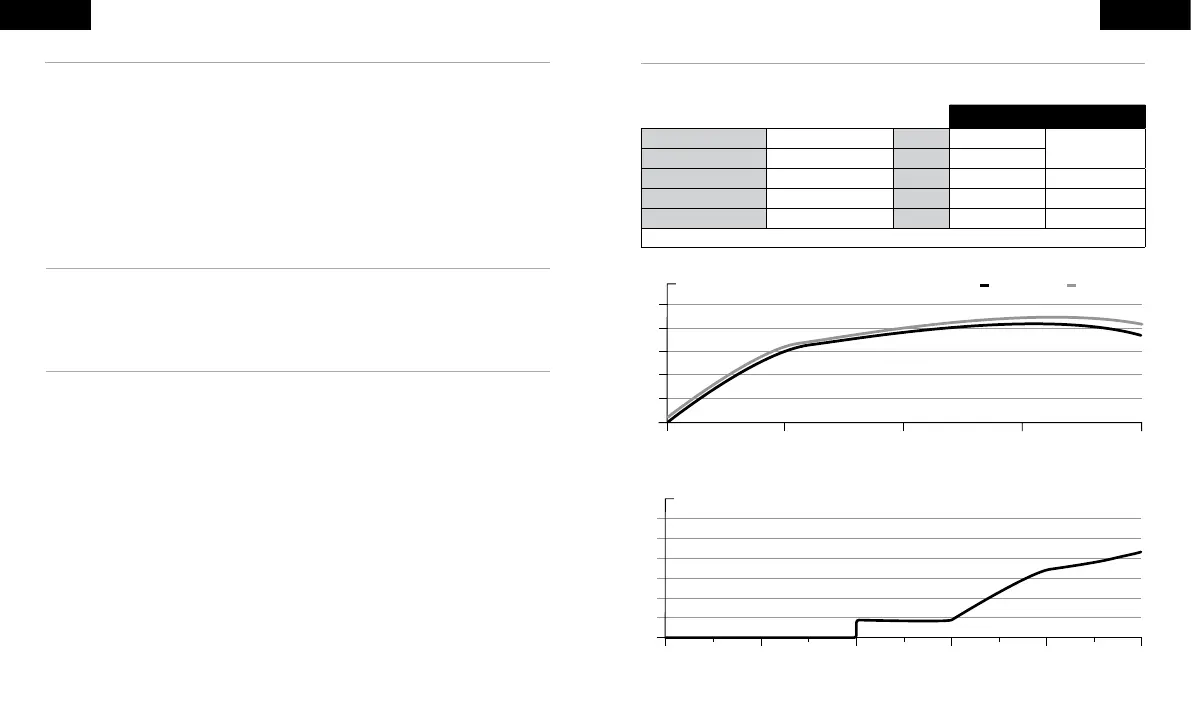

CORSAIR RM550x POWER SUPPLY FAN NOISE CURVE
FAN NOISE (dB)
POWER OUTPUT (W)
RM550x INCLUDED HARDWARE AND SPECIFICATIONS
Dimensions: 160mm(L) x 150mm(W) x 86mm (H)
Package contents: Power supply, AC cable, DC cables, cable ties, mounting screws, safety leaflet
CORSAIR RM550x POWER TABLE MAX LOAD MAX OUTPUT
MODEL RPS0121 +3.3V 20A
130W
PART NO. CP-9020197/75-003895 +5V 20A
AC INPUT RATING 100–240V +12V 45.8A 549.6W
INPUT CURRENT 10A–5A -12V 0.3A 3.6W
FREQUENCY 47–63Hz +5Vsb 3A 15W
TOTAL POWER: 550W
95
90
85
80
75
70
10
0
2
2010 50
CORSAIR RM550x POWER SUPPLY EFFICIENCY
input 115V a.c. input 230V a.c.
EFFICIENCY (%)
SYSTEM LOAD (%)
RM550x .....................................................................................................................................................................2
RM650x .....................................................................................................................................................................3
RM750x .....................................................................................................................................................................4
RM850x .....................................................................................................................................................................5
RM1000x ...................................................................................................................................................................6
Installation .................................................................................................................................................................8

Corsair RM850 Series Specifications

General

Wattage	850W
Efficiency Rating	80 PLUS Gold
Modular	Fully Modular
Form Factor	ATX
Fan Size	135mm
Zero RPM Mode	Yes
Dimensions	150mm x 86mm x 160mm
Warranty	10 Years
ATX Connector	1
EPS Connector	2
PCI-E Connector	6
SATA Connector	10
MTBF	100, 000 hours
Input Voltage	100-240V
Input Frequency	47-63Hz
Operating Temperature	0°C to 50°C
Connectors	ATX, EPS, PCIe, SATA, Peripheral
