Corsair RM850 Series User Manual

3 4
ENGLISH ENGLISH
0 65
0
130 260 390520
30
25
20
15
10
5
0

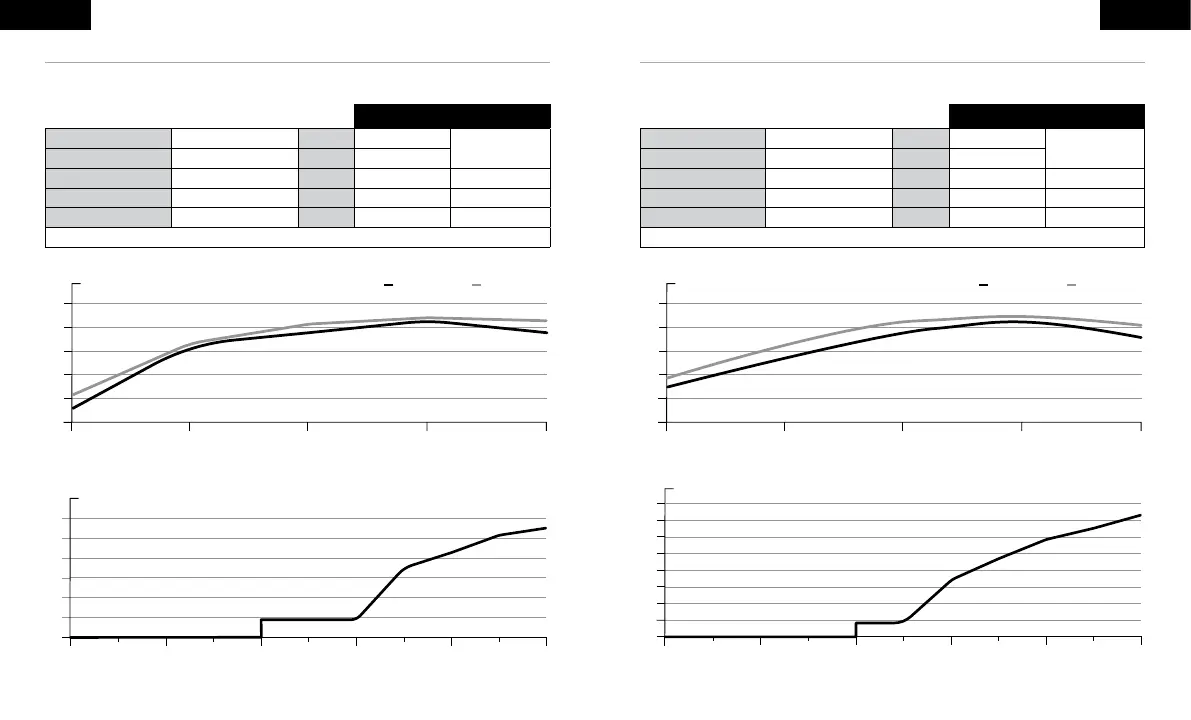

CORSAIR RM650x POWER SUPPLY FAN NOISE CURVE
FAN NOISE (dB)
POWER OUTPUT (W)
RM650x INCLUDED HARDWARE AND SPECIFICATIONS RM750x INCLUDED HARDWARE AND SPECIFICATIONS
Dimensions: 160mm(L) x 150mm(W) x 86mm (H)
Package contents: Power supply, AC cable, DC cables, cable ties, mounting screws, safety leaflet
Dimensions: 160mm(L) x 150mm(W) x 86mm (H)
Package contents: Power supply, AC cable, DC cables, cable ties, mounting screws, safety leaflet
95
90
85
80
75
70
10
0
2
2010 50
CORSAIR RM650x POWER SUPPLY EFFICIENCY
input 115V a.c. input 230V a.c.
EFFICIENCY (%)
SYSTEM LOAD (%)
CORSAIR RM750x POWER TABLE MAX LOAD MAX OUTPUT
MODEL RPS0123 +3.3V 20A
150W
PART NO. CP-9020199/75-003897 +5V 20A
AC INPUT RATING 100–240V +12V 62.5A 750W
INPUT CURRENT 10A–5A -12V 0.3A 3.6W
FREQUENCY 47–63Hz +5Vsb 3A 15W
TOTAL POWER: 750W
0 75
0
150 300 450600
40
35
30
25
20
15
10
5
0
CORSAIR RM750x POWER SUPPLY FAN NOISE CURVE
FAN NOISE (dB)
POWER OUTPUT (W)
95
90
85
80
75
70
10
0
2
2010 50
CORSAIR RM750x POWER SUPPLY EFFICIENCY
input 115V a.c. input 230V a.c.
EFFICIENCY (%)
SYSTEM LOAD (%)
CORSAIR RM650x POWER TABLE MAX LOAD MAX OUTPUT
MODEL RPS0122 +3.3V 20A
130W
PART NO. CP-9020198/75-003896 +5V 20A
AC INPUT RATING 100–240V +12V 45.8A 648W
INPUT CURRENT 10A–5A -12V 0.3A 3.6W
FREQUENCY 47–63Hz +5Vsb 3A 15W
TOTAL POWER: 650W

Corsair RM850 Series Specifications

General

Wattage	850W
Efficiency Rating	80 PLUS Gold
Modular	Fully Modular
Form Factor	ATX
Fan Size	135mm
Zero RPM Mode	Yes
Dimensions	150mm x 86mm x 160mm
Warranty	10 Years
ATX Connector	1
EPS Connector	2
PCI-E Connector	6
SATA Connector	10
MTBF	100, 000 hours
Input Voltage	100-240V
Input Frequency	47-63Hz
Operating Temperature	0°C to 50°C
Connectors	ATX, EPS, PCIe, SATA, Peripheral
