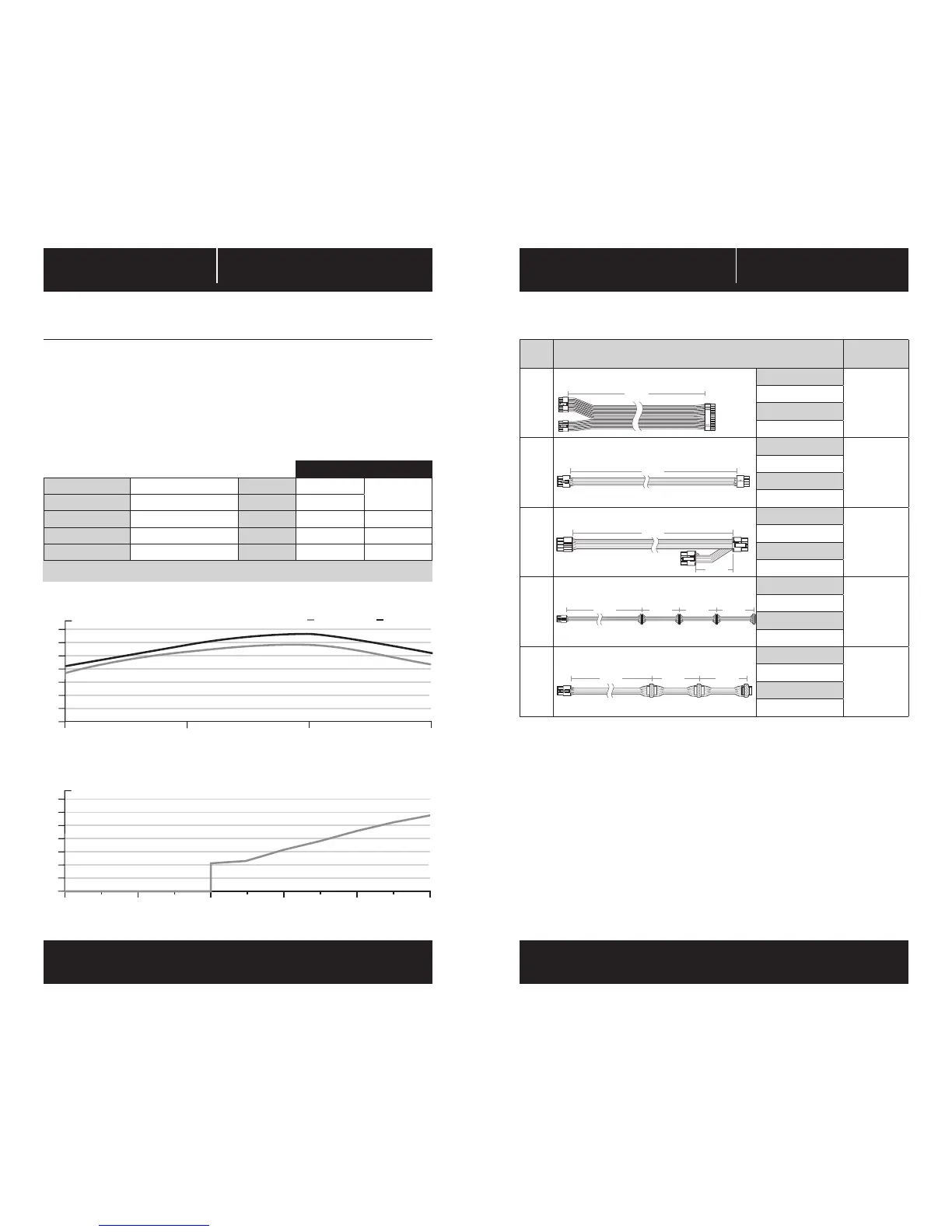

Corsair SF Series User Manual

3 4
SF SERIES
™
SF SERIES
™
Qty Description Total Length
1
ATX Cable 24 pin
Connectors per cable
300mm
(± 10mm)
1
Total connectors
1
2
EPS/ATX12V 8 pin (4+4) cable
Connectors per cable
400mm
(± 10mm)
1
Total connectors
2
2
PCIe 8 pin (6+2) cable
Connectors per cable
500mm
(± 10mm)
2
Total connectors
4
2
SATA cable (4 SATA)
Connectors per cable
445mm
(± 10mm)
4
Total connectors
8
1
Peripheral cable (4-pin)
Connectors per cable
330mm
(± 10mm)
3
Total connectors
3
0 75
0
150 300 450 600
35
30
25
20
15
10
5
0
95
93
91
89
87
85
83
81
100
10
5020
CORSAIR SF750 POWER TABLE
MAX LOAD MAX OUTPUT
MODEL RPS0115 +3.3V 20A
130W
PART NO. CP-9020186 +5V 20A
AC INPUT RATING 100–240V +12V 62.5A 750W
INPUT CURRENT 10A–5A -12V 0.3A 3.6W
FREQUENCY 47–63Hz +5Vsb 2.5A 12.5W
TOTAL POWER: 750W
SF750
CORSAIR SF750 POWER SUPPLY EFFICIENCY
input 115VAC input 230VACEFFICIENCY (%)
SYSTEM LOAD (%)
CORSAIR SF750 POWER SUPPLY FAN NOISE CURVE
FAN NOISE (db)
POWER OUTPUTS (WATTS)
CORSAIR SF750 DC CABLE LISTING
450mm 100mm 100mm
100mm 115mm 115mm
550mm 100mm 100mm 100mm
100mm 115mm 115mm 115mm
650mm
400mm
610mm
300mm
400mm
100mm
DIMENSIONS: 125mm (W) x 63.5 mm (H) x 100mm (L)
PACKAGE CONTENTS:
• CORSAIR SF Series power supply unit
• AC power cord
• DC modular cable set
• DC modular cable storage bag
• Cable ties
• CORSAIR case badge
• User manual
• SFX to ATX adapter
• Important safety information

Corsair SF Series Specifications

General

Form Factor	SFX
Fan Size	92mm
Zero RPM Fan Mode	Yes
Warranty	7 years
Efficiency Rating	80 Plus Gold
Wattage	600W, 750W, 850W
Fan Type	Fluid Dynamic Bearing (FDB)
Connectors	ATX, EPS, PCIe, SATA, Peripheral
Dimensions	100mm x 63mm x 125mm
Modular	Fully Modular
