Corsair SF Series User Manual

5 6
SF SERIES
™
SF SERIES
™
CORSAIR SF600 POWER TABLE
MAX LOAD MAX OUTPUT
MODEL RPS0112 +3.3V 20A
120W
PART NO. CP-9020182 +5V 20A
AC INPUT RATING 100–240V +12V 50A 600W
INPUT CURRENT 10A–5A -12V 0.3A 3.6W
FREQUENCY 47–63Hz +5Vsb 2.5A 12.5W
TOTAL POWER: 600W
Qty Description Total Length
1
ATX Cable 24 pin
Connectors per cable
300mm
(± 10mm)
1
Total connectors
1
1
EPS/ATX12V 8 pin (4+4) cable
Connectors per cable
400mm
(± 10mm)
1
Total connectors
1
2
PCIe 8 pin (6+2) cable
Connectors per cable
400mm
(± 10mm)
1
Total connectors
2
1
SATA cable (4 SATA)
Connectors per cable
445mm
(± 10mm)
4
Total connectors
4
1
Peripheral cable (4-pin)
Connectors per cable
330mm
(± 10mm)
3
Total connectors
3
CORSAIR SF600 DC CABLE LISTING
450mm 100mm 100mm
100mm 115mm 115mm
550mm 100mm 100mm 100mm
100mm 115mm 115mm 115mm
650mm
400mm
610mm
300mm
600mm
400mm
SF600
0 60
0
120 240 360 480
35
30
25
20
15
10
5
0
95
93
91
89
87
85
83
81
100
10
5020

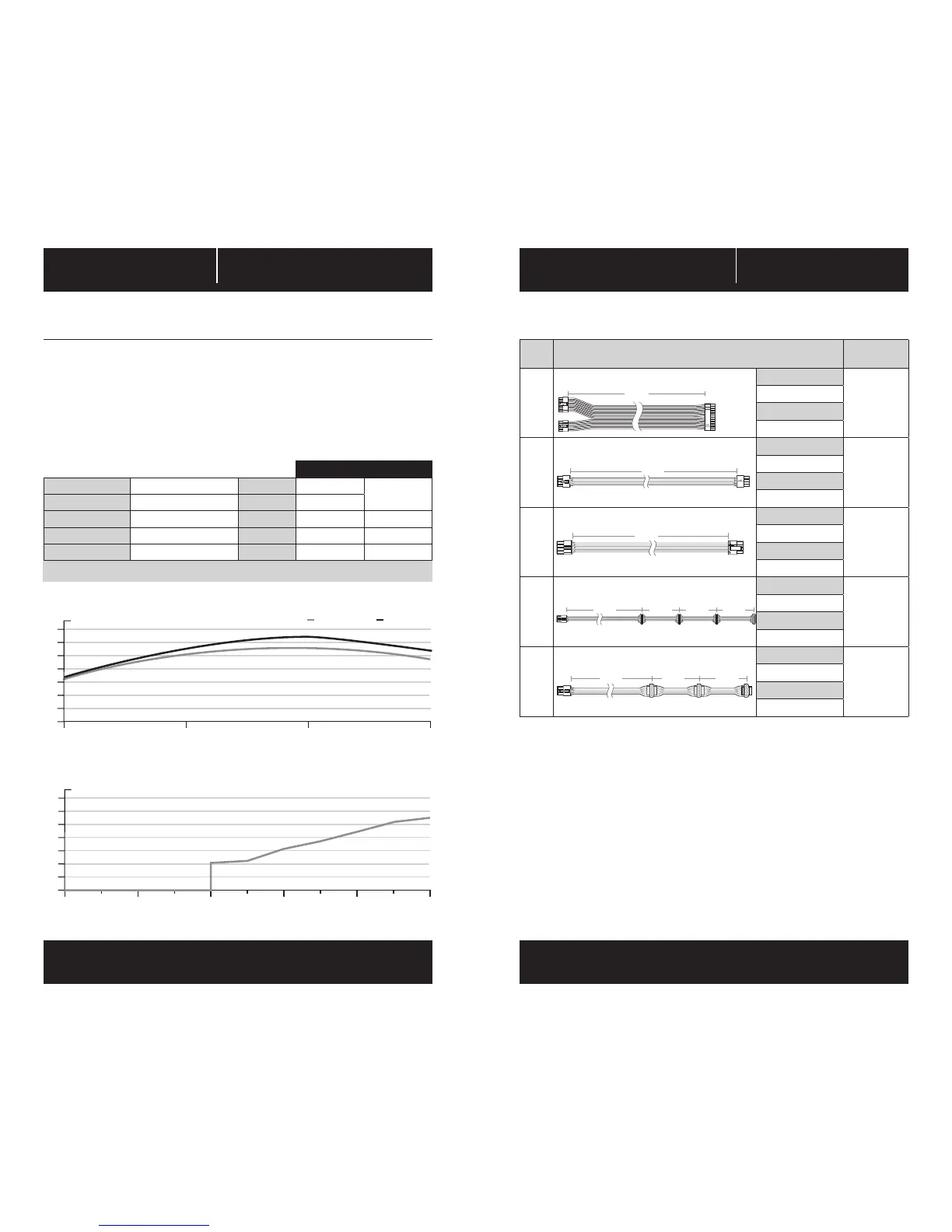

CORSAIR SF600 POWER SUPPLY EFFICIENCY
input 115VAC input 230VACEFFICIENCY (%)
SYSTEM LOAD (%)
CORSAIR SF600 POWER SUPPLY FAN NOISE CURVE
FAN NOISE (db)
POWER OUTPUTS (WATTS)
DIMENSIONS: 125mm (W) x 63.5 mm (H) x 100mm (L)
PACKAGE CONTENTS:
• CORSAIR SF Series power supply unit
• AC power cord
• DC modular cable set
• DC modular cable storage bag
• Cable ties
• CORSAIR case badge
• User manual
• SFX to ATX adapter
• Important safety information

Corsair SF Series Specifications

General

Form Factor	SFX
Fan Size	92mm
Zero RPM Fan Mode	Yes
Warranty	7 years
Efficiency Rating	80 Plus Gold
Wattage	600W, 750W, 850W
Fan Type	Fluid Dynamic Bearing (FDB)
Connectors	ATX, EPS, PCIe, SATA, Peripheral
Dimensions	100mm x 63mm x 125mm
Modular	Fully Modular
