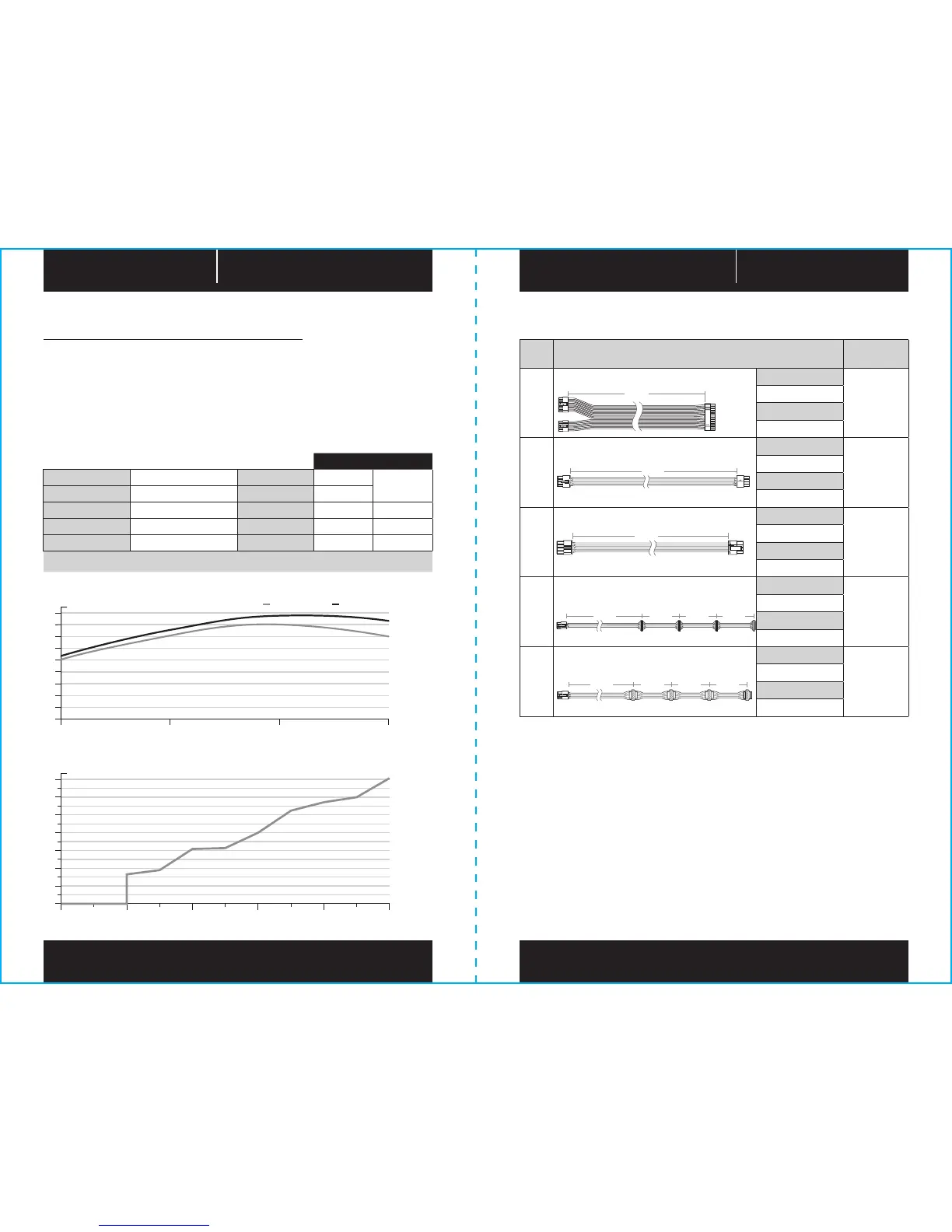

Corsair SF600 User Manual

3 4
SF SERIES
™
SF SERIES
™
Max Load Max Output
Model RPS0026 +3.3V 20A
120W
Part No. CP-9020105 / 75-011264 +5V 20A
AC input Rating 100-240V +12V 50A 600W
Input Current 10A-5A -12V 0.3A 3.6W
Frequency 47˜63Hz +5Vsb 2.5A 12.5W
Total Power: 600W
Qty Description Total Length
1
SFX Cable 24 pin (20+4)
Connectors Per Cable
300mm
(± 10mm)
1
Total Connectors
1
1
EPS/SFX12V 8 pin (4+4) cable
Connectors Per Cable
400mm
(± 10mm)
1
Total Connectors
1
2
PCIe 8 pin (6+2) cable
Connectors Per Cable
400mm
(± 10mm)
1
Total Connectors
2
1
SATA cable (4 SATA)
Connectors Per Cable
445mm
(± 10mm)
4
Total Connectors
4
1
Peripheral cable (4-pin)
Connectors Per Cable
445mm
(± 10mm)
4
Total Connectors
4
Corsair SF600 power supply eciency
Corsair SF600 power supply fan noise curve
Corsair SF600 DC cable listing
450mm 100mm 100mm 100mm
100mm 115mm 115mm 115mm
550mm 100mm 100mm 100mm
100mm 115mm 115mm 115mm
650mm
400mm
300mm
300mm
600mm
400mm
SF600
Dimensions: 125mm (W) x 63.5 mm (H) x 100mm (L)
Package contents
• Corsair SF Series power supply unit
• AC power cord
• DC Modular cable set
• DC Modular cable storage bag
• Cable ties
• Corsair case badge
• User manual
input 115Vac input 230Vac
35
30
25
20
15
10
5
0
0% 100%20% 40% 60% 80%
93
91
89
87
85
83
81
79
77
75
10010
5020
35
30
25
20
15
10
5
0
0% 100%20% 40% 60% 80%
93
91
89
87
85
83
81
79
77
75
10010
5020
% EFFICIENCY
SYSTEM LOAD
Fan Noise (db)
SYSTEM LOAD
Corsair SF600 power table

Corsair SF600 Specifications

General

Total power	600 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Power protection features	Over power, Over voltage, Overheating, Short circuit, Under voltage
Purpose	PC
ATX version	2.4
EPS version	2.92
Silent mode	Yes
Bearing technology	Rifle
80 PLUS certification	80 PLUS Platinum
Supported motherboard form factors	ATX
Power supply unit (PSU) form factor	SFX
Cables included	AC, DC
Cabling type	Fully-Modular
SATA power cable length	450 mm
Motherboard power connector	24-pin ATX
Motherboard power cable length	300 mm
PCI Express power cable length	400 mm
Number of SATA power connectors	4
Peripheral (Molex) power cable length	330 mm
PCI Express power connectors (6+2 pin)	2
Cooling type	Active
Fan diameter	92 mm
Fan location	Top
Number of fans	1 fan(s)

Weight and Dimensions

Weight	860 g
