FT10 Free Weight Function Trainer

3. ASSEMBLY INSTRUCTION

STEP 1

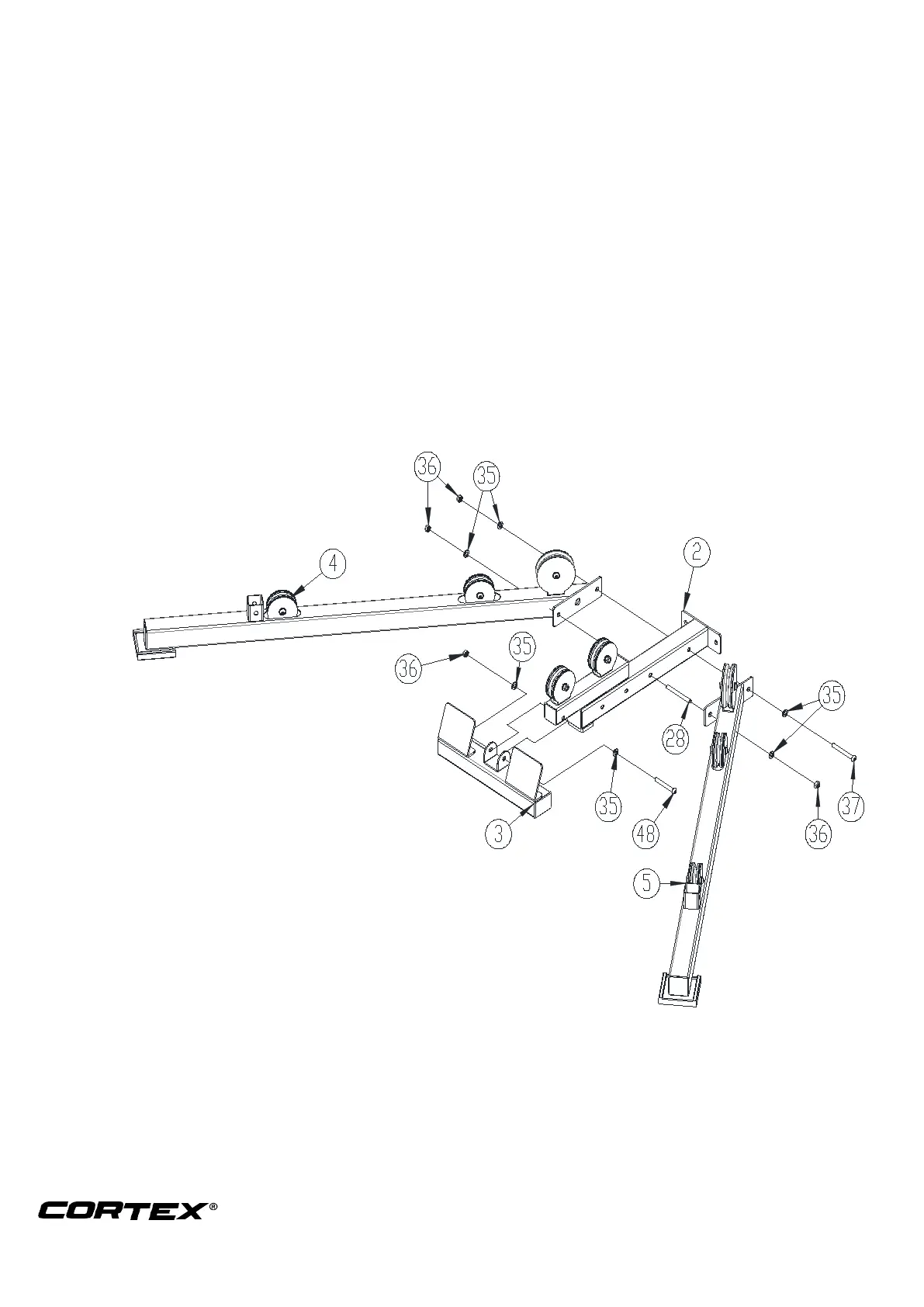

a. Attach The connection frame (2) to Right bottom framework and Right bottom connection

frame (4) and Left bottom connection frame (5), using Screw rod (28), Screw M10X85 (37),

Flat washer Ф10 (35) and Lock nut M10 (36).

b. Attach The connection frame (2) to The foot rack (3), using Screw M10X75 (48), Flat

washer Ф10 (35) and Lock nut M10 (36).
