Cortex FT10 - Step 2: Attach Pipe and Connection Frames

FT10 Free Weight Function Trainer
7

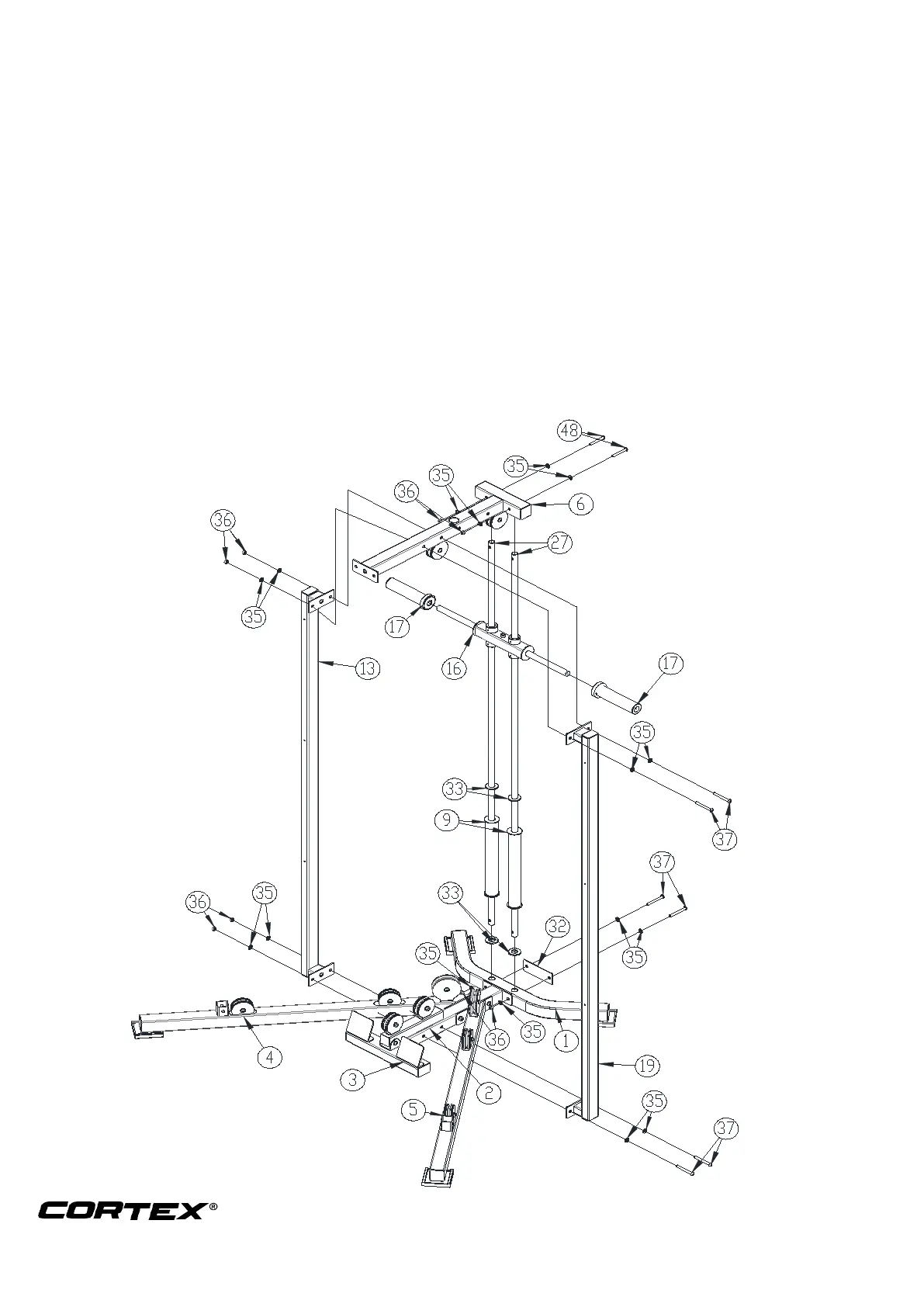

STEP 2
a. Attach Rear bottom frame (1) to The pipe run (27) and The connection frame (2), using
The reinforcing plate (32), Screw M10X85 (37), Flat washer Ф10 (35) and Lock nut M10 (36).
b. Attach The pipe run (27) to Top connection frame (6), Support frame (9) and The sliding
plane (16), using Rubber (33), Screw M10X75 (48), Flat washer Ф10 (35) and Lock nut M10
(36).
c. Attach Long connection frame (13) to Top connection frame (6) and The connection frame
(2), using Screw M10X85 (37), Flat washer Ф10 (35) and Lock nut M10 (36). The same as
Long connection frame (19).
