FT10 Free Weight Function Trainer

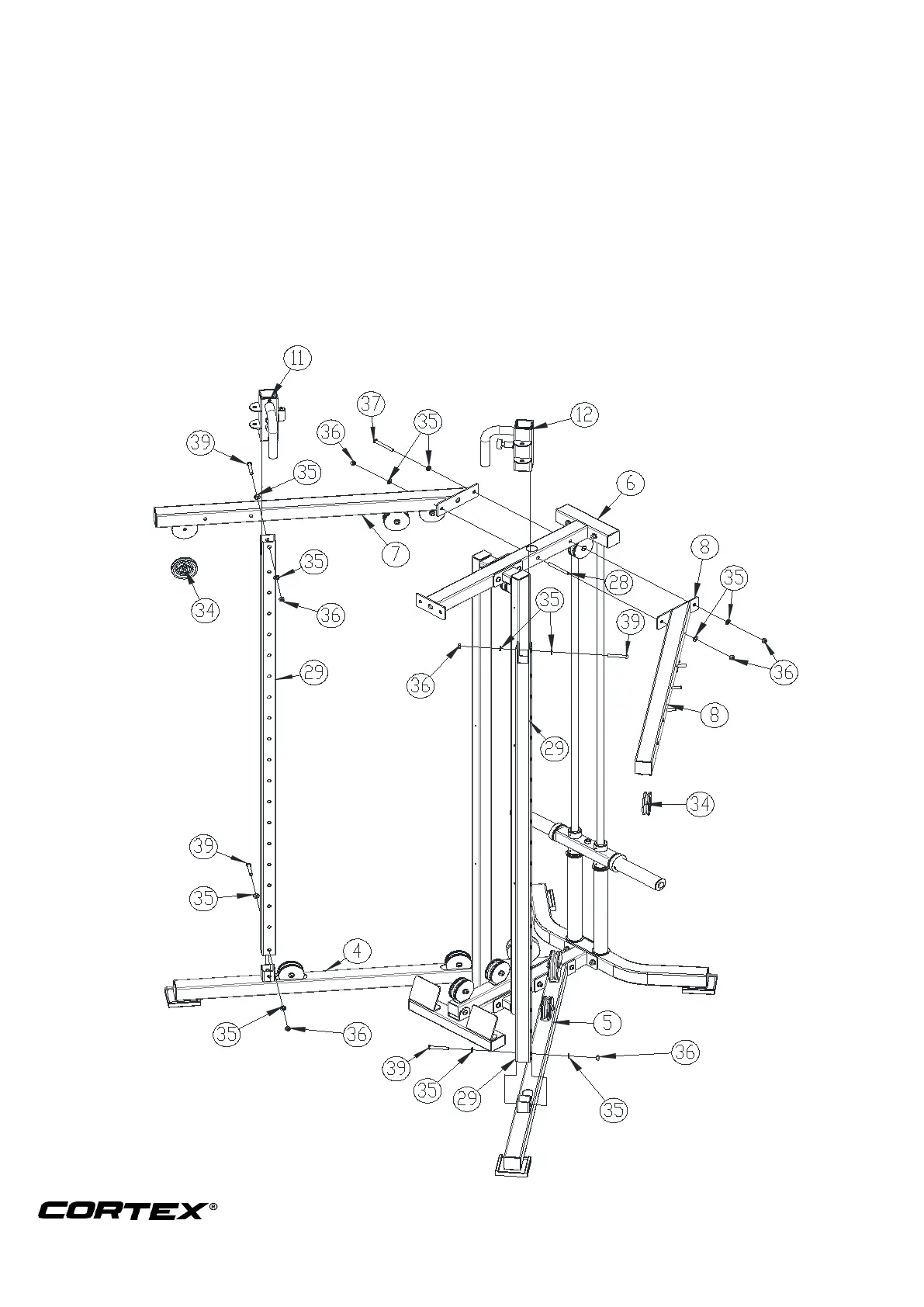

STEP 3

a. Attach Top connection frame (6) to The right beam frame (7) and The Left beam frame (8),

using Screw rod (28), Screw M10X85 (37), Flat washer Ф10 (35) and Lock nut M10 (36).

b. Attach Adjust the tube (29) to The right beam frame (7) and Right bottom connection

frame (4), using The right to sdjust (11), The pulley Ф89 (34), Screw M10X65 (39), Flat

washer Ф10 (35), Lock nut M10 (36). The same as The left beam frame (8) and Left bottom

connection frame (5).
