FT10 Free Weight Function Trainer

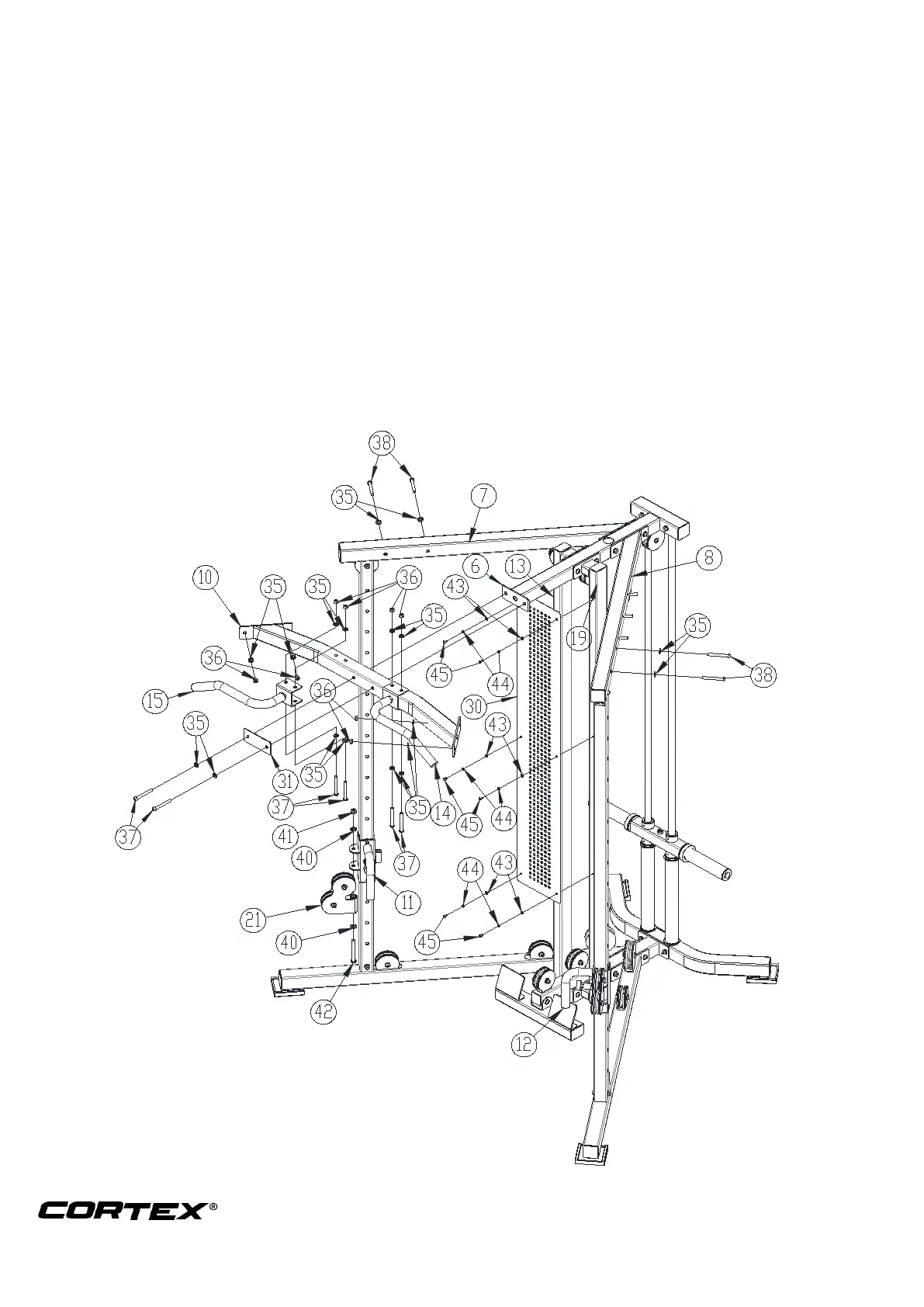

STEP 4

a. Attach Cross connection frame (10) to The right beam frame (7) and Top connection

frame (6), using The reinforcing plate (31), Screw M10X85 (37), Screw M10X80 (38), Flat

washer Ф10 (35) and Lock nut M10 (36).

b. Attach The right hand (15) to Cross connection frame (10), using Screw M10X85 (37), Flat

washer Ф10 (35) and Lock nut M10 (36). The same as The left hand (14) and Cross

connection frame (10).

c. Attach The cover plate (30) to Long connection frame (13) and Long connection frame

(19), using Screw M6X10 (45), Flat washer Ф6 (43) and Spring washer Ф6 (44).

d. Attach Double pulley bracket (21) to The right to adjust (11), using Screw M12X100 (42),

Flat washer Ф12 (40) and Lock nut M12 (41). The same as The left to adjust (12) and Double

pulley bracket (21).
