Cortex Multi Gym SM25 - Step 8

15ASSEMBLY INSTRUCTIONS |
74
85
83
M10 x 70mm
Φ 10
M10
8pcs
16pcs
8pcs

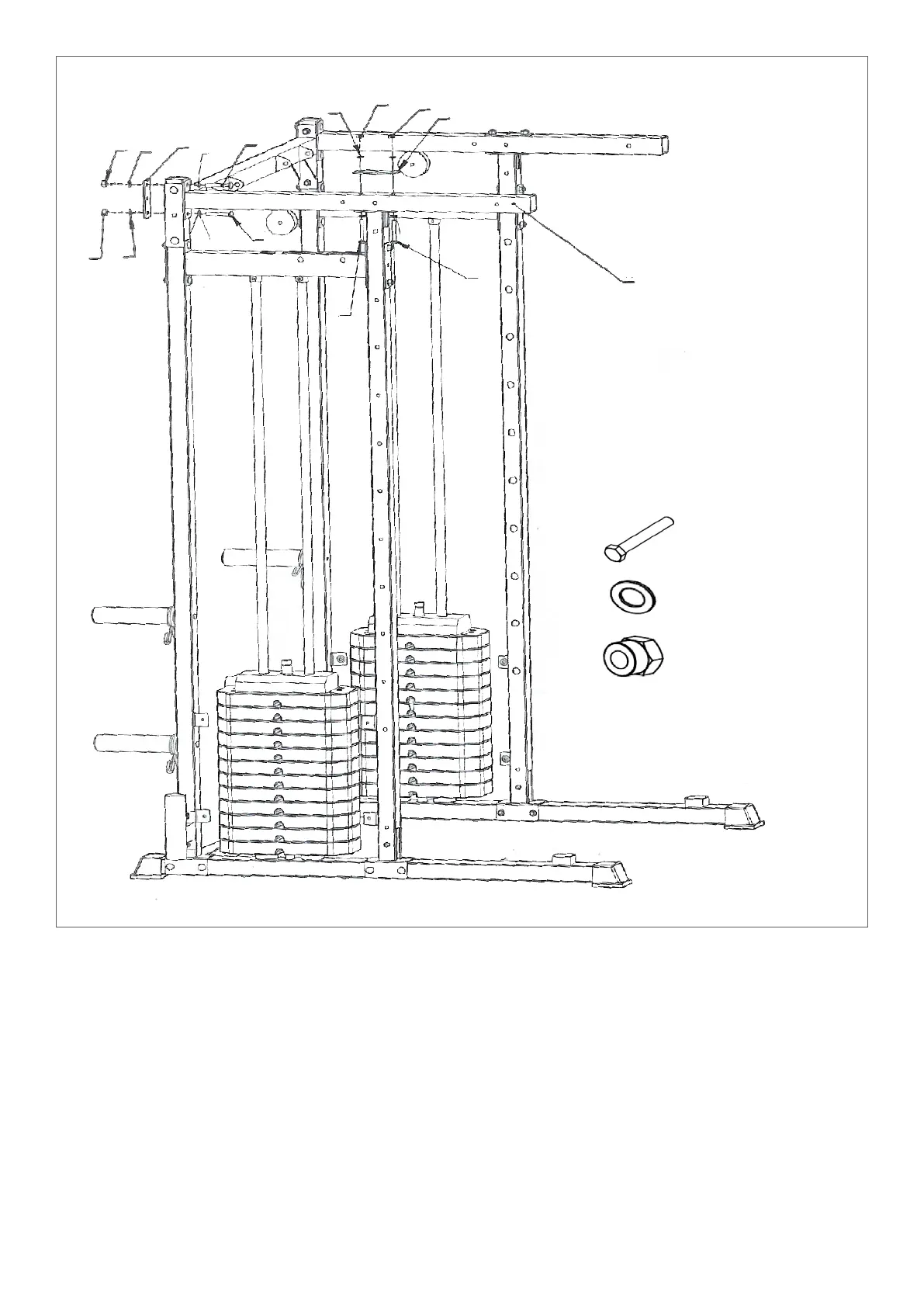

STEP 8
1. Secure part 11 into part 7 using:
- 1x part 22 - 2x part 74
- 4x part 85 - 2x part 83
2. Secure part 11 to part 4 using:
- 1x part 22 - 2x part 74
- 4x part 85 - 2x part 83
3. Repeat steps 1 and 2 for the other side.
11
74
74
74
85
85
83
83
22
85
85
85
74
22
83
83
85
