17ASSEMBLY INSTRUCTIONS |

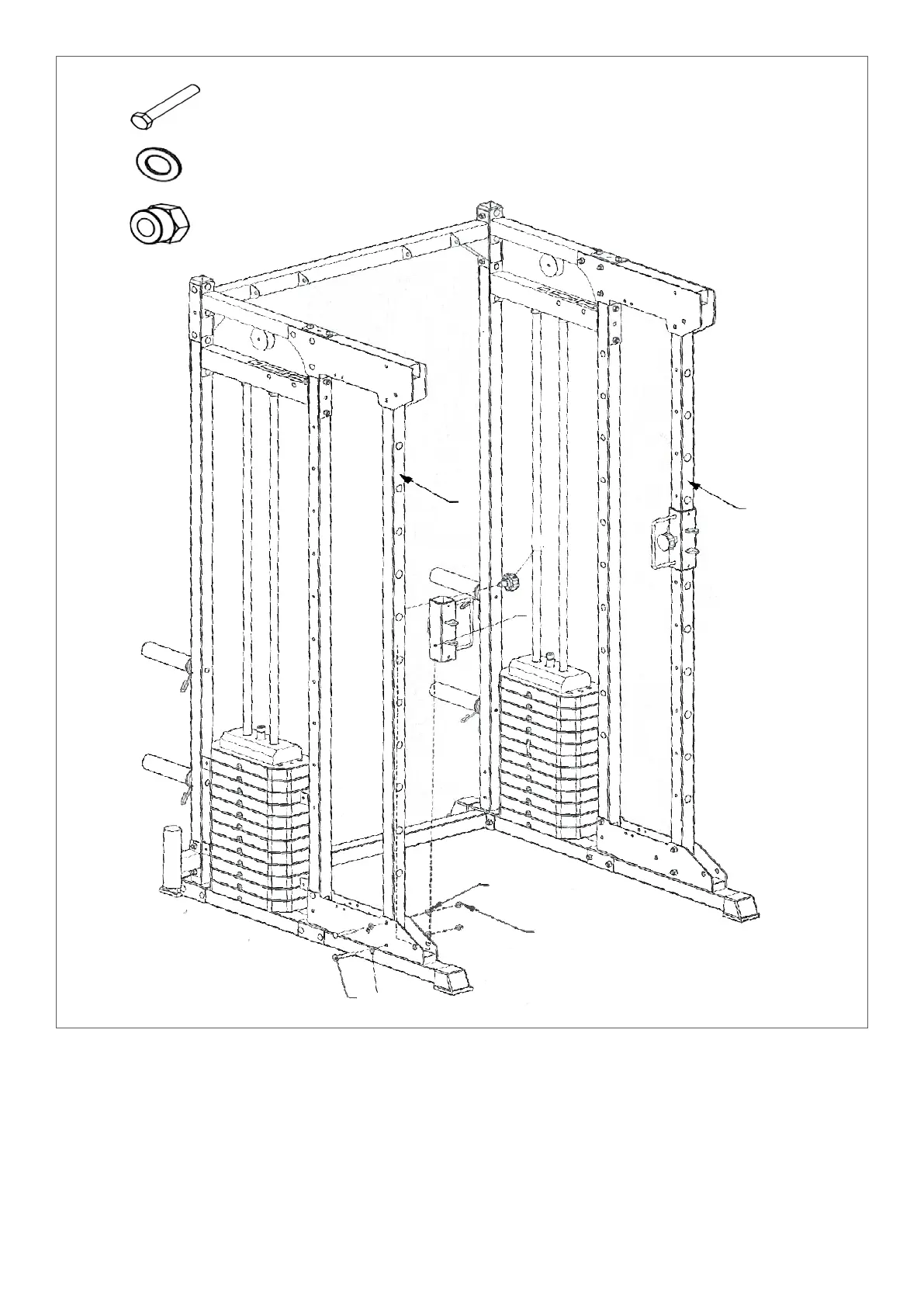

STEP 10
1. Slide part 30 into part 9 post as pictured and
secure with part 63.
2. Repeat for the other side.
3. Place part 9 into part 18 and 17 as pictured.
4. Secure part 17 to part 9 using:
- 2x part 74 - 4x part 85
- 2x part 83
5. Repeat step 4 on the other side.
74
85
83
M10 x 70mm
Φ 10
M10
4pcs
8pcs
4pcs
74 85
85
83
30
63
9
9
To Next Page
