22| ASSEMBLY INSTRUCTIONS

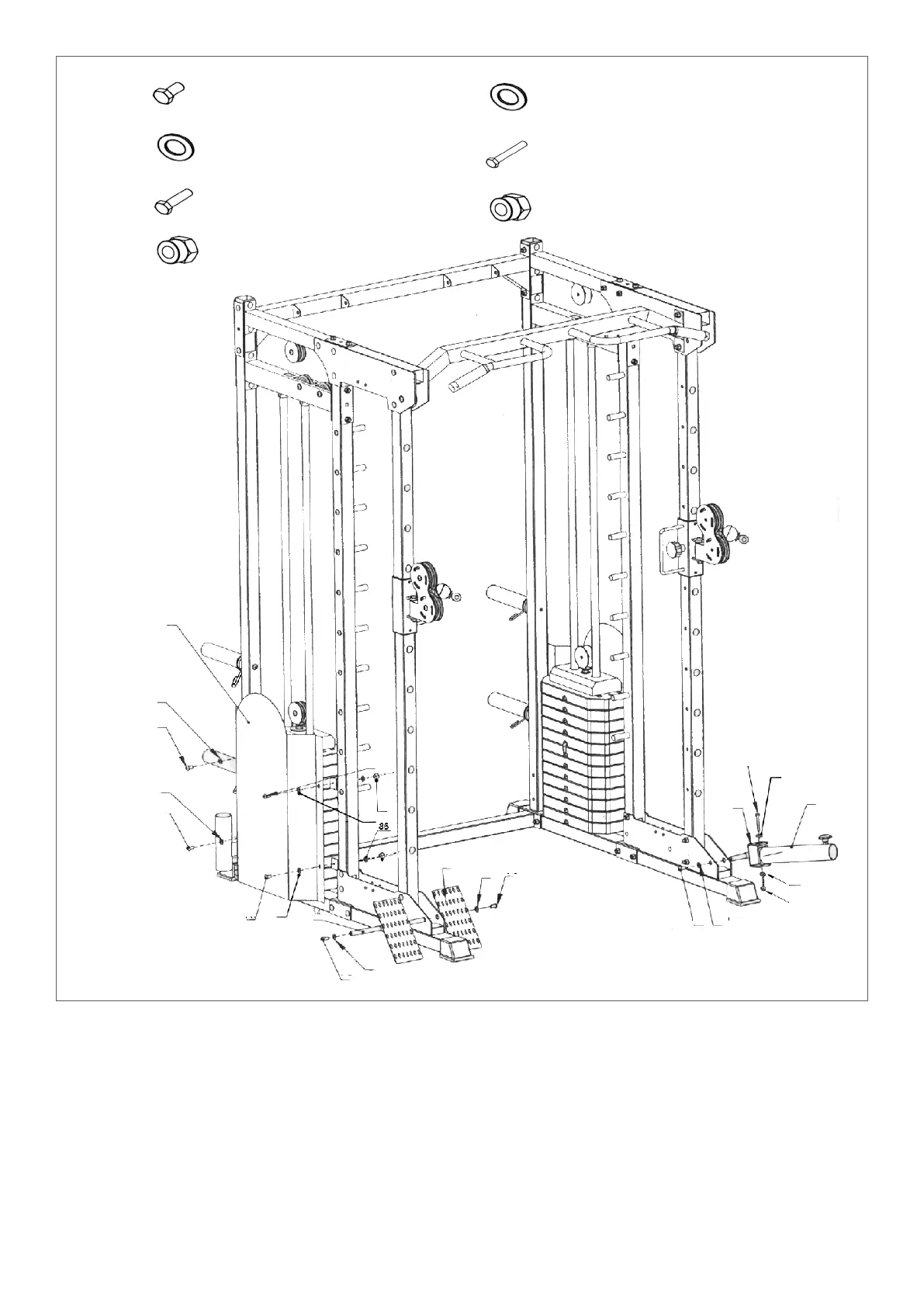

STEP 14
1. Secure weight covers 2x part 25 using:
- 8x part 78 - 8x part 86
2. Secure row foot plate part 33 using:
- 2x part 79 - 2x part 85
3. Secure landmine post part 45 to part 40 using:
- 1x part 71 - 2x part 85 - 1x part 83
4. Secure part 40 to part 17 using:
- 1x part 79 - 1x part 85
85
86
84
83
78
71
79
M10 x 90mm
Φ 10
Φ 8
M10 x 15mm
M8
M10
M8x16mm
1pc
5pcs
16pcs
3pcs
8pcs
1pc
8pcs
85
86
86
86
85
85
85
85
85
45
71
40
83
84
84
78
86
33
79
79
79
78
78
78
