23ASSEMBLY INSTRUCTIONS |

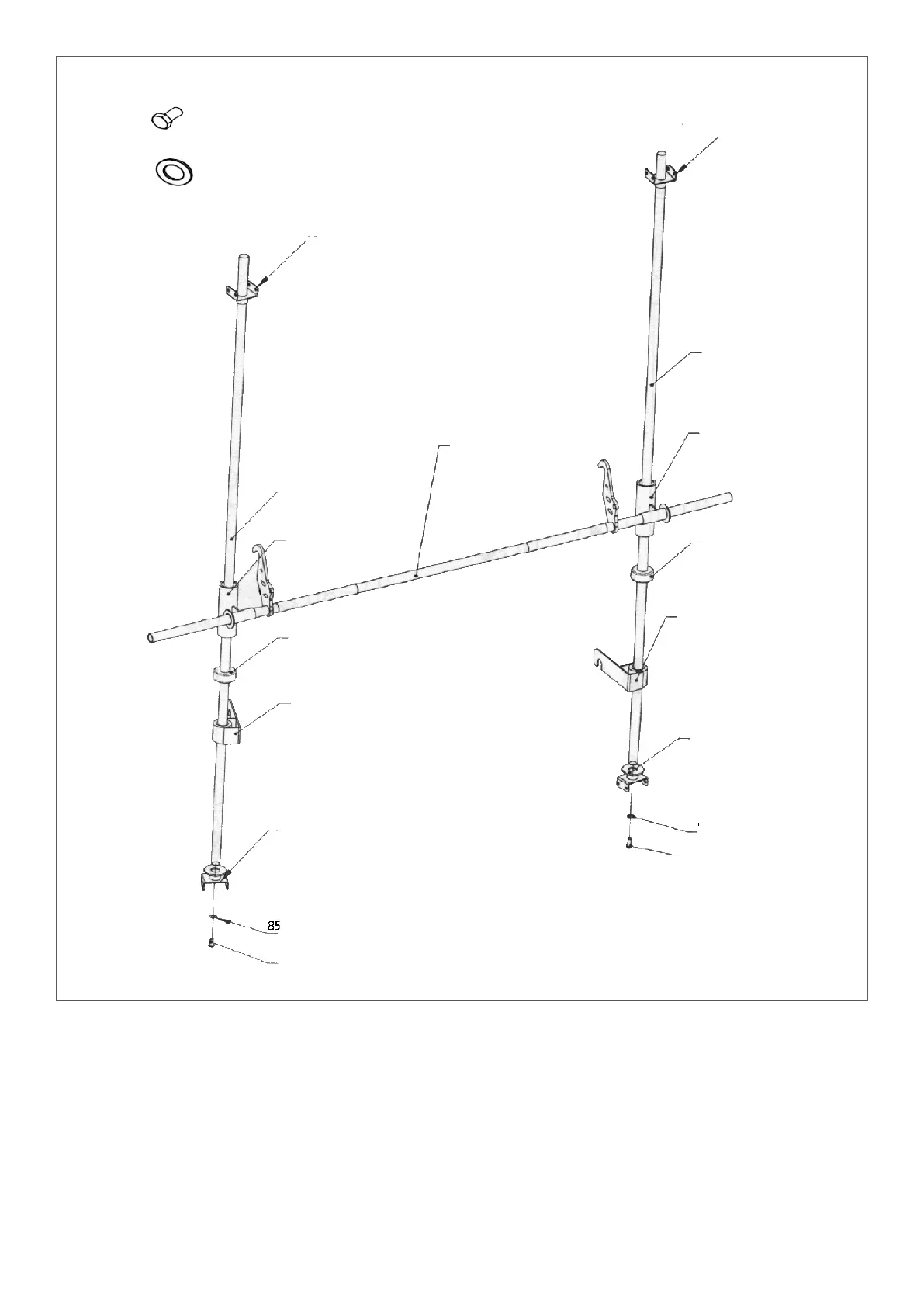

STEP 15
1. Place part 26 tube into 2x part 27.
2. Place the 2x part 27 onto the 2x part 90 as pictured.
3. Place 2x part 92 as pictured on part 90.
4. Place 2x part 47 onto part 90.
5. Place 2x part 28 onto part 90.
6. Place 2x part 91 onto 2x part 90 and secure using:
- 2x part 85 - 2x part 79
85
79
Φ 10
M10 x 15mm
2pcs
2pcs
90
92
92
26
90
27
47
47
27
28
29
91
91
85
79
79
