9ASSEMBLY INSTRUCTIONS |
IV. ASSEMBLY INSTRUCTIONS
ATTENTION:
1. The gasket shall be placed at both ends of the bolts (against the bolt head and nuts), unless
otherwise stated.
2. Preliminary assembly is hand tightening of all bolts and nuts and hand tightening with the
wrench for complete assembly.
3. Some spare parts have been pre-assembled by the factory.
4. It is strongly recommended this machine to be assembled by two or more people to avoid
possible injury.

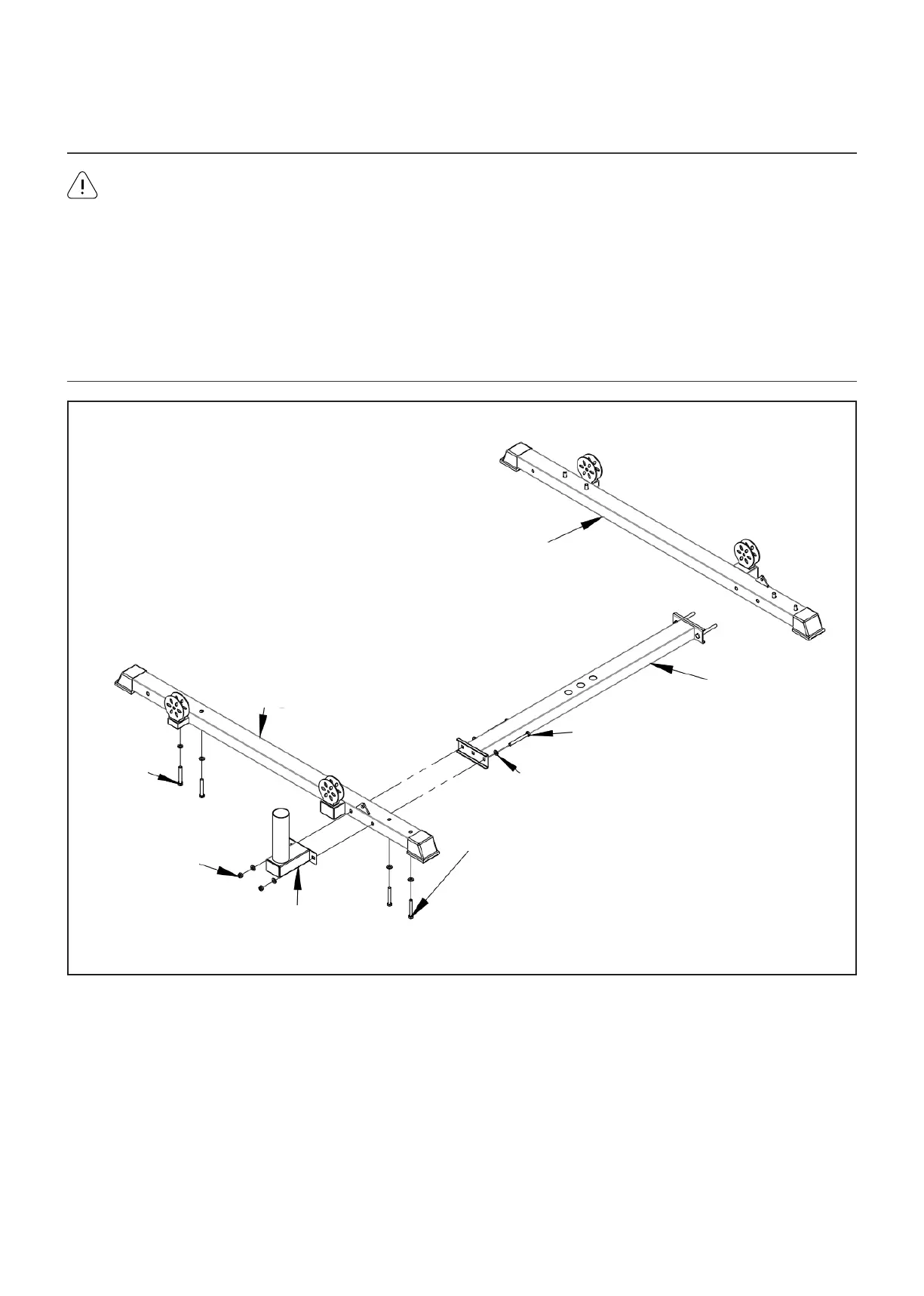

1. Insert the bolts (#59), flat spacers (#63) onto (#3 and #2) as shown.
2. Install (#2) to (#1) as shown and secure with bolts (#60), flat spacers (#63) and nut (#64).
3. Install (#3) to (#1) as shown, on the other side (#3) and secure with bolts (#60), flat spacers (#63)
and nut (#64).
STEP 1
2
1
60
63
59
4
64
59
3
To Next Page
