Black
handle
Knob
"U"ring
Figure 6 Figure 7
Figure 5

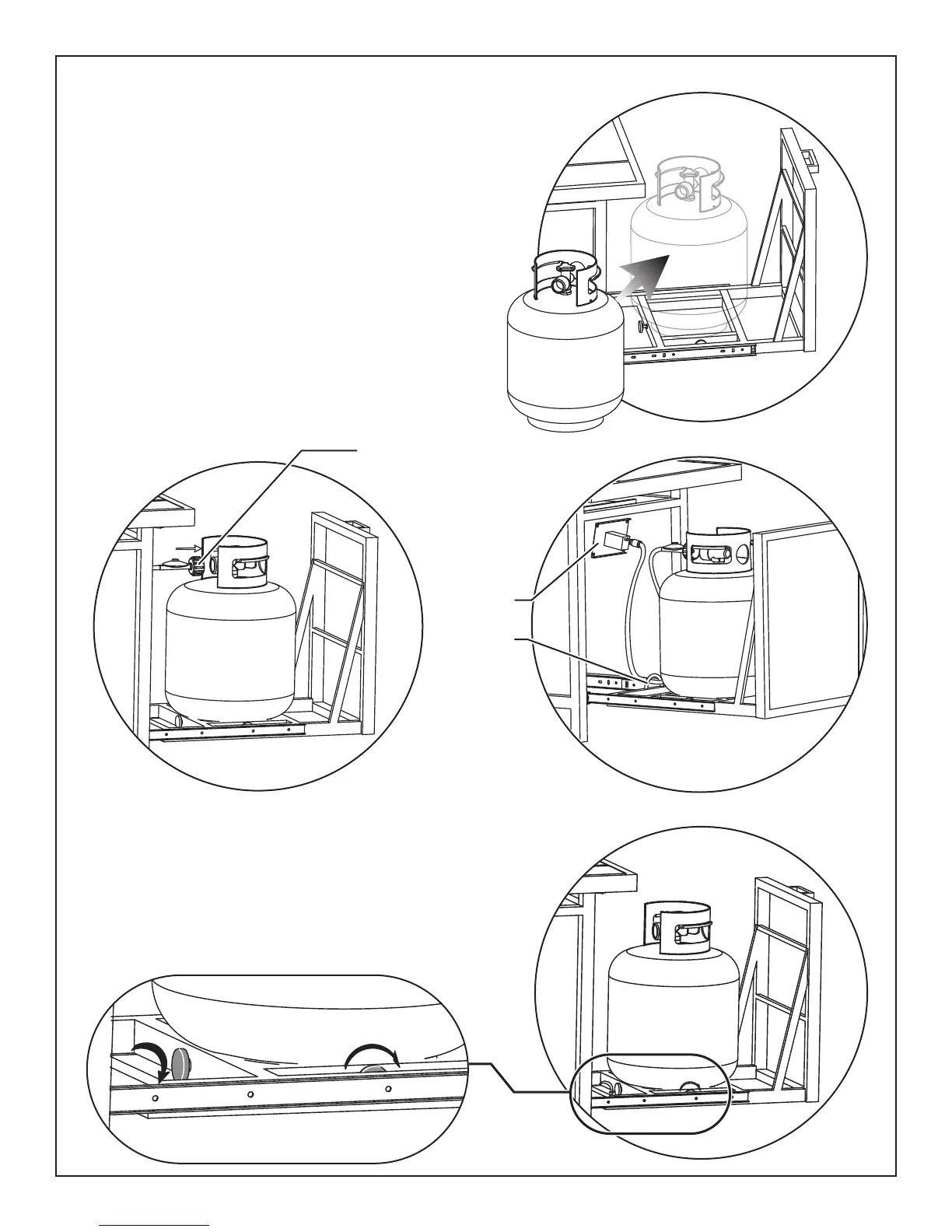

4. Open the door, place the gas cylinder into the cylinder holder,
(see Figure 5). Connect the regulator, screw the black handle
clockwise to tighten, turn the black handle counterclockwise
to remove, (see Figure 6). The hose must point down.
The knob on the control panel is turned all the way to the "OFF"
position when the fire pit is NOT in use. Make sure the hose is
routed through the two "U" ring to prevent the hose
from coming in touch with the burner or the ground.
DO NOT remove the hose from the "U" ring (see Figure 7).
5. Secure the cylinder by tightening clockwise the
Adjusting screw found on the cylinder holder
(see Figure 8), so than the cylinder cannot move
from side to side or fall down.
Figure 8
5
To Next Page
