- 13 -
Turntable locks while mounting/removing tire.
B) Reas. Belt loose.
C) Disp. Adjust belt tension.
3)
A) Situ. Jaws slow to open/close.
B) Reas. Silencer clogged.
C) Disp. Clean or replace silencer.
4)
A) Situ. Turntable does not lock the wheel rim correctly.
B) Reas. a) Jaws worn. b) Defective piston
C) Disp. a) Replace jaws. b) Replace plate cylinder gasket.
5)
A) Situ. Tool touches the wheel rim during tire mounting/demounting process.
B) Reas. a) Locking slide incorrectly adjusted or defective.
b) Locking slide screw loose.
C) Disp. a) Adjust or replace locking slide.
b) Tighten screw.
6)
A) Situ. Bead Breaker Pedal and Jaw clamp pedal lock out of position.
B) Reas. Return spring of the pedal broken.
C) Disp. Replace spring.
7)
A) Situ. Bead breaking operation difficult or fail.
B) Reas.
a) The stop bolt incorrectly adjusted.
b) Silencer clogged.
c) Value shaft O-ring broken.
d) Cylinder piston V-seal or O-ring broken.
C) Disp.
a) Adjust the height of the stop bolt.

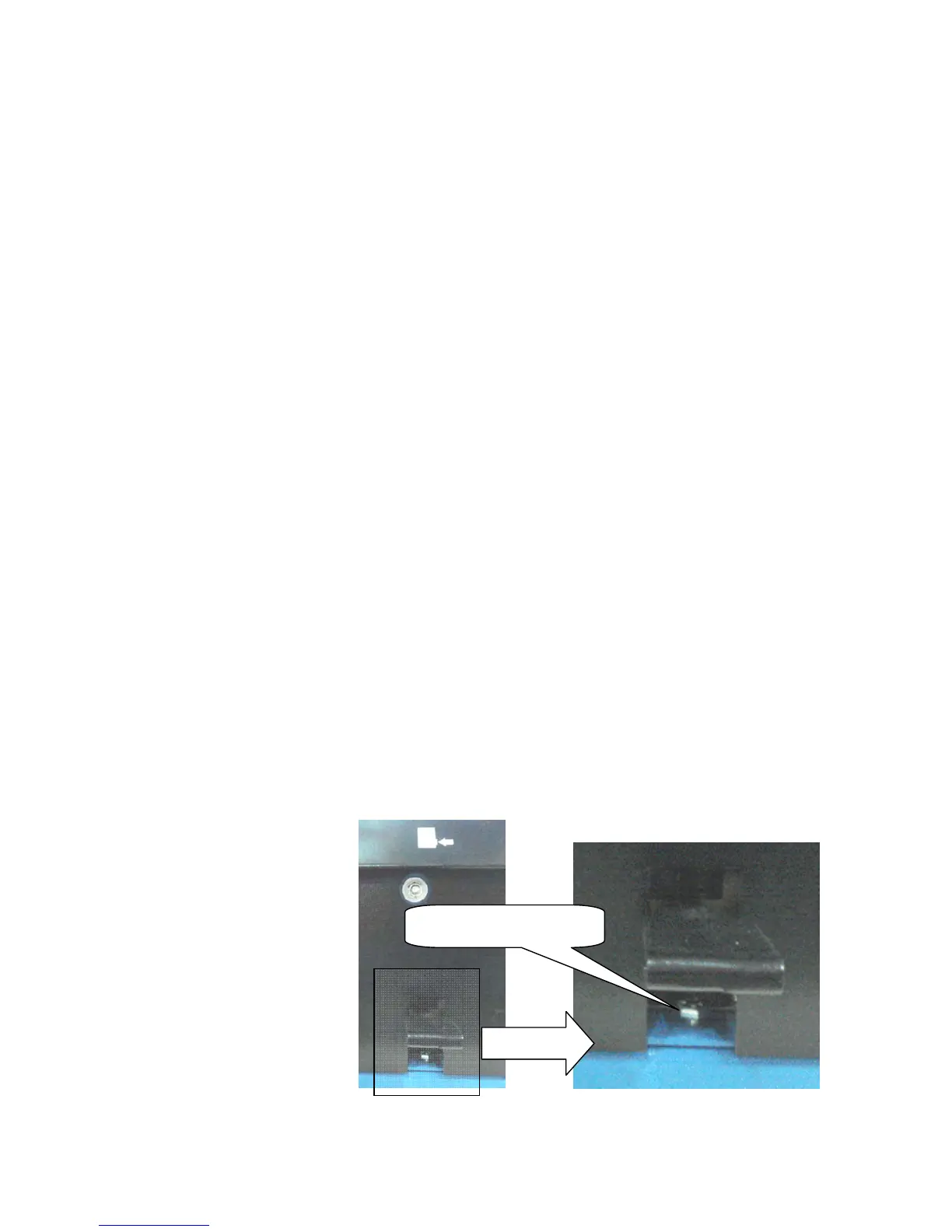

(The stop bolt is under the bead breaker pedal like the picture.)
b) Clean or replace silencer.
c) Replace O-ring.
d) Replace V-seal or O-ring
This is the stop bolt.
