- 14 -

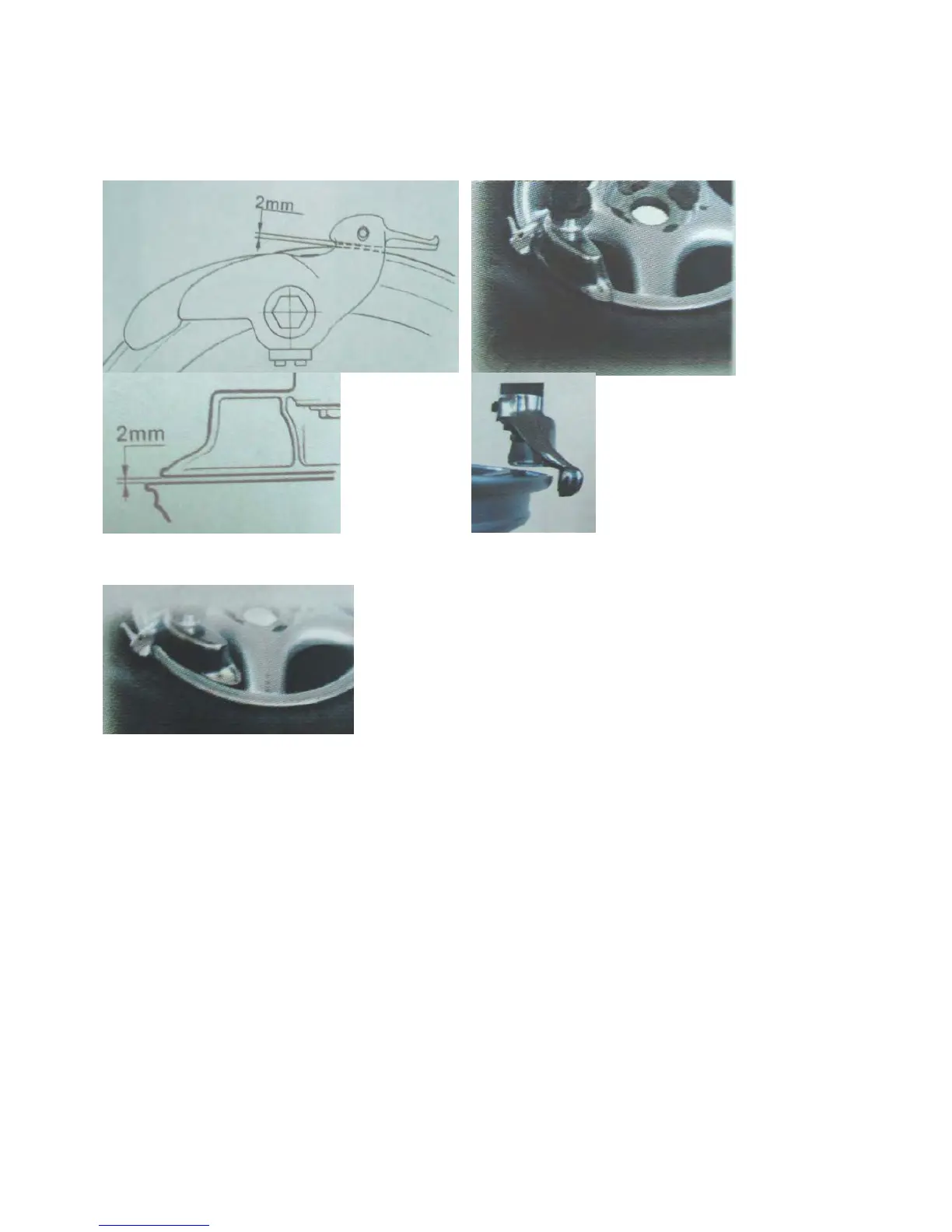

10. Mounting Head’s Angle Adjusting
The mounting head standard position
Fig. 12
The following case is not correct:
The angle setting of this mounting head for shipment is set to fit for rim size 12” to 18”. In
case application of rim size over this range, appropriate adjustment to the angle of the
mounting head or special mounting head replacement is needed.
Setting steps:
1. Lock the wheel on the turntable.
2. Lower the tools shaft (7,Fig2) until the mounting head (6,Fig2) rests next to the wheel
rim and on top of the wheel.
3. Loosen the screws (part #125, #127) of the mounting head.
4. Adjust the angle of the mounting head by hand as shown in Fig. 12.
5. Tighten the screws.
