23
INSTALL ANTI-TIP CHAIN (F965 ONLY)
5. Install the anti-tip bracket.
Wood
• Using the two screws (provided) fasten the anti-tip bracket to the
floor or wall.
NOTE: The screw must enter wood or metal.
Concrete
• Insert the sleeve anchor into the drilled holes and then insert the lag
bolts through the anti-tip bracket and into the floor or wall. The bolts
must be properly tightened as recommended for the hardware.

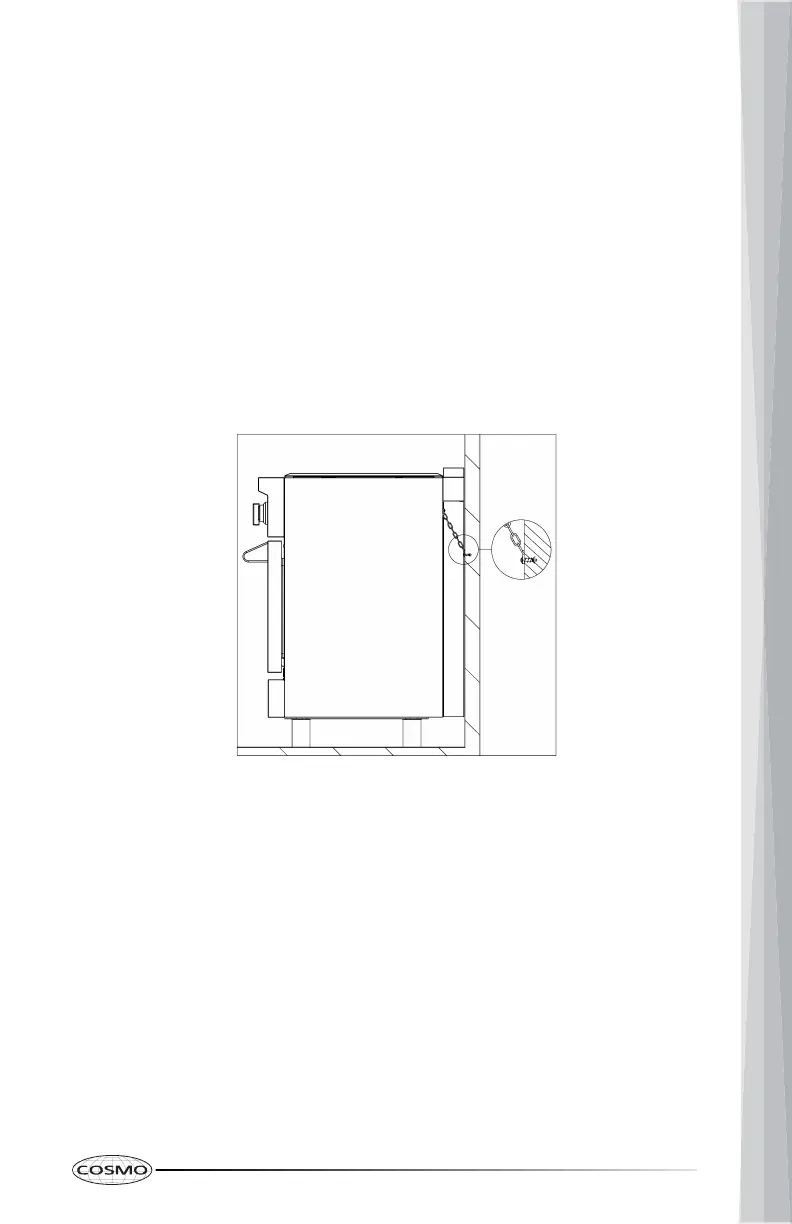

1. Remove the anti-tip wall anchor hooks and screws from the parts bag.
2. Drill an adequate hole at similar chain level in the back wall.
3. Insert and screw in the wall anchor hooks until it is firmly secured to the
wall.
4. After moving the range to its final position, connect the chain to the hook.
