15

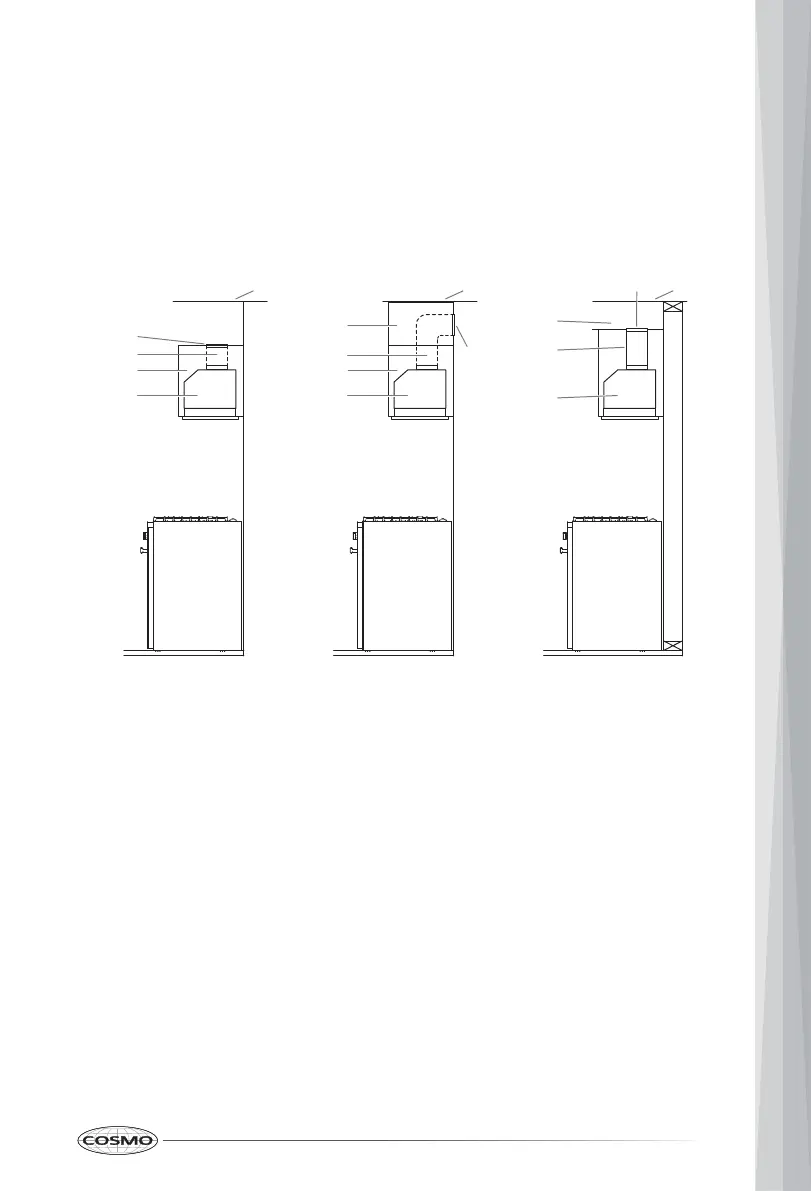

Ductless (Recirculating) Installations Through the
Soffit/Cabinet
If it is not possible to vent cooking fumes and vapors to the outside, the range
hood can be used in the ductless (recirculating) version, using a charcoal filter.
To order, see "Optional Parts" in the "Tools and Parts" section. Damper
installation is not required.
A. Ceiling
B. Duct cover
C. Soffit
D. 6" (15.2 cm) duct
E. Range hood
F. Cabinet
G. Top of cabinet
H. Ceiling or soffit
I. Duct system
I
E
G
B
H
D
E
A
B
F
C
D
F
B
A
E
