Cosmo CPH 2.0 - Control Panel and Display Functions

COSMO High-efficiency pump CPH 2.0 48
8.1.1 Control panel
The different functions of the CPH 2.0 circulation pump are selected via the control
panel in the cover of the control cabinet.
1
2
3
Luminous segments indicating the pump setting:
The pump has nine operating modes, which are selected sequentially via the key.
The selected modes are indicated by means of six luminous symbols.
Selection key for operating mode:
Each time the key is pressed, it selects the next operating mode. Therefore, a
complete selection cycle has 10 pressings.

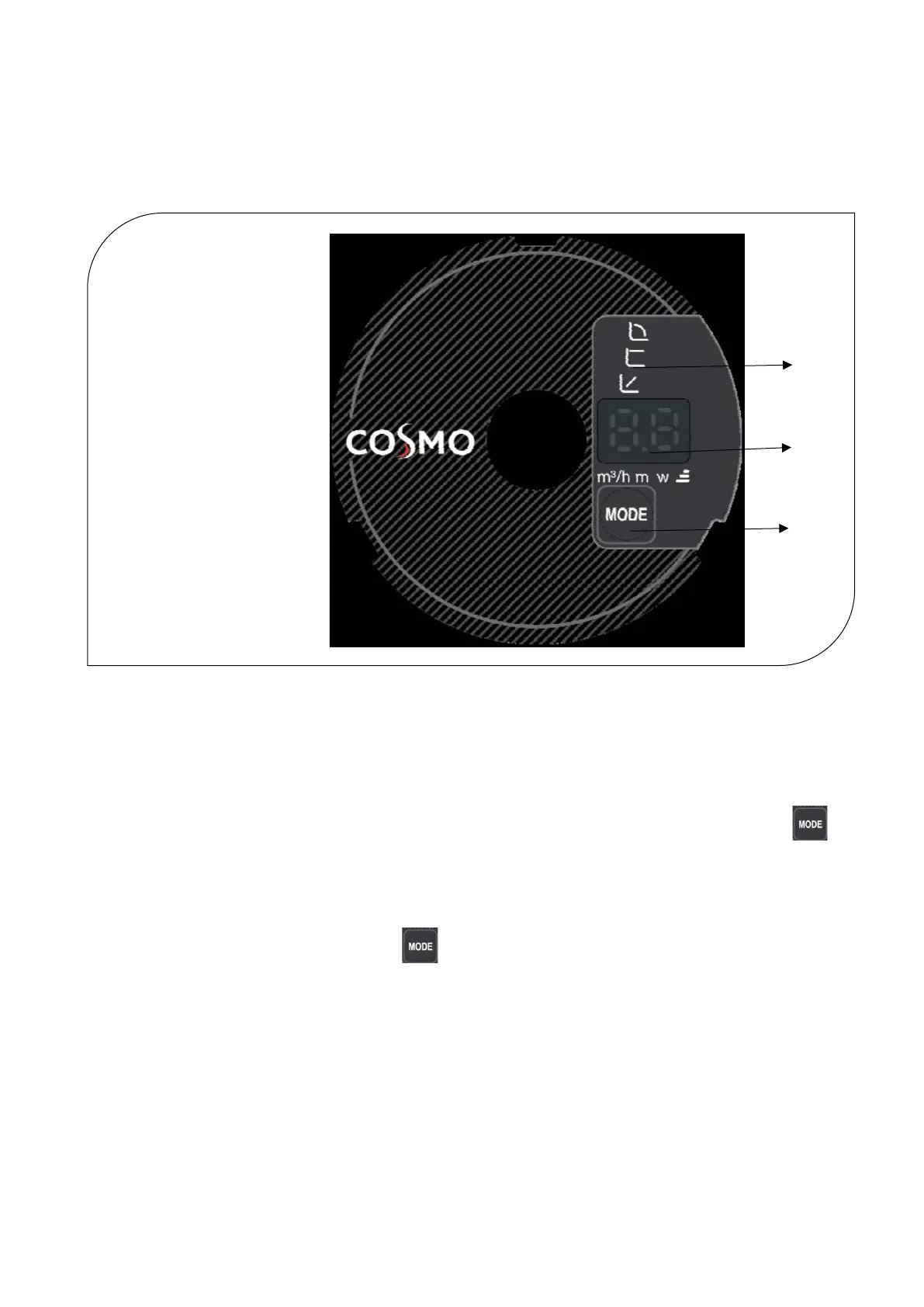

1 Luminous symbols
indicating the selected type
of curve.
2 Display of instantaneous
power consumption in
watts, flow in m3/h, head in
meters, and the selected
curve.
3 Selection key for operating
mode.
