31
Grounded Neutral

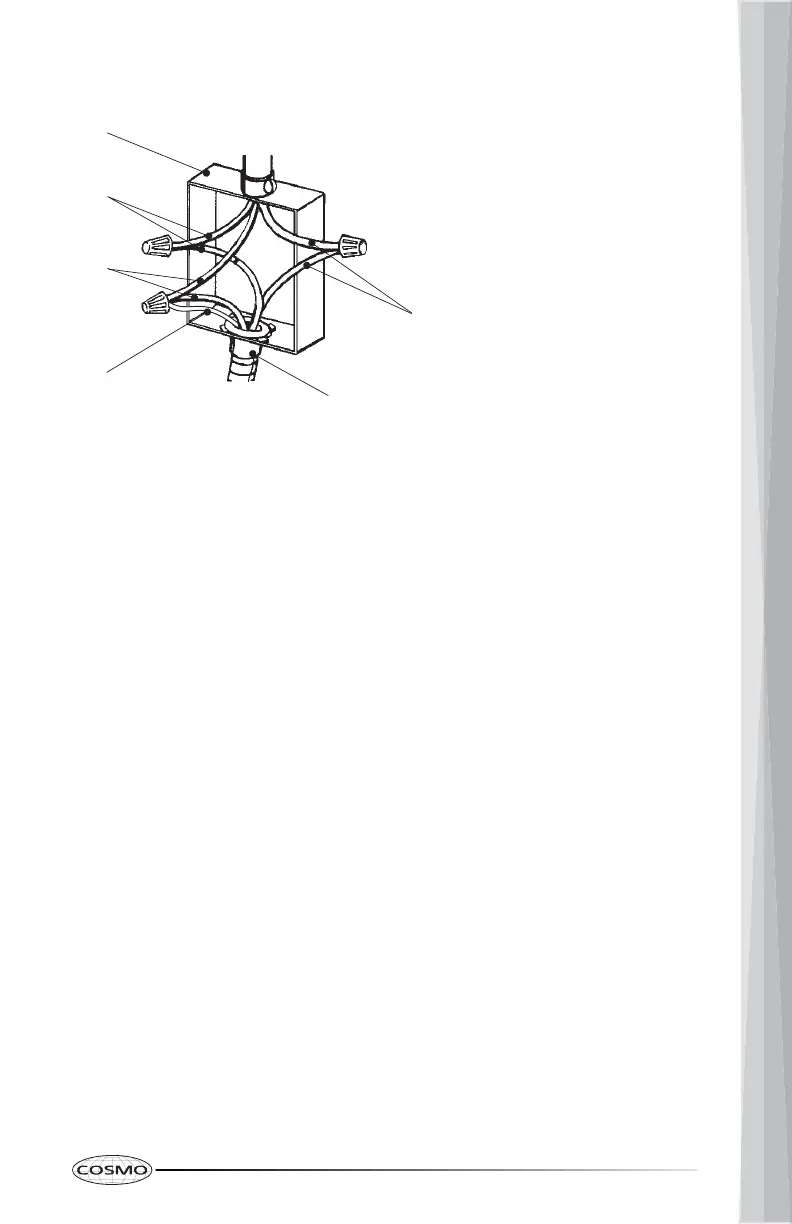

4-Wire Connection: Direct Wire
Use this method for new branch-circuit installations (1996 NEC), mobile
homes, recreational vehicles, or in an area where local codes prohibit
grounding through the neutral.
a
b
c
d
g
f
e
h
Junction Box
Red Wires
White Wires
Green Wire
Cable from Oven
UL Listed Conduit
Connector
Black Wires
Cable from Power
Supply
a
b
c
d
e
f
g
h
1. Disconnect ground from neutral at free end of conduit.
2. Connect the GROUND (green) wire from the oven to the GROUND (bare
or green) wire in the junction box.
3. Connect the red and black leads from the oven to the corresponding
leads in the junction box.
4. Connect the NEUTRAL (white) wire from the oven to the NEUTRAL (gray or
white) wire in the junction box.
