Pendular Spreader PDV-PDHV models
43
Table 09

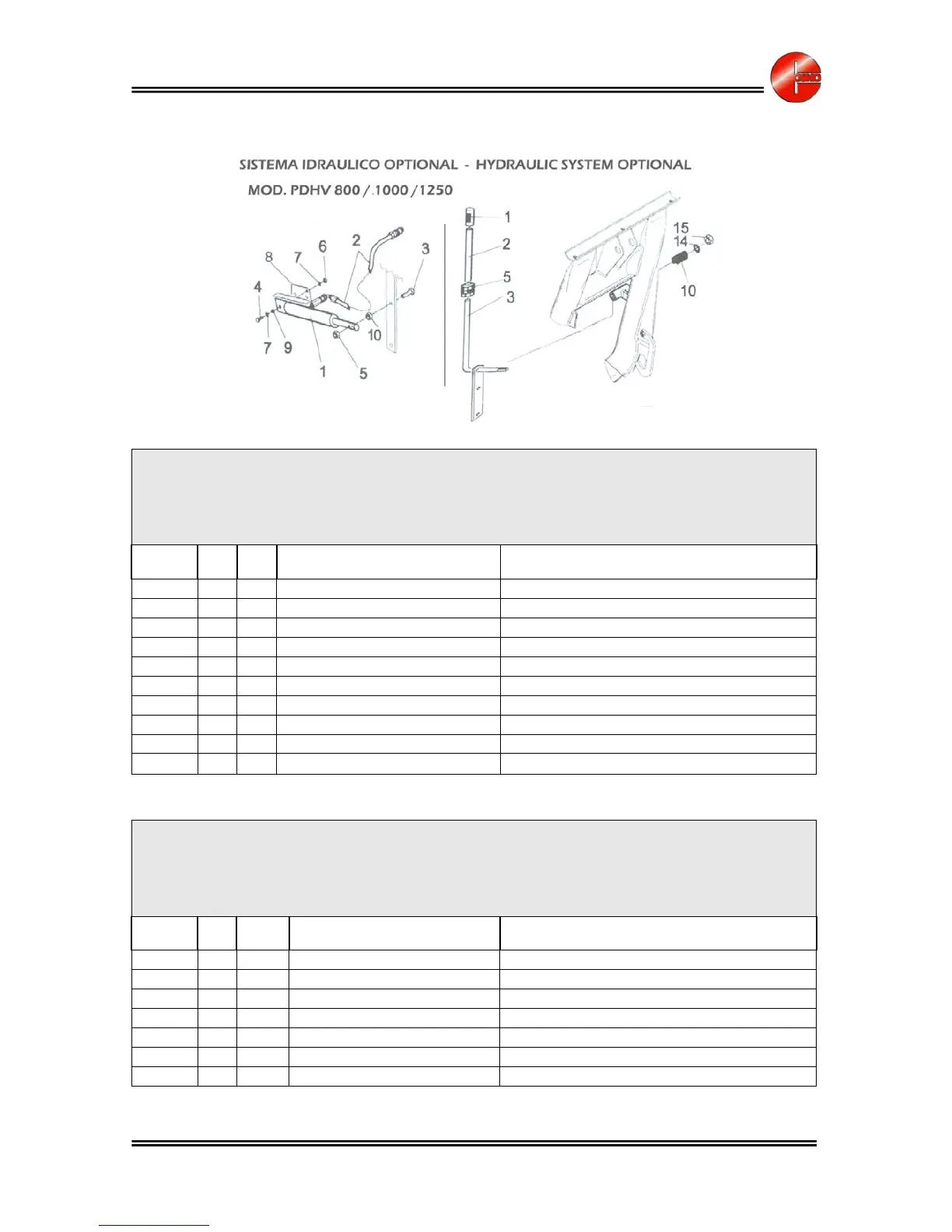

APERTURA IDRAULICA MOD. PDV 800/1000/1250
HYDRAULIC CONTROL SYSTEM MOD. PDV 800/1000/1250
CODICE 619.030
Codice
Code
QT. REF. DESCRIZIONE DESCRIPTION
623.005 1 1 Cilindro idraulico Hydraulic cylinder
304.023 1 2 Gomma idraulica Hydraulic tube
300.055 1 3 Vite TE 12x60 Screw Hexagonal-Head 12x60
300.050 1 4 Vite TE 8x25 Screw Hexagonal-Head 8x25
301.008 1 5 Dado aut.alto M12 Self locking nut M12
301.001 1 6 Dado aut.alto M8 Self locking nut M8
303.007 2 7 Rondella 8x17 Washer 8x17
606.075 1 8 Piastra att.apertura idraulica Connection plate for hydraulic opening system
325.012 1 9 Boccola 13x8x8 Bushing 13x8x8
301.000 1 10 Dado medio M12 Nut M12
LEVA COMPLETA MOD. PDV 800/1000/1250
COMPLETE LEVER MOD. PDV 800/1000/1250
CODICE 618.012
Codice
Code
QT. REF. DESCRIZIONE DESCRIPTION
304.009 1 1 Impugnatura in gomma Rubber handle
635.008 1 2 Tubo diam. est.20 prolunga leva
Lever extension
602.019 1 3 Tondino leva pdv600 con lama Tie rod lever with blade pdv600 model
804.001 1 5 Guaina pvc Pvc sheath
617.003 1 10 Molla leva pdn Spring for lever
303.021 1 14 Rondella piana 16x3x30 Washer 16x3x30
301.018 1 15 Dado aut.alto M16 Self locking nut M16
