2
2

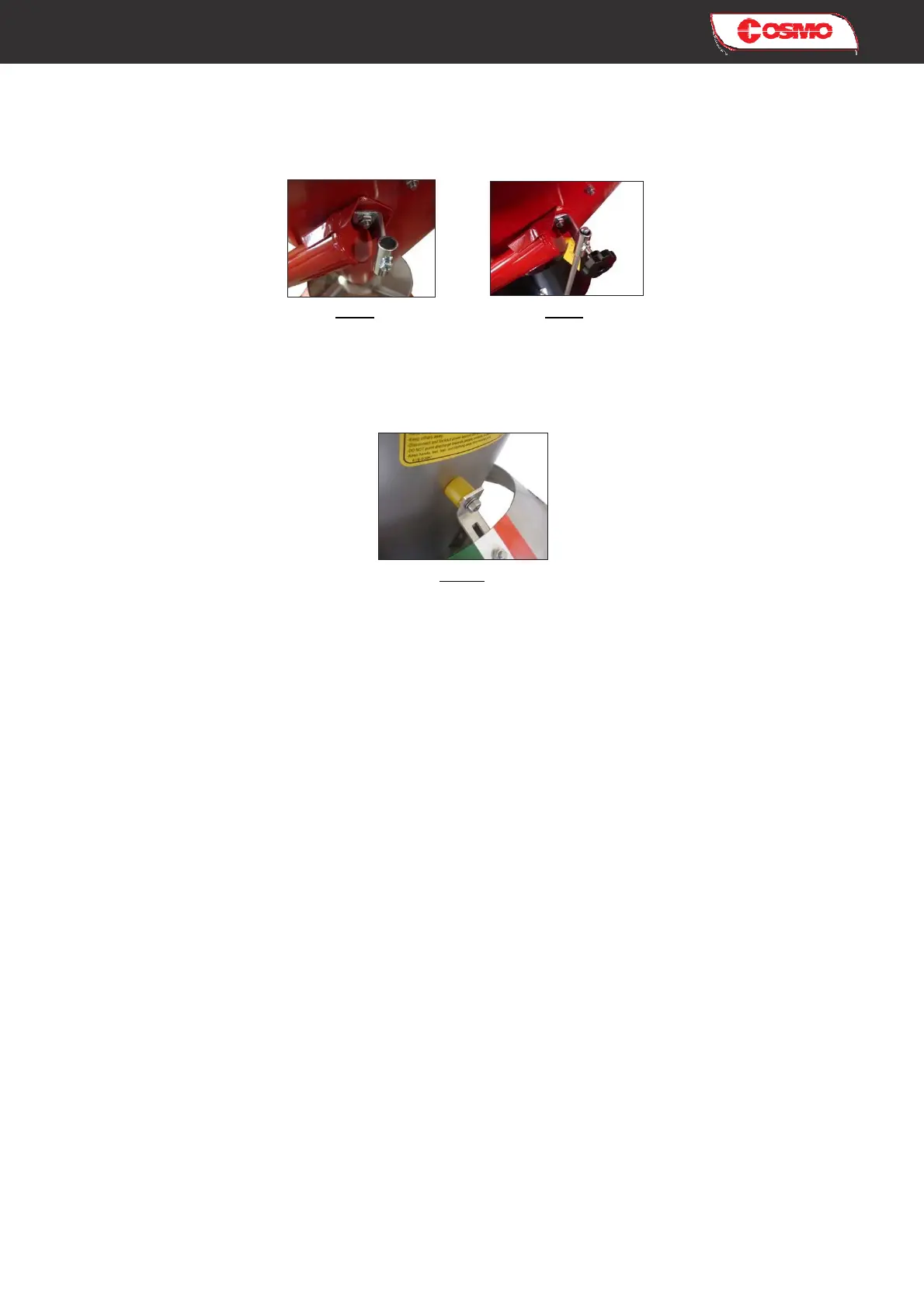

As soon as the parts these parts are assembled, fix the brackets (rif. 11 e 12) on the frame, by screws and
nuts (pict 3).
Insert the rods into the supports and adjust the desired height with the knobs (rif. 1) (pict 4).
PICT
3
PICT
4
Now, once the limiter position has been chosen, adjust the bracket (rif. 9) in a way that the anti-vibration
mount (rif. 5) makes complete contact on the surface of the hopper (pict 5).
FOTO 5
