6. ACCESSORI PER MODELLI P-PL-PX-PS
6.1. SALT SPREADING LIMITER

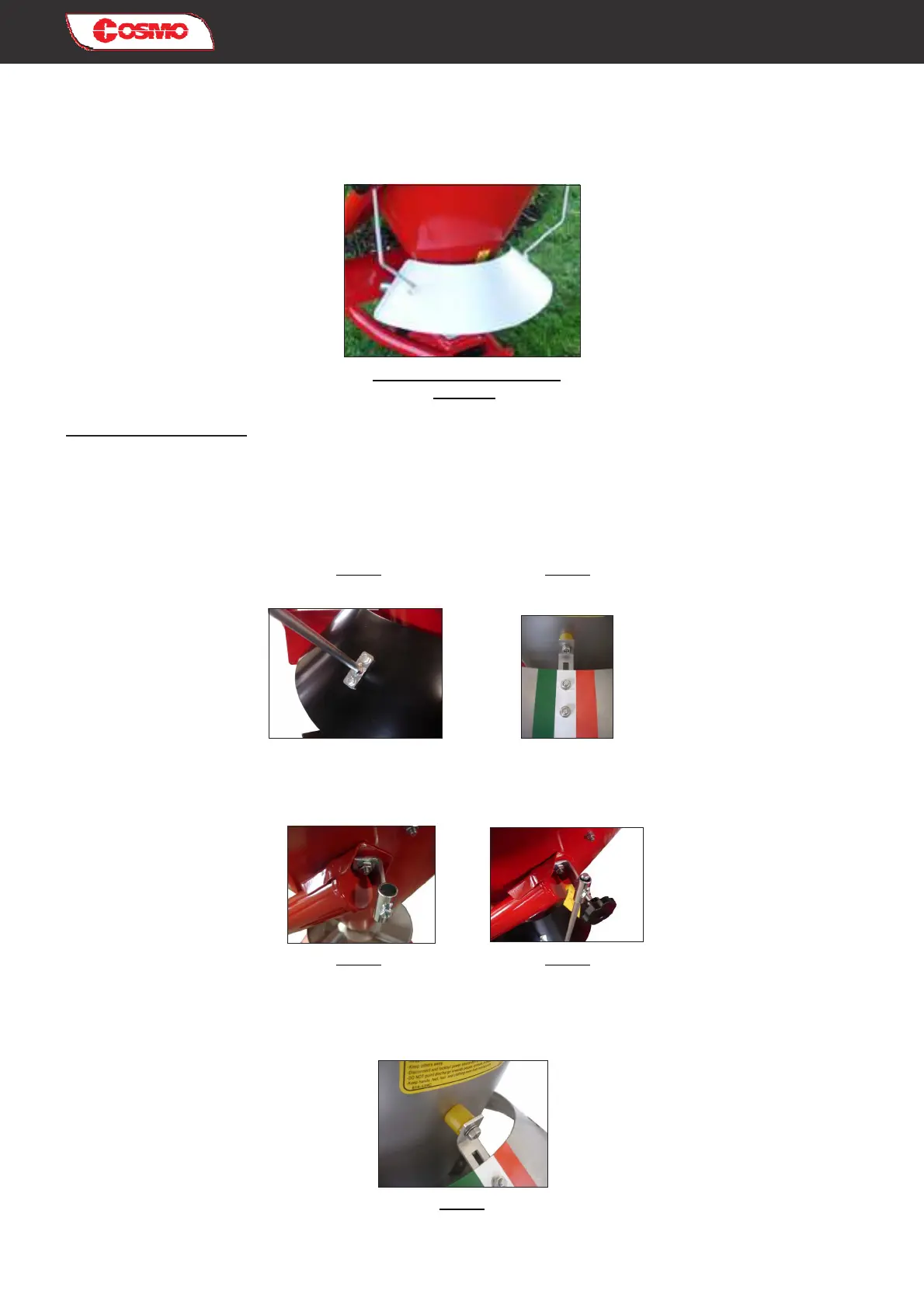

STANDARD SPREADING
LIMITER
Assembling Instructions
First you have to attach the two rods (ref. 10) on the limiter (ref. 8) using
the screws and nuts (ref. 7-6) (pict. 1).
Then, install the shock-absorber (ref. 5) on the bracket (ref. 9) using the washer and nut (ref. 2-3);
so, you can assemble the lever on the limiter (pict.
FOTO 1
FOTO 2
Now you can assemble the bracket (ref. 11 e 12) on the frame using the screws
and bolts on it(pict.3).
Put the rods into the brackets and set the height up using the knob (ref. 1) (pict. 4).
FOTO 3
FOTO 4
To finish the assembling you have to set the bracket up (ref. 9) in order that,
when the limiter is in the right position, the shock-absorber (ref. 5) has to stick
on the hopper (pict. 5).
FOTO 5
