Costco Vitis - Step 7: Assemble Upper Lintels

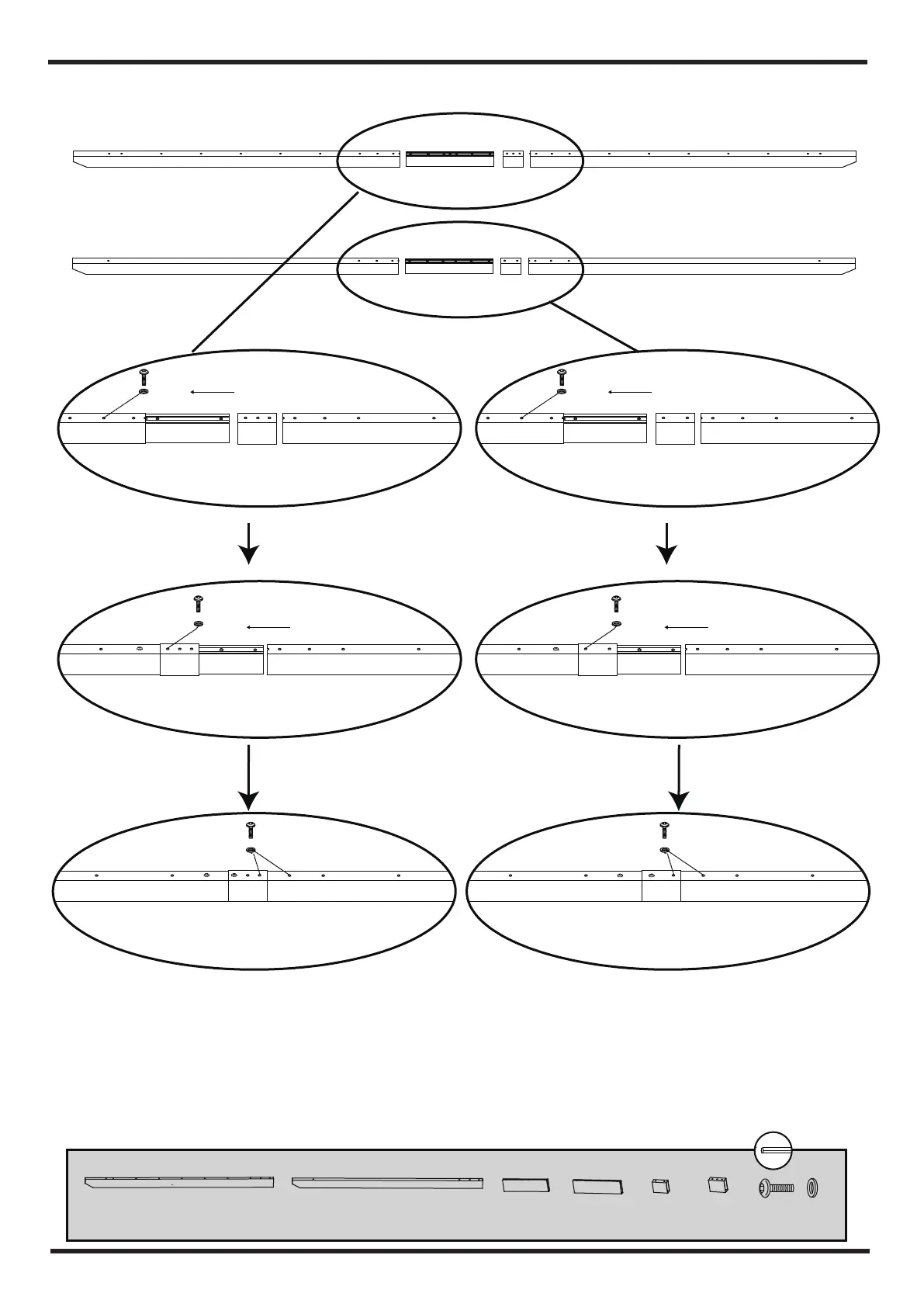

7.1 Connect the two Upper Lintel (D1) with the Shield (L1) by the Connector (J1) and
Shield (L1), and tighten them with Bolt (AA). See Fig.8
7.2 Connect the two Upper Lintel (D2) with the Shield (L1) by the connector (J1) and
Shield (
L1), and tighten them with Bolt (AA). See Fig.9
D1
J1
L1
D1
D2
J
L
D2
AA
D1
J1
L1
D1
AA
D1
L1
J1
D1
AA
D2 J
L
D2
AA
AA
AA
D2
L
J
D2
D1 L1 D1/D2
D1/D2 L D1/D2
Step 7
Fig.8
Fig.9
AA*52
D1*6 D2*20 J*10 J1*3 L*10 L1*3
-11-
