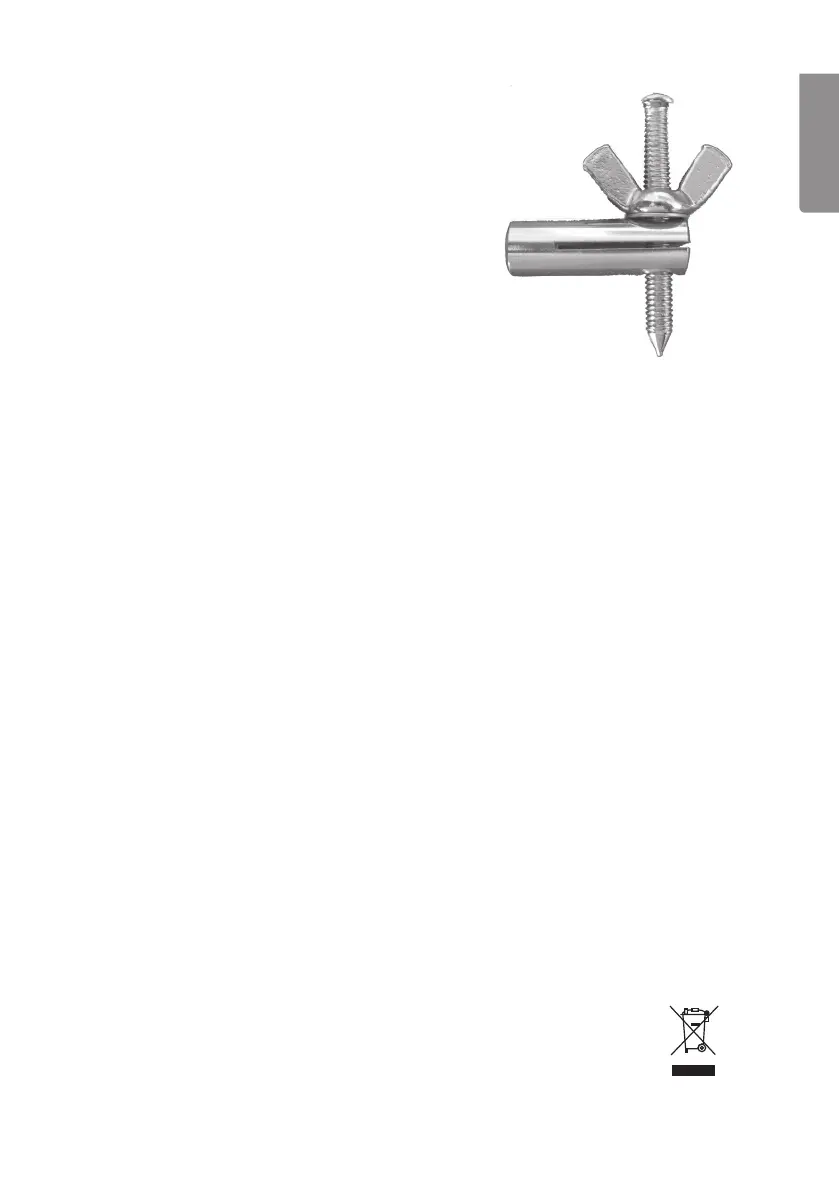

6.2 Hole Cutting Attachment
The router can be used to cut arcs and circles
using the hole cutting attachment.
1. Dril a hole in the centre of the circle that is
to be removed.
2. Remove the parallel guide, but leave
one of the guide rods.
3. Attach the hole cutting attachment to the
end of the guide rod.
4. Set the correct radius for the circle.
5. Tighten the guide rod locking knob.
6. Stick the point of the hole cutting attachment
into the centre hole.
7. With the on/off switch set to OFF, move the router around the circle to check if
it is the right size and make any adjustments.
8. Cut the circle in several stages, lowering the cutter approx. 2 mm on each
circuit. Do not try to cut too deep a slot in one go!
7. Changing the Carbon Brushes
The brushes wear out and need checking regularly.
1. Make sure that the router is not plugged in.
2. Unscrew the caps (15) on both sides of the motor.
3. Remove the carbon brushes by carefully pulling the protruding springs.
4. If any of the brushes is shorter than 6 mm both need to be changed. Contact
our Customer Service Department if you need help.
Note: After cutting for a long time at low speed the motor should be run at
maximum speed for about 3 minutes to cool it down.
8. Technical Spesifications
Model: CT2801-UK / CT2801
Rated Voltage: 230 V AC, 50 Hz
Rated Power: 2100 Watts
No-Load Speed: 8 000-23 000 rpm
Max. Cutting Depth: 60 mm
Collets: 6, 8 and 12 mm
Vibration Under Load: 4.7 m/s²
Sound Level: LpA 83 dB (A), LwA 94 dB (A)
Weight: 6.4 kg
9. Disposal
Follow local ordinances when disposing of this product. If you are
unsure about how to dispose of this product contact your municipality.
