Cotech DB7404 - Installation

6
ENGLISH
Installation
Contents
• Snow blower
• Chute with lock ring
• Spark plug spanner
• 2 ignition/safety keys
• Instruction manual

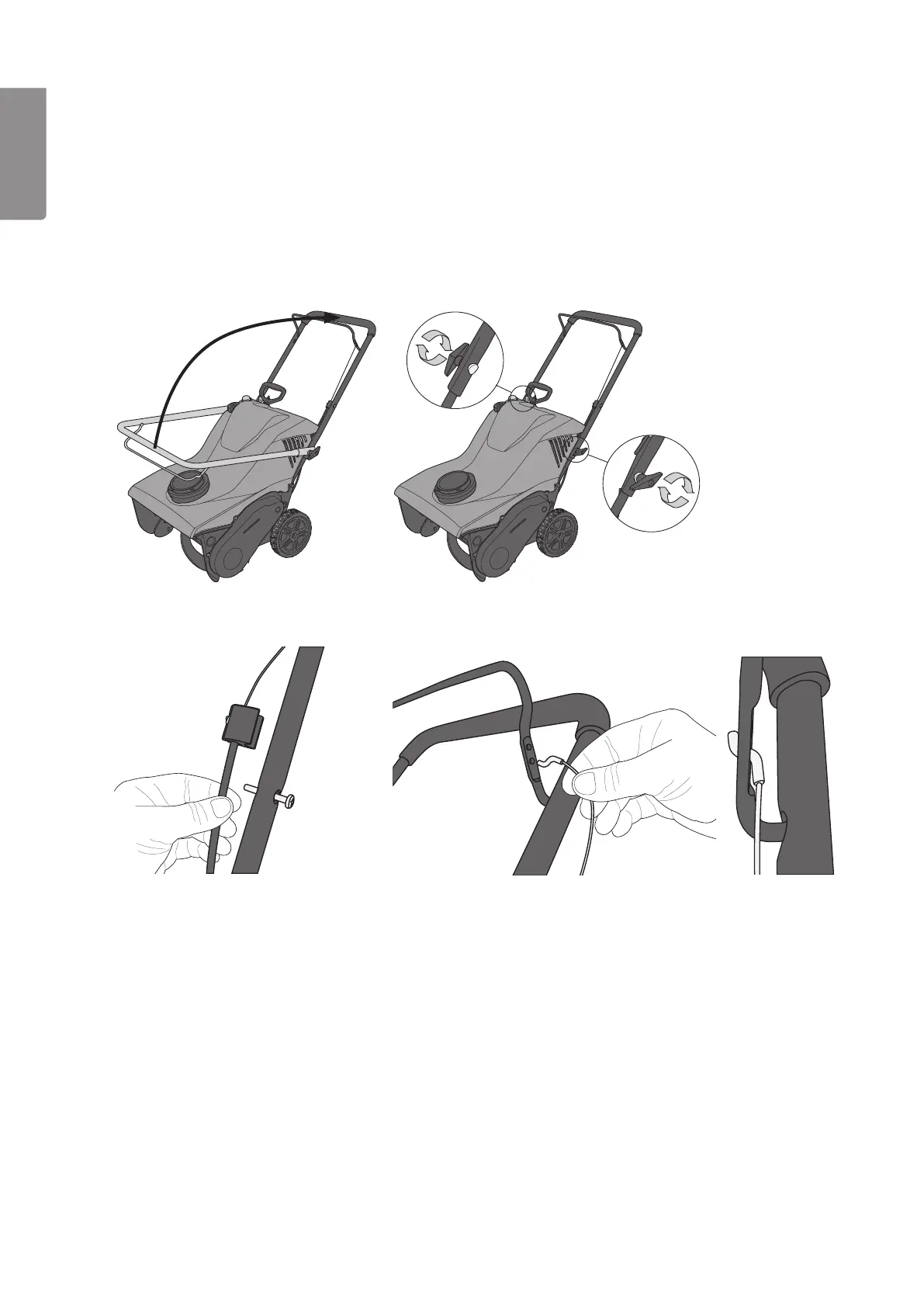

Feed screw clutch lever and wire
1. Pull up thehandle and tighten thetwo wing nuts.
2. Remove thewire bracket
on thehandle and pull up
thewire sleeve alittle to make
it easier to attach thewire to
theclutchlever.
3. Connect thewire to thebottom hole in theclutch lever.
Screw thewire bracket back on.
