COUGAR AIRFACE - Assembly Drawing Components; Front and Side Panel Components; Top, Bottom, and Rear Components; Drive Mounts and Cages

5
F
A
G
B
H
C
I
D
J
E
K
L
4
G
H
I
J
K
L
A
B
C
D
E
F
Airflow front panel
金屬網孔前飾板 / 金属网孔前饰板
Quick slide dust filter
側拉式快拆防塵濾網 / 侧拉式快拆防尘滤网
2 x 120mm / 2 x 140mm fans for front panel
前板支援2 x 120mm / 2 x 140mm 风扇
前板支援2 x 120mm / 2 x 140mm風扇
Air filter for bottom panel
底部防塵網 / 底部防尘网
Tempered glass side panel
玻璃左側板 / 玻璃左侧板
Vertical slot covers
垂直擴充插槽 / 垂直扩充插槽
1 x 120mm / 1 x 140mm fan for rear panel
(120mm Black fan x 1 pre-installed)
背板支援1 x 120mm / 1 x 140mm 风扇
(预装120mm 黑色风扇x 1)
背板支援1 x 120mm / 1 x 140mm 風扇
(預裝120mm 黑色風扇x 1)
Air filter for top panel
上蓋防塵網 / 上盖防尘网
2 x 120mm / 2 x 140mm fans for top panel
上盖支援2 x 120mm / 2 x 140mm 风扇
上蓋支援2 x 120mm / 2 x 140mm 風扇
2.5”SSD tray
2.5” SSD托盤 / 2.5” SSD托盘
Right side panel
右側板 / 右侧板
3.5”HDD cage
3.5” HDD 硬碟槽 / 3.5” HDD硬盘槽

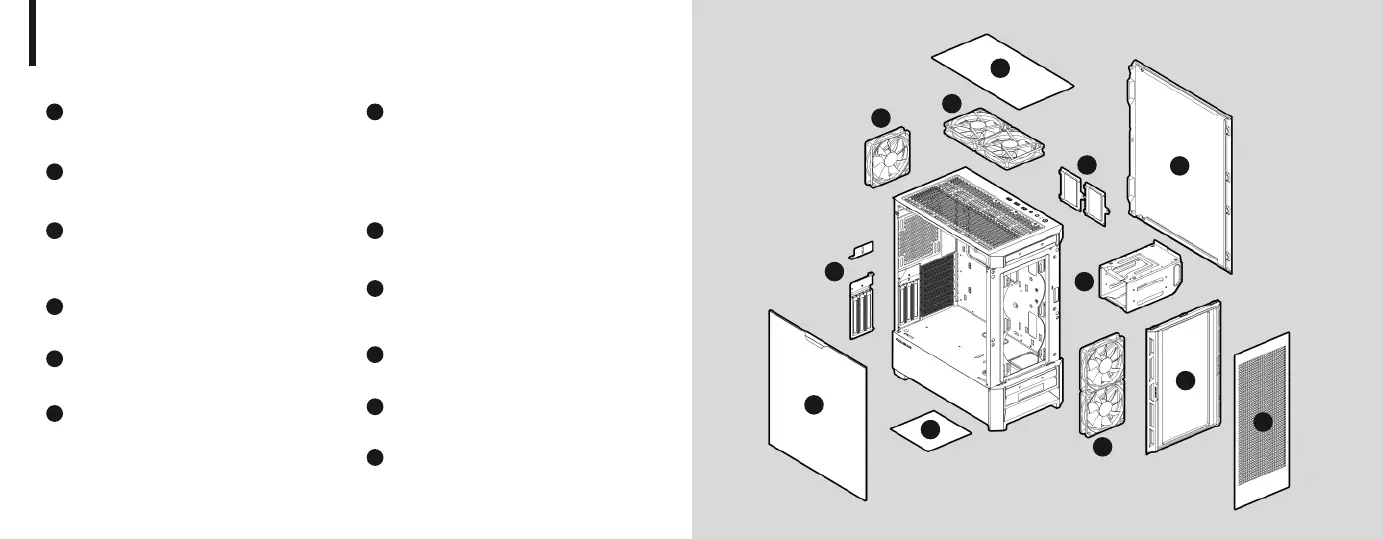

ASSEMBLY DRAWING
爆炸圖 / 爆炸图
