COUGAR FV150 - Page 11

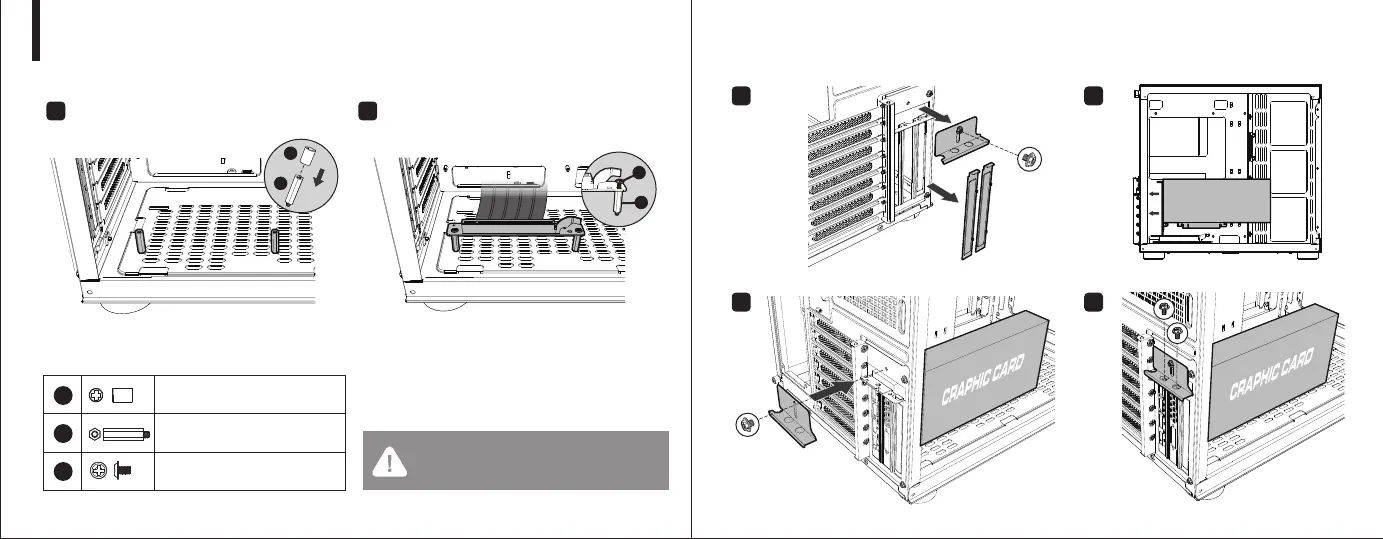

INSTALLING VERTICAL GRAPHIC CARD
垂直显卡安装说明 , 垂直顯卡安裝說明
20
1 2
The vertical graphic card and the PCI-E riser cable are not
included in the package, please purchase separately.
显卡和 PCI-E 转接线不包含在包装内，请单独购买。
顯卡和 PCI-E 轉接線不包含在包裝內，請單獨購買。
A
Stand-off socket attachment
铜柱套筒 , 銅柱套筒
Motherboard screws and 2.5" SSD screws
主機板螺絲 / 2.5” SSD螺絲
主机板螺丝 / 2.5” SSD螺丝
Stand-off for VGA riser cable
垂直显卡排线铜柱
垂直顯卡排線銅柱
A
B
C
B
B
C
The screw pitch on the bottom panel is 122mm, please check your
PCI-E riser cable, and install the stand-off for the VGA riser cable at
the corresponding position.
底板的锁孔间距为122mm，请依照您的PCI-E转接线孔距，将垂直显卡排线铜柱
锁固在对应位置。
底板的鎖孔間距為122mm，請依照您的PCI-E轉接線孔距，將垂直顯卡排線銅柱
鎖固在對應位置。
