COUGAR FV150 - I;O线材接头, I;O線材接頭 P; Accessory Kit

10

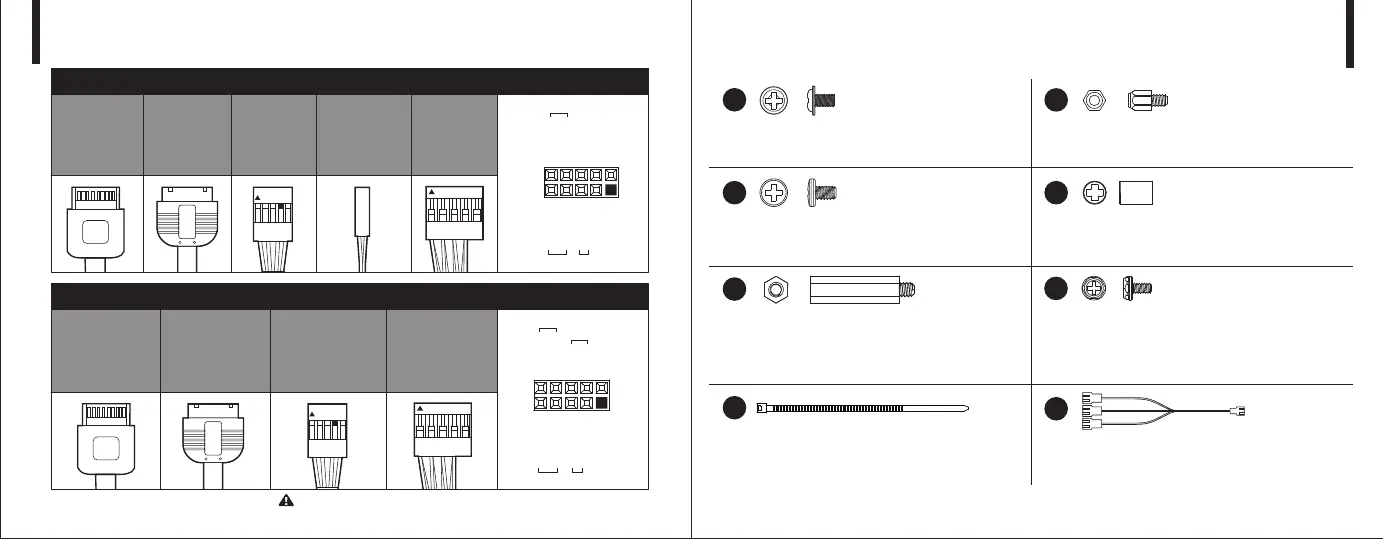

INSTALLING THE I / O CONNECTORS
I/O线材接头 , I/O線材接頭
USB 3.0TYPE C Gen 2
HD AUDIO
HD音效线
HD音效線
LED SW
RGB燈效切換線
RGB灯效切换线
F_PANEL
FV150 RGB
HD AUDIO
LED SW
USB3.0
F_PANEL
USB 3.0TYPE C Gen 2
HD AUDIO
HD音效线
HD音效線
F_PANEL
FV150
HD AUDIO
USB3.0
F_PANEL
POWER LED POWER SW
Power LED+ Power LED- Power GND
Ground Reset
RESET SW
POWER LED POWER SW
Power LED+ Power LED- Power GND
产品规格可能因销售国家或地区而异。產品規格可能因銷售國家或地區而異。
Specifications might vary depending on the country or region of sale.
HDD LED+
HDD LED-
H.D.D. LED
HDD LED+
HDD LED-
H.D.D. LED
11
ACCESSORY KIT
配件包 , 配件包
X 8
X 2
X 10
3.5" HDD screws
X 19
X 1
3.5” HDD螺丝 , 3.5” HDD螺絲
X 1
Stand-off socket attachment
铜柱套筒 , 銅柱套筒
Fan splitter cable
X 1
小3pin风扇转接线 , 小3pin風扇轉接線
Cable ties
束线带 , 束線帶
8
5
62
Motherboard screws & 2.5” SSD screws
主机板螺丝 & 2.5” SSD螺丝
主機板螺絲 & 2.5” SSD螺絲
1
X 7
Power supply screws & Graphic card screws
电源螺丝 & 显卡螺丝
電源螺絲 & 顯卡螺絲
7
3
Stand-off for VGA riser cable
垂直显卡排线铜柱
垂直顯卡排線銅柱
4
Stand-off for motherboard
主机板铜柱 , 主機板銅柱
