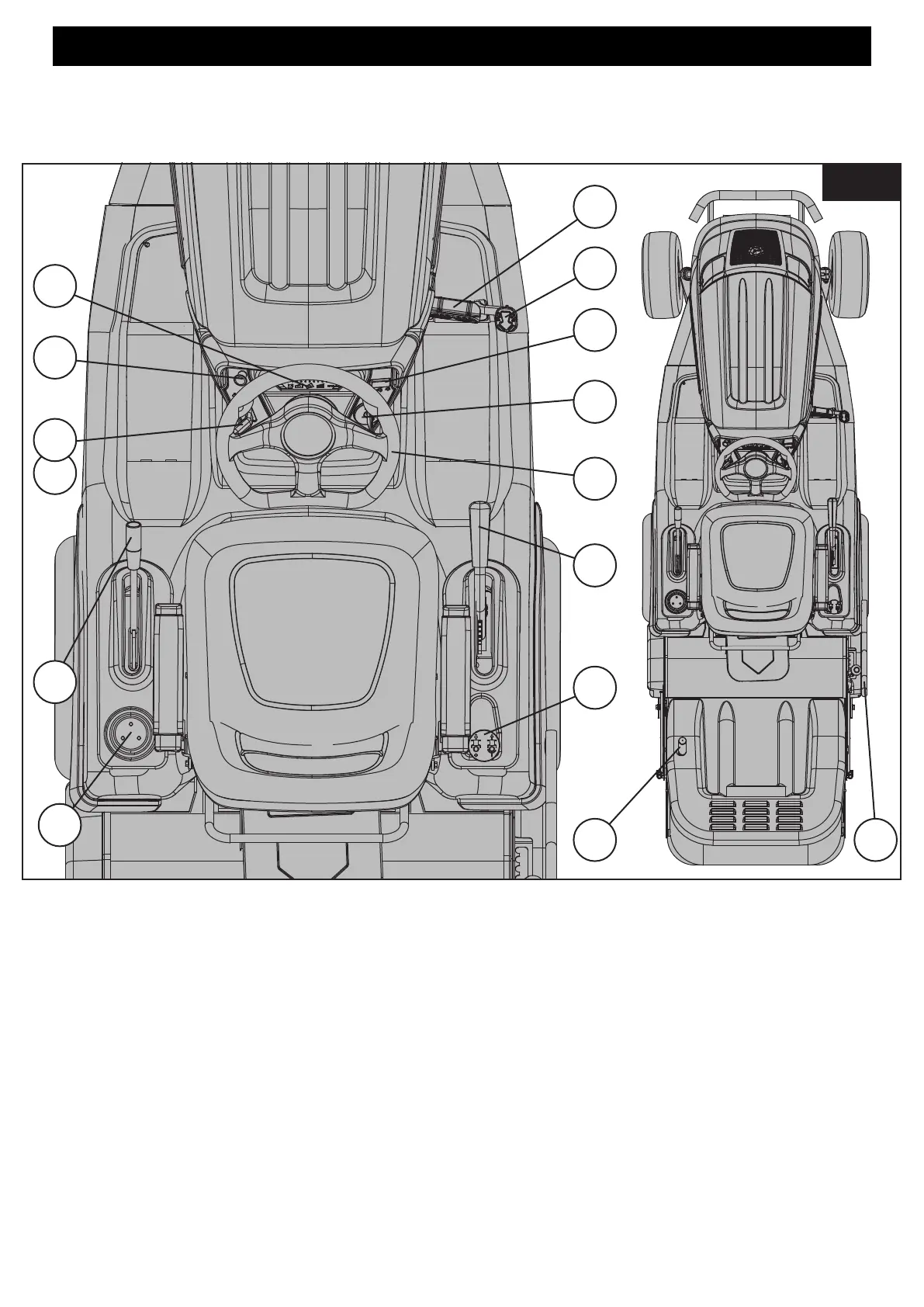

Tractor Control Layout
1 - Throttle
Use to set, increase and decrease engine input.
1a - Integrated Throttle & Choke
Used on models with automatic choke.
2 - Choke
(not used within integrated choke configuration).
3 - Parking Brake
4 - Cup Holder
5 - Central Dashboard Display
6 - PTO / Deck Engagement Configuration Switch
7 - Steering Wheel
8 - Key Ignition Switch
9 - Forward Pedal
10 - Reverse Pedal
11 - Deck Height Lever
12 - PTO / Deck ON & OFF Switch
13 - Powered Grass Collector (PGC) Tipping Handle
14 - Rear Accessory / PGC & Net Lift Handle
KNOW YOUR TRACTOR. READ THIS MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR.
Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments.
Save this manual for future reference.
