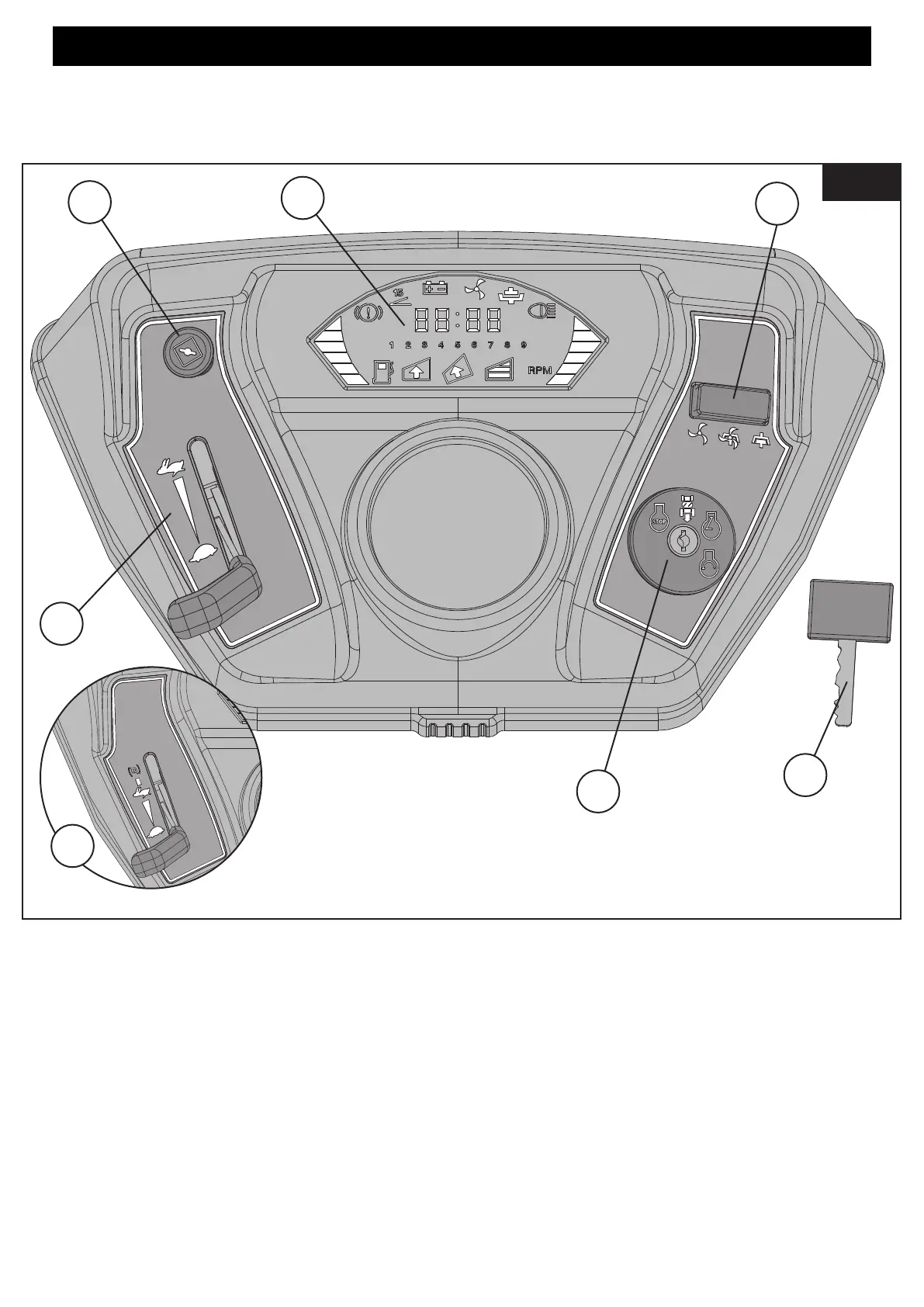

Dashboard Control Layout
1 - Throttle
Use to set, increase and decrease engine input.
Operating forward / reverse peddles while increasing
throttle accelerates tractor velocity and if engaged,
increases Powered Grass Collector pickup and cutting
blade speed.
1a - Integrated Throttle & Choke
Used on models with automatic choke. Method of use is
identical to standard throttle.
2 - Choke
(not used on integrated configuration) Use when cold
starting.
3 - PTO & Deck Cutter Configuration Switch
Use this switch to engage Deck only, PTO Only or both
together.
4 - Key Ignition Switch
Starts the engine and engages RMO system.
5 - Ignition Key
6 - Central Dashboard Display
LED lit display informs the user of the status of the
tractor. Indicators include fuel level, Parking brake
warning, Net status and slope warning (See next page
for detailed display information).
1a
KNOW YOUR DASHBOARD DISPLAY
Compare the dashboard illustrations with the tractor to familiarize yourself with the various controls and adjustments. The
dashboard display indicates the status of the tractor. Read the Dashboard Controls plus Using The Tractor sections
before attempting to use any of these controls.
1
2
6
3
4
5
Page 13
fig. 4
