Countax B MK4 Series - Cutter Deck Installation (Travel without Deck); Securing Tension Cradle for Travel

fig. 19
fig. 21
fig. 20
Page 34

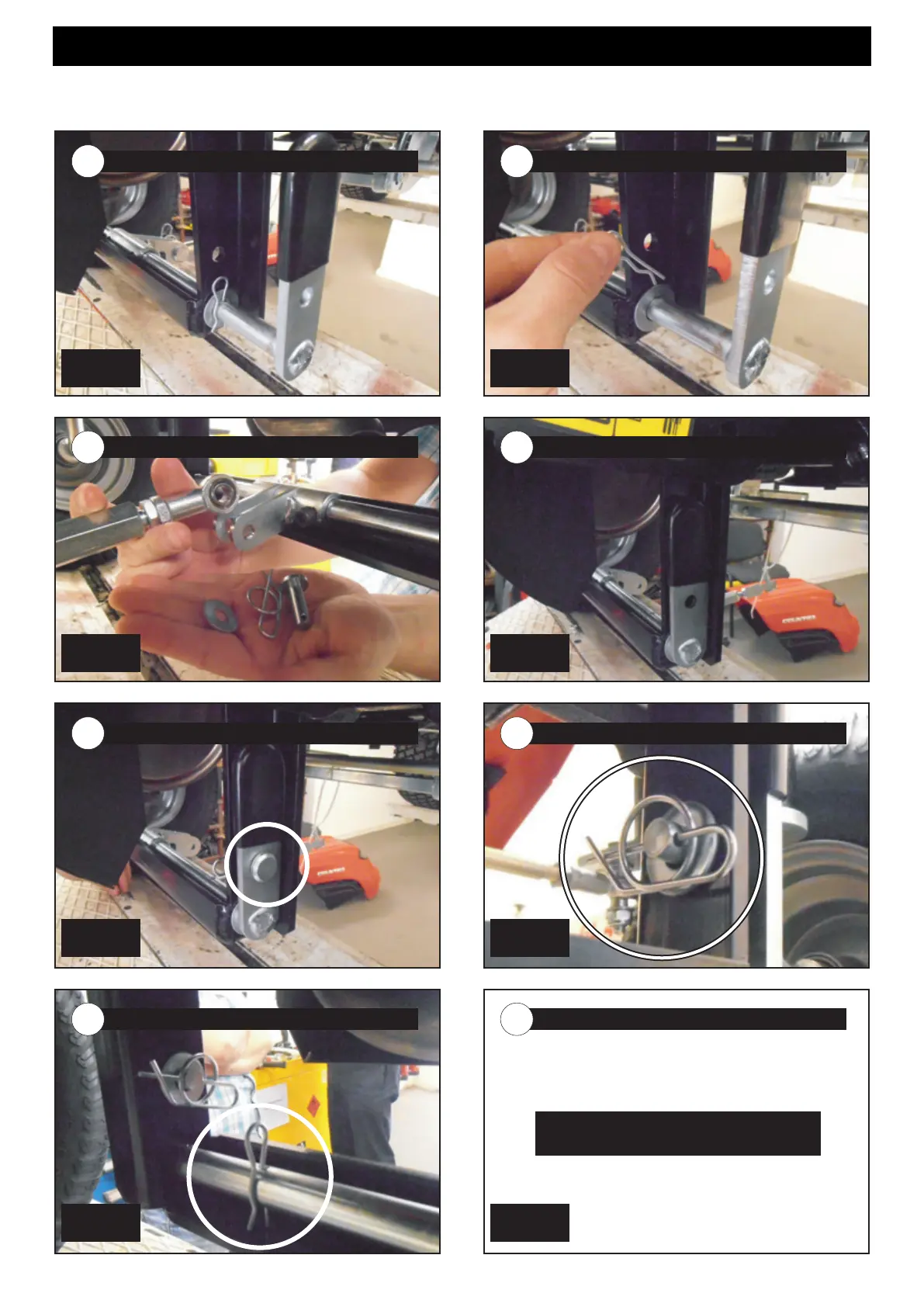

Cutter Deck Installation (Travel without Deck)
1
FULLY ASSEMBLED BRACKET SECTION START POINT
2
REMOVE PIN
3
REMOVE ROD FIXINGS
4
PUSH HANDLE INTO BRACKET
5
FIT ROD PUSH PIN INTO HANDLE SLOT
6
SECURE PUSH PIN WITH ROD FIXINGS
7
REPLACE HANDLE PIN
8
END
REVERSE PROCESS TO ASSEMBLE
The tension cradle at the front of the tractor must be secured and tension rod removed when the unit is used without a
deck. The process outlined here instructs how to secure the cradle.
fig. L fig. M
fig. N fig. O
fig. P fig. Q
fig. R fig. S
