Powered Grass Collector
Page 35
fig. 63
Net Rod
Position X
Position Y
fig. 60
Transport
Position
Collecting
Position
fig. 61
fig. 62
PGC Lift
Lever
Pivot position

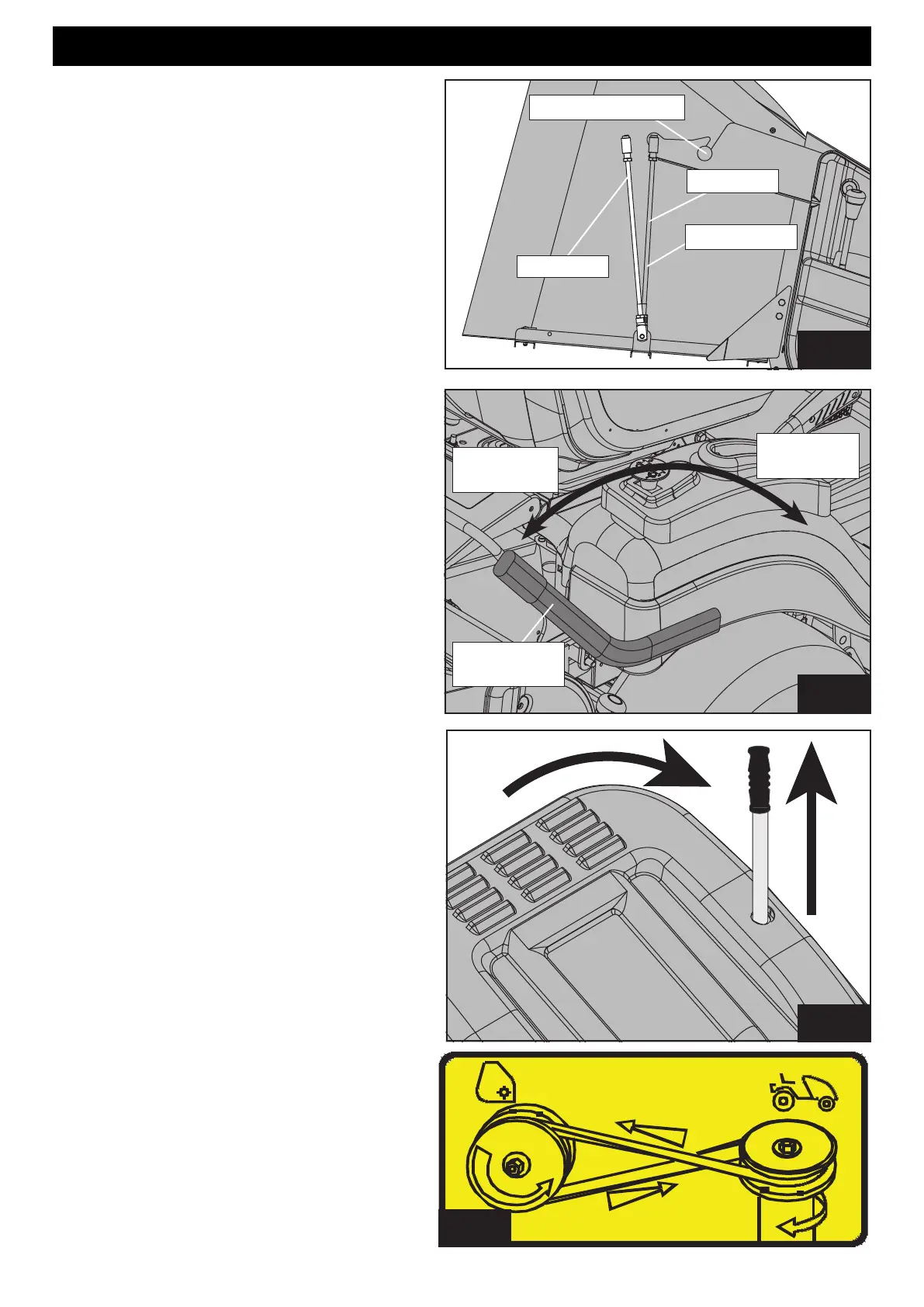

Fitting the Net (fig. 60)
Two persons maybe required to lift the net into
position. Fit as shown in g. 60. Attach both sides of
the net to the pivot position. Attach both net rods in
position ‘X’ over the ball pin.
To remove the net, release the net rod and secure
in the removal position ‘Y’. Then lift the net from the
pivot position.
PGC Lift Lever (fig. 61)
Using the lever (g. 61) raise or lower the Powered
Grass Collector to either the transport position or the
collecting position.
Tipping the Net (fig. 62)
When the collector is full, raise the collector to the
transport position. Drive to your tipping area and
reverse to the grass pile. Then extend the tipping
lever and pull it towards the seating position. This
pivots the collector and so empties the collector.
Once the grass is off-loaded return the collector to
the upright position and put the tipping lever in its
original position.
Installing the Drive Belt (fig. 63)
First turn off the engine. Place the drive belt over
the PTO pulley of the Powered Grass Collector, and
then feed it underneath the PTO ap. Then feed
around the PTO pulley. Be sure that this is installed
the right way round otherwise the brush will work in
reverse and collection will be poor. Lock the Locating
Lever over the Lift Arm Lugs (this also tightens the
PTO Drive Belt). Rotate the Locking Clips over the
Locating Lugs to securely lock the Powered Collector
in place. To disconnect, reverse this procedure.
ALWAYS CHECK BELT TENSION IS 19mm
DEFLECTION AT 2KGs PRESSURE.
Refer to page 39 for details.
